SJOOW Multi core EP rubber insulated CPE rubber jacket cable
Application：
This product is suitable for industrial equipment, heavy tools, battery chargers, mobile lighting and power extension lines.Such as outdoor lighting connection (mine lamp, buried lamp, lawn lamp, street lamp, tunnel lamp…) , LED lighting connection (LED strip lights, work lights, roof lights…) Electric appliances and all kinds of general electric tools and equipment, suitable for outdoor, oily occasions, wet, cold and strong sun occasions.
Standard:
- Cable design: UL62 Flexible Cords and Cables
- CSA C22.2 No. 49 Flexible Cords and Cables

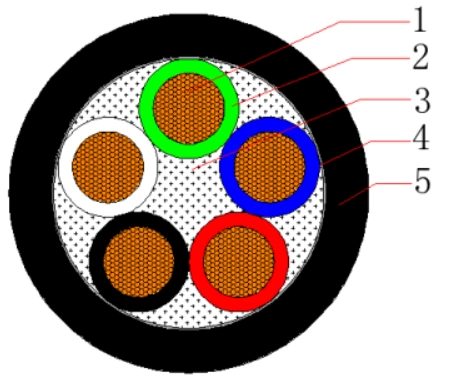

Products Construction
- Conductor – Plain flexible annealed stranded copper
- Insulation – (60℃, 75℃, 90℃)EP rubber
- Filler – Flame retardant high temperature filling rope (If need)
- Binder tape – Flame retardant tape
- Outer jacket – (60℃, 75℃, 90℃) CPE rubber
Cross Section：
- 2C18AWG~2AWG
- 3C18AWG~2AWG
- 4C18AWG~2AWG
- 5C18AWG~5AWG
Temperature characteristics:
- Conductor operating temperature: -40℃~+90℃
- Operating ambient temperature:-20℃~+80℃
Flame retardant
FT2
Electrical Characteristics:
- Rated voltage: 300V
- 18AWG~11AWG High voltage test: 2.0kV / 1min
- 10AWG High voltage test: 3.0kV / 1min
Color:
- Insulation: Black, According to customer requirements
Minimum Bending Radius：
6x Outer Ø
Technical Specification
| Cond. Size AWG | No. of Cond. | No. of Strands | Insulation Thickness (Inchs) | Insulation Thickness (mm) | Nominal OD (Inchs) | Nominal OD (mm) | Nominal Weight (Lbs/Mft) | Nominal Weight (kg/km) |
| 18 | 2 | 16/30 | 0.03 | 0.76 | 0.29 | 7.24 | 46 | 68 |
| 18 | 3 | 16/30 | 0.03 | 0.76 | 0.31 | 7.75 | 60 | 89 |
| 18 | 4 | 16/30 | 0.03 | 0.76 | 0.33 | 8.38 | 73 | 109 |
| 16 | 2 | 26/30 | 0.03 | 0.76 | 0.31 | 7.87 | 55 | 82 |
| 16 | 3 | 26/30 | 0.03 | 0.76 | 0.33 | 8.38 | 74 | 110 |
| 16 | 4 | 26/30 | 0.03 | 0.76 | 0.36 | 9.07 | 85 | 126 |
| 14 | 2 | 41/30 | 0.03 | 0.76 | 0.34 | 8.64 | 75 | 112 |
| 14 | 3 | 41/30 | 0.03 | 0.76 | 0.37 | 9.27 | 100 | 149 |
| 14 | 4 | 41/30 | 0.03 | 0.76 | 0.4 | 10.03 | 119 | 177 |
| 12* | 2 | 65/30 | 0.03 | 0.76 | 0.41 | 10.41 | 108 | 161 |
| 12* | 3 | 65/30 | 0.03 | 0.76 | 0.43 | 10.92 | 150 | 223 |
| 12* | 4 | 65/30 | 0.03 | 0.76 | 0.48 | 12.07 | 176 | 262 |
| 10* | 2 | 104/30 | 0.05 | 1.14 | 0.62 | 15.75 | 226 | 336 |
| 10* | 3 | 104/30 | 0.05 | 1.14 | 0.57 | 14.45 | 244 | 363 |
| 10* | 4 | 104/30 | 0.05 | 1.14 | 0.64 | 16.13 | 302 | 449 |
Applicable Standards
Optional
FAQ
SJOOW cable is a flexible, 300-volt portable service cord used to supply power to tools, small motors, portable equipment, and temporary setups. It is highly prized in workshops, job sites, and outdoor events for its rugged ability to resist water, oil, weather, and physical abrasion.
Yes, SJOOW cable is fully outdoor-rated. The “W” in its name specifically indicates that it is designed to be weather and water-resistant.
SJOOW cables’ “Junior” status reflects a 300-volt rating. SOOW cables, on the other hand, are rated for 600 volts, making them more suited for heavy-duty power applications. Because of the higher voltage rating, SOOW cable is typically used in industrial applications that require more power for equipment.
Yes, SJOOW cable is fully outdoor-rated. The “W” in its name specifically indicates that it is designed to be weather and water-resistant.
SJOOW is a junior service entrance cable that is resistant to oil, weather, and water. The voltage of the electrical cable is 300 volts.
The final letter, W, stands for water and weather resistance, indicating protection from the sun (UV light), ozone, weathering, and water ingress.
