H01N2-D Crosslinked elastomeric covering arc welding cable
Application：
The cables are intended for connections between the welding power source and the electrode holder and the work piece.The maximum conductor operating temperature is 85℃
Standard:
- Cable design: EN50525-3-81
- Conductor: EN 60228

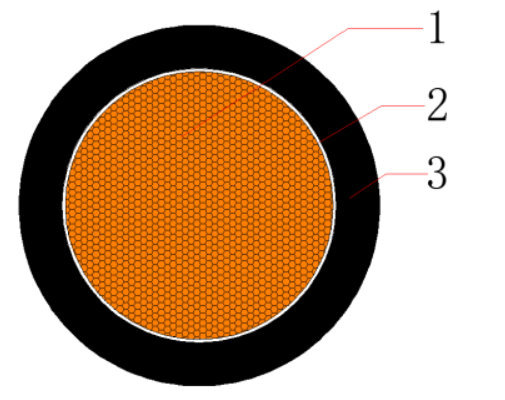

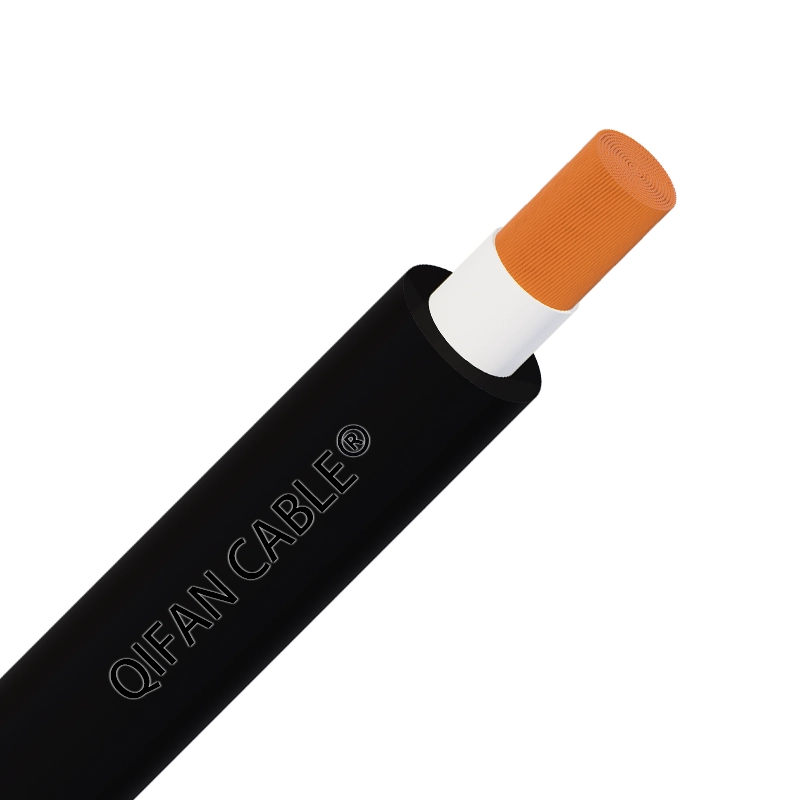

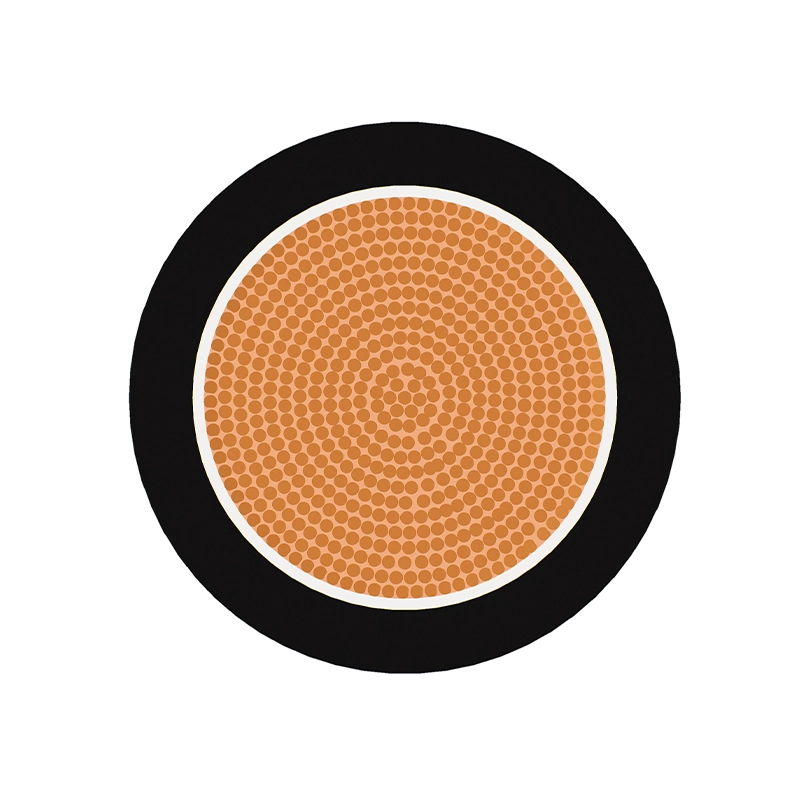

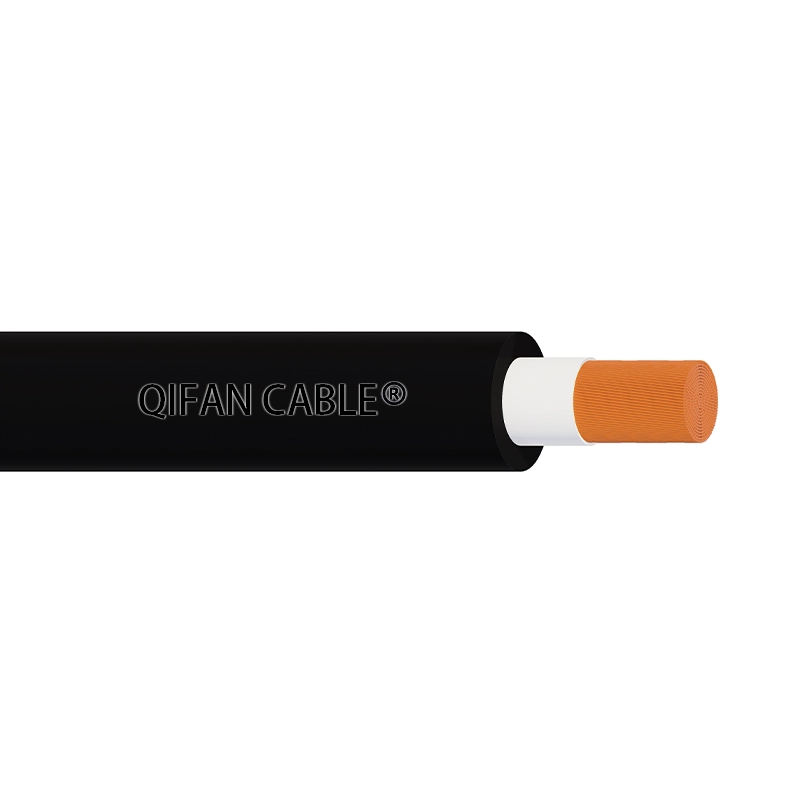

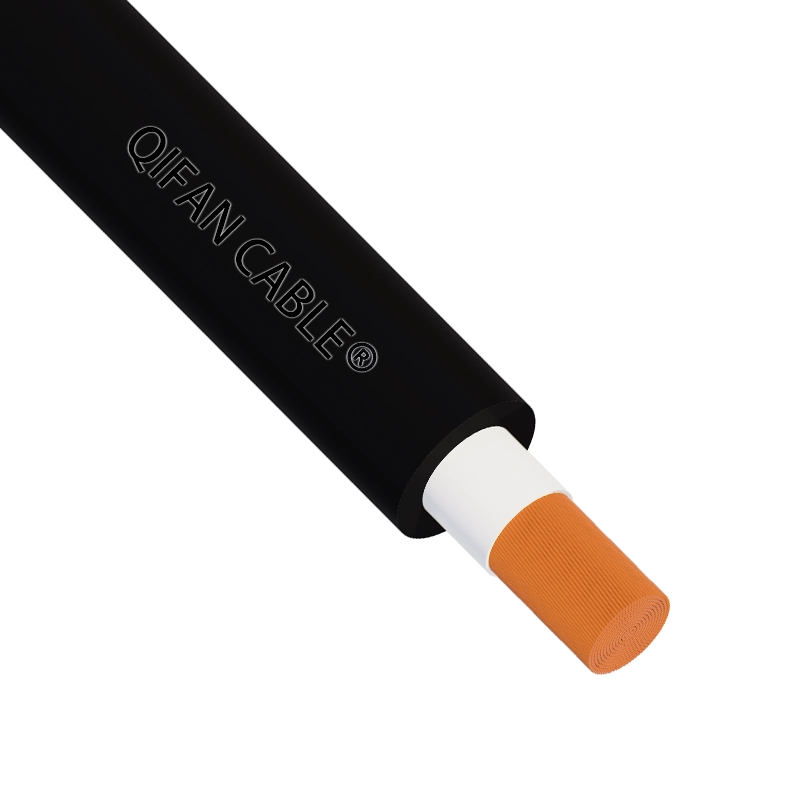

Products Construction
- Conductor – Plain flexible annealed class 5 copper
- Binder tape – Non-hygroscopic material tape
- Covering – Rubber
Cross Section：
- 1C10~240mm2
Temperature characteristics:
- Flexible: 20°C to +85°C
- Fixed: 35°C to +85°C
Electrical Characteristics:
- Rated voltage: 100/100V
- High voltage test: 1.0kV / 5min
Color:
- Insulation: According to customer requirements
Minimum Bending Radius：
6x Outer Ø
Applicable Standards
Optional
Technical Parameters
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA (mm2) | NOMINAL THICKNESS OF INSULATION (mm) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL WEIGHT (kg/km) |
| 1 | 10 | 2 | 9 | 146 |
| 1 | 16 | 2 | 10 | 204 |
| 1 | 25 | 2 | 11.5 | 290 |
| 1 | 35 | 2 | 12.5 | 384 |
| 1 | 50 | 2.2 | 14.5 | 535 |
| 1 | 70 | 2.4 | 16.5 | 716 |
| 1 | 95 | 2.6 | 18.5 | 943 |
| 1 | 120 | 2.8 | 20.5 | 1235 |
| 1 | 150 | 3 | 23 | 1556 |
| Nominal Cross Sectional Area (mm2) | Maximum Diameter of Wires in Conductor (mm) | Maximum Resistance of Conductor at 20℃ – Plain Wires (ohms/km) |
| 10 | 0.21 | 1.91 |
| 16 | 0.21 | 1.21 |
| 25 | 0.21 | 0.78 |
| 35 | 0.21 | 0.554 |
| 50 | 0.21 | 0.386 |
| 70 | 0.21 | 0.272 |
| 95 | 0.21 | 0.206 |
| 120 | 0.51 | 0.161 |
| 150 | 0.51 | 0.129 |
FAQ
H01N2-D is a harmonized, flexible, rubber jacketed welding cable. This cable is designed for the transmission of high currents from electric welding machines to the welding tool on manually or automatically operated line and spot welding machines
As arc welding cables, these hard wearing and flexible rubber cables are designed to transmit high currents between the welding generator and the electrode in various applications with a voltage rating of up to 100V including manual or automated welding lines and spot welding.
They are widely used in industries including automotive and ship building.
These cables serve as connections for welding robots in automotive industries, shipyards, and both manual and automated welding operations, as well as for interconnecting battery cables or battery storage systems. Their durable structure ensures resistance to extreme temperatures, ozone, radiation, oils, acids, fats, and petroleum products.
This cable is produced according to EN50525-3-81&EN 60228
Yes, we can do the cables as client’t requirement, we also can do OEM supply。
