H07RN8-F Multi core EI4 rubber insulated EM2 rubber sheath cable
Application：
H07RN-8-F can be constantly immersed in fresh water to a depth of up to 10 meters at a water temperature of +40oC. This makes it suitable as an energy supply cable for submersed pumps. However, it is not suitable for underwater power transmission, or installation in a waterway, or where it is possible that mechanical damage might occur and cause hazard. It is commonly used as a floater switch to connect equipment in industrial water and in flexible applications in swimming pools.
Standard:
- Cable design: EN50525-2-21
- Conductor: EN 60228

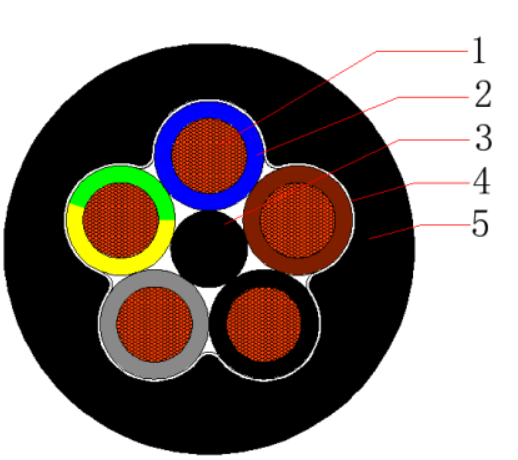

Products Construction
- Conductor – Plain flexible annealed class 5 copper
- Insulation – EPR rubber(EI4)
- Filler – Rubber(If need)
- Binder tape – Non-hygroscopic material tape(If need)
- Outer sheath – PCP or equivalent synthetic elastomer(EM2)
Cross Section：
- 1C1.5~630mm2
- 2C1~95mm2
- 3C1~300mm2
- 4C1~300mm2
- 5C1~95mm2
- 6, 7, 12, 18C1.5~4mm2
- 24, 36C1.5-2.5mm2
Temperature characteristics:
- Conductor operating temperature:-25℃~60℃
- Min. temperatrue laying condition: 0℃
- Conductor short-circuit operating temperature (5s): 160℃
Electrical Characteristics:
- Rated voltage: 450/750V
- High voltage test: 2.5kV / 5min
Color:
- Insulation: Yellow/Green, Black, Grey, Brown, Blue etc. According to customer requirements
Minimum Bending Radius：
Flexible:7.5x Outer Ø fixed:4x Outer Ø
Applicable Standards
Optional
Technical Parameters
| Conductor cross section | Insulation thickness | Approximate outer diameter | Approximate weight | Conductors at 20 ºC Maximum resistance value |
| mm² | mm | mm | kg/km | Ω/km |
| 0.5 | 0.6 | 2.2 | 9.0 | 39.0 |
| 0.75 | 0.6 | 2.4 | 11.8 | 26.0 |
| 1.0 | 0.6 | 2.6 | 14.5 | 19.5 |
| 1.5 | 0.7 | 3.0 | 21.4 | 13.3 |
| 2.5 | 0.8 | 3.7 | 33.4 | 7.98 |
| 4 | 0.8 | 4.3 | 48.9 | 4.95 |
| 6 | 0.8 | 4.85 | 69.0 | 3.3 |
| 10 | 1.0 | 6.6 | 115.9 | 1.91 |
| 16 | 1.0 | 7.6 | 174.2 | 1.21 |
| 25 | 1.2 | 10.0 | 270.5 | 0.78 |
| 35 | 1.2 | 11.0 | 367.6 | 0.554 |
| 50 | 1.4 | 12.94 | 522.7 | 0.386 |
| 70 | 1.4 | 14.54 | 711.4 | 0.272 |
| 95 | 1.6 | 16.86 | 962.9 | 0.206 |
| 120 | 1.6 | 18.26 | 1196.0 | 0.161 |
| 150 | 1.8 | 20.28 | 1495.0 | 0..129 |
| 185 | 2.0 | 22.6 | 1844.4 | 0.106 |
| 240 | 2.2 | 25.62 | 2383.4 | 0.0801 |
FAQ
H07RN8-F, HAR, power and control cable, rubber, heavy, 450/750V, submersion up to a depth of 10 m, pump cable, class 5, oil-resistant, flame-retardant
n the world of electrical installations, Choosing the right cable is crucial to ensuring safety, the efficiency and durability of the installation. Today, we will introduce you to two popular cables – the H07RN8-F and the H05VV-F – which stand out for their technical specifications and applications. Thanks to this detailed comparison, you will know which cable to choose for your specific needs.
H07RN-F and H07RN8-F cables may seem quite similar, but H07RN-F cables are better suited for flexible applications due to their higher flexibility, whereas H07RN8-F cables are designed to withstand the pulling forces from equipment.
Maximum conductor temperature is typically 60°C when submerged in water, and up to 85°C to 90°C for fixed installations in dry environments.
It is most commonly used as a power and control connection cable for submersible pumps, water treatment equipment, and various mobile industrial or agricultural underwater appliances.
