AACSR-Aluminum Alloy Conductor Steel Reinforced

Application

Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR conductors where the aluminum wires are replaced with the high strength aluminum alloy material. These super high strength conductors are used in river crossings or for long span applications where the traditional ACSR conductor will not work.

DESCRIPTION

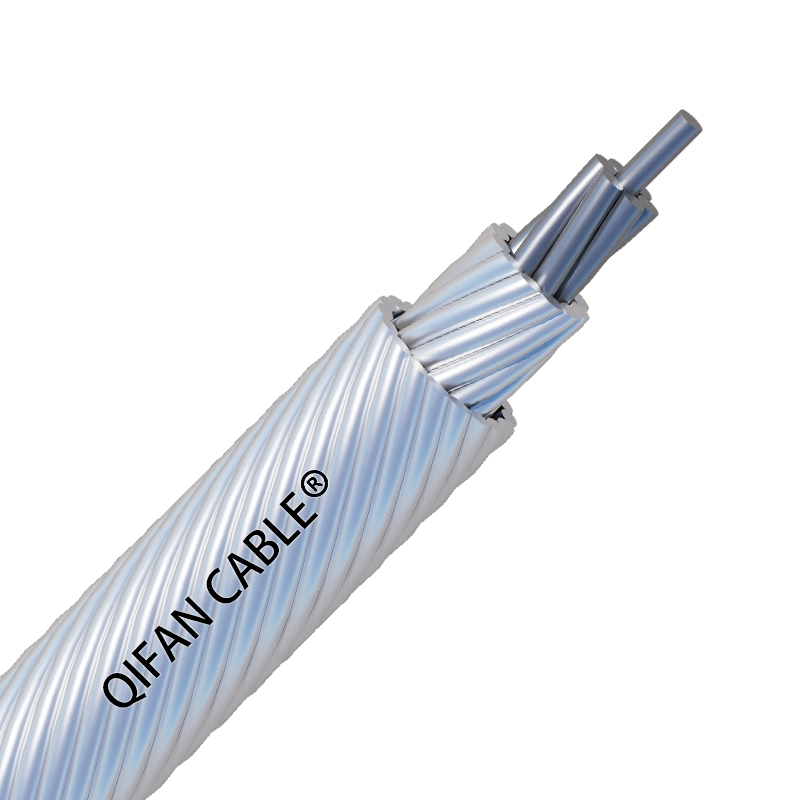

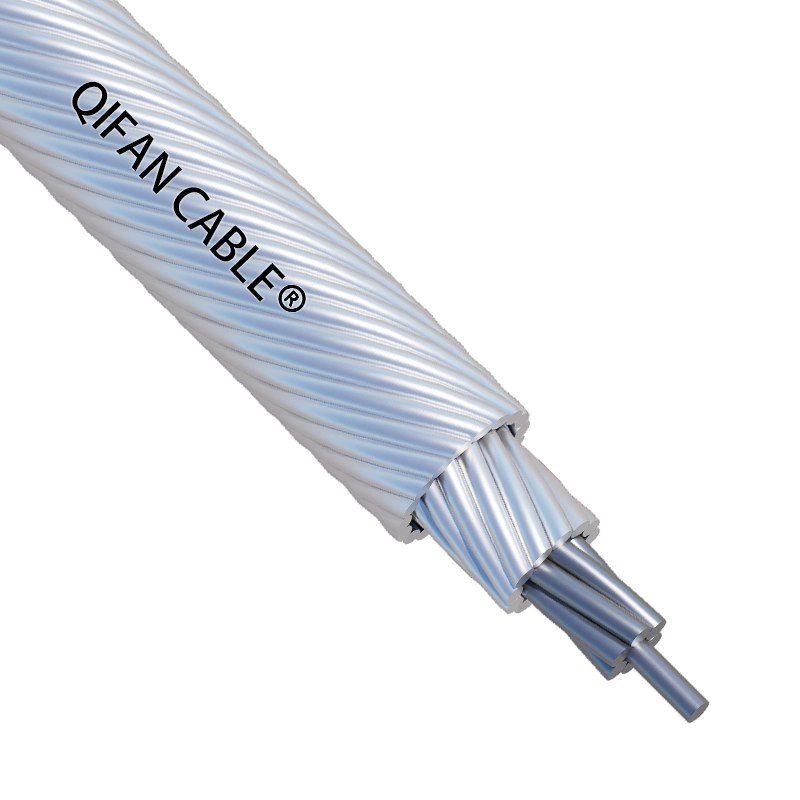

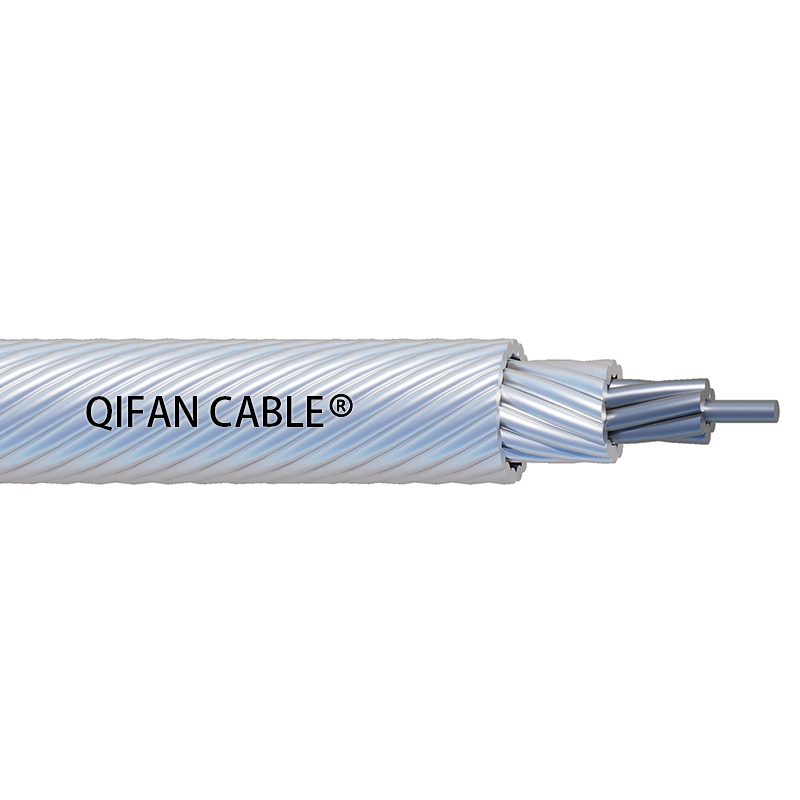

AACSR is a concentrically stranded conductor composed of one or more layers of Aluminium -Magnesium -Silicon Alloy wire stranded around a high strength coated steel core. The core can be of either single wire or stranded multi wire. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease. It is applied for large span overhead transmission and distribution lines than ACSR.

STANDARDS

• IEC 61089 Round wire concentric lay overhead electrical stranded conductors
• ASTM B711-2018 Round wire concentric lay overhead electrical stranded conductors
• AS 3607 Round wire concentric lay overhead electrical stranded conductors

Technical data

IEC 61089

ASTM B711

AS 3607

AACSR / A2/S1A
Code Number	Steel Ratio	Areas			No.of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Steel Ratio	Al. Alloy	Steel	Total	Al. Alloy	Steel	Al. Alloy	Steel	Core	Cond.	Linear Mass	Rated Strength	D.C. Resistance
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	18.4	3.07	21.5	6	1	1.98	1.98	1.98	5.93	74.4	9.02	1.7934
25	17	28.8	4.8	33.6	6	1	2.47	2.47	2.47	7.41	116.2	13.96	1.1478
40	17	46	7.67	53.7	6	1	3.13	3.13	3.13	9.38	185.9	22.02	0.7174
63	17	72.5	12.1	84.6	6	1	3.92	3.92	3.92	11.8	292.8	34.68	0.4555
100	6	115	6.39	121	18	1	2.85	2.85	2.85	14.3	366.4	41.24	0.288
125	6	144	7.99	152	18	1	3.19	3.19	3.19	16	458	51.23	0.2304
125	16	144	23.4	167	26	7	2.65	2.06	6.19	16.8	579.9	69.86	0.231
160	6	184	10.2	194	18	1	3.61	3.61	3.61	18	586.2	65.58	0.18
160	16	184	30	214	26	7	3	2.34	7.01	19	742.3	88.52	0.1805
200	6	230	12.8	243	18	1	4.04	4.04	4.04	20.2	732.8	81.97	0.144
200	16	230	37.5	268	26	7	3.36	2.61	7.83	21.3	927.9	110.64	0.1444
250	10	288	28.3	316	22	7	4.08	2.27	6.8	23.1	1013.5	117.09	0.1154
250	16	288	46.9	335	26	7	3.75	2.92	8.76	23.8	1159.8	138.31	0.1155
315	7	363	25.1	388	45	7	3.2	2.14	6.41	25.6	1196.5	136.28	0.0917
315	16	363	59	422	26	7	4.21	3.28	9.83	26.7	1461.4	171.9	0.0917
400	7	460	31.8	492	45	7	3.61	2.41	7.22	28.9	1519.4	172.1	0.0722
400	13	460	59.7	520	54	7	3.29	3.29	9.88	29.7	1738.3	201.46	0.0723
450	7	518	35.8	554	45	7	3.83	2.55	7.66	30.6	1709.3	193.61	0.0642
450	13	518	67.1	585	54	7	3.49	3.49	10.5	31.5	1955.6	226.64	0.0643
500	7	575	39.8	615	45	7	4.04	2.69	8.07	32.3	1899.3	215.12	0.0578
500	13	575	74.6	650	54	7	3.68	3.68	11.1	33.2	2172.9	251.82	0.0578
560	7	645	44.6	689	45	7	4.27	2.85	8.54	34.2	2127.2	240.93	0.0516
560	13	645	81.6	726	54	19	3.9	2.34	11.7	35.1	2420.9	283.21	0.0516
630	4	725	31.3	756	72	7	3.58	2.39	7.16	35.8	2248	249.62	0.0459
630	13	725	91.8	817	54	19	4.13	2.48	12.4	37.2	2723.5	318.61	0.0459
710	4	817	35.3	852	72	7	3.8	2.53	7.6	38	2533.4	281.32	0.0407
710	13	817	104	921	54	19	4.39	2.63	13.2	39.5	3069.4	359.06	0.0407
800	4	921	39.8	961	72	7	4.04	2.69	8.07	40.4	2854.6	316.98	0.0361
800	8	921	76.7	997	84	7	3.74	3.74	11.2	41.1	3145.1	356.03	0.0362
900	4	1036	44.8	1081	72	7	4.28	2.85	8.56	42.8	3211.4	356.6	0.0321
900	8	1036	86.3	1122	84	7	3.96	3.96	11.9	43.6	3538.3	400.53	0.0322
1000	8	1151	93.7	1245	84	19	4.18	2.51	12.5	45.9	3916.8	446.37	0.0289
1120	8	1289	105	1394	84	19	4.42	2.65	13.3	48.6	4386.8	499.93	0.0258
AACSR / A2/S3A
Code Number	Steel Ratio	Areas			No.of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Steel Ratio	Al. Alloy	Steel	Total	Al. Alloy	Steel	Al. Alloy	Steel	Core	Cond.	Linear Mass	Rated Strength	D.C. Resistance
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	18.4	3.07	21.5	6	1	1.98	1.98	1.98	5.93	74.4	9.88	1.7934
25	17	28.8	4.8	33.6	6	1	2.47	2.47	2.47	7.41	116.2	15.25	1.1478
40	17	46	7.67	53.7	6	1	3.13	3.13	3.13	9.38	185.9	24.17	0.7174
63	17	72.5	12.1	84.6	6	1	3.92	3.92	3.92	11.8	292.8	37.58	0.4555
100	6	115	6.39	121	18	1	2.85	2.85	2.85	14.3	366.4	42.97	0.288
125	6	144	7.99	152	18	1	3.19	3.19	3.19	16	458	53.47	0.2304
125	16	144	23.4	167	26	7	2.65	2.06	6.19	16.8	579.9	76.42	0.231
160	6	184	10.2	194	18	1	3.61	3.61	3.61	18	586.2	68.03	0.18
160	16	184	30	214	26	7	3	2.34	7.01	19	742.3	96.61	0.1805
200	6	230	12.8	243	18	1	4.04	4.04	4.04	20.2	732.8	85.04	0.144
200	16	230	37.5	268	26	7	3.36	2.61	7.83	21.3	927.9	120.77	0.1444
250	10	288	28.3	316	22	7	4.08	2.27	6.8	23.1	1013.5	124.72	0.1154
250	16	288	46.9	335	26	7	3.75	2.92	8.76	23.8	1159.8	150.96	0.1155
315	7	363	25.1	388	45	7	3.2	2.14	6.41	25.6	1196.5	143.3	0.0917
315	16	363	59	422	26	7	4.21	3.28	9.83	26.7	1461.4	188.44	0.0917
400	7	460	31.8	492	45	7	3.61	2.41	7.22	28.9	1519.4	180.69	0.0722
400	13	460	59.7	520	54	7	3.29	3.29	9.88	29.7	1738.3	218.17	0.0723
450	7	518	35.8	554	45	7	3.83	2.55	7.66	30.6	1709.3	203.28	0.0642
450	13	518	67.1	585	54	7	3.49	3.49	10.5	31.5	1955.6	245.44	0.0643
500	7	575	39.8	615	45	7	4.04	2.69	8.07	32.3	1899.3	225.86	0.0578
500	13	575	74.6	650	54	7	3.68	3.68	11.1	33.2	2172.9	269.73	0.0578
560	7	645	44.6	689	45	7	4.27	2.85	8.54	34.2	2127.2	252.97	0.0516
560	13	645	81.6	726	54	19	3.9	2.34	11.7	35.1	2420.9	305.25	0.0516
630	4	725	31.3	756	72	7	3.58	2.39	7.16	35.8	2248	258.08	0.0459
630	13	725	91.8	817	54	19	4.13	2.48	12.4	37.2	2723.5	343.4	0.0459
710	4	817	35.3	852	72	7	3.8	2.53	7.6	38	2533.4	290.85	0.0407
710	13	817	104	921	54	19	4.39	2.63	13.2	39.5	3069.4	387.01	0.0407
800	4	921	39.8	961	72	7	4.04	2.69	8.07	40.4	2854.6	327.72	0.0361
800	8	921	76.7	997	84	7	3.74	3.74	11.2	41.1	3145.1	374.44	0.0362
900	4	1036	44.8	1081	72	7	4.28	2.85	8.56	42.8	3211.4	368.69	0.0321
900	8	1036	86.3	1122	84	7	3.96	3.96	11.9	43.6	3538.3	421.25	0.0322
1000	8	1151	93.7	1245	84	19	4.18	2.51	12.5	45.9	3916.8	471.67	0.0289
1120	8	1289	105	1394	84	19	4.42	2.65	13.3	48.6	4386.8	528.27	0.0258
AACSR / A3/S1A
Code Number	Steel Ratio	Areas			No.of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Steel Ratio	Al. Alloy	Steel	Total	Al. Alloy	Steel	Al. Alloy	Steel	Core	Cond.	Linear Mass	Rated Strength	D.C. Resistance
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	18.6	3.1	21.7	6	1	1.99	1.99	1.99	5.96	75.1	9.67	1.7934
25	17	29	4.84	33.9	6	1	2.48	2.48	2.48	7.45	117.3	14.96	1.1478
40	17	46.5	7.75	54.2	6	1	3.14	3.14	3.14	9.42	187.7	23.63	0.7174
63	17	73.2	12.2	85.4	6	1	3.94	3.94	3.94	11.8	295.6	36.48	0.4555
100	6	116	6.46	123	18	1	2.87	2.87	2.87	14.3	369.9	45.12	0.288
125	6	145	8.07	153	18	1	3.21	3.21	3.21	16	462.3	56.08	0.2304
125	16	145	23.7	169	26	7	2.67	2.07	6.22	16.9	585.4	74.88	0.231
160	6	186	10.3	196	18	1	3.63	3.63	3.63	18.1	591.8	69.92	0.18
160	16	186	30.3	216	26	7	3.02	2.35	7.04	19.1	749.4	94.94	0.1805
200	6	232	12.9	245	18	1	4.05	4.05	4.05	20.3	739.8	87.4	0.144
200	16	232	37.8	270	26	7	3.37	2.62	7.87	21.4	936.7	118.67	0.1444
250	10	290	28.5	319	22	7	4.1	2.28	6.83	23.2	1023.2	124.02	0.1154
250	16	290	47.3	338	26	7	3.77	2.93	8.8	23.9	1170.9	145.43	0.1155
315	7	366	25.3	391	45	7	3.22	2.15	6.44	25.7	1207.9	148.56	0.0917
315	16	366	59.6	426	26	7	4.23	3.29	9.88	26.8	1475.3	180.86	0.0917
400	7	465	32.1	497	45	7	3.63	2.42	7.25	29	1533.9	183.03	0.0722
400	13	465	60.2	525	54	7	3.31	3.31	9.93	29.8	1754.9	217.32	0.0723
450	7	523	36.1	559	45	7	3.85	2.56	7.69	30.8	1725.6	205.91	0.0642
450	13	523	67.8	591	54	7	3.51	3.51	10.5	31.6	1974.2	239.26	0.0643
500	7	581	40.2	621	45	7	4.05	2.7	8.11	32.4	1917.3	228.79	0.0578
500	13	581	75.3	656	54	7	3.7	3.7	11.1	33.3	2193.6	265.84	0.0578
560	7	651	45	696	45	7	4.29	2.86	8.58	34.3	2147.4	256.24	0.0516
560	13	651	82.4	733	54	19	3.92	2.35	11.8	35.3	2444	298.92	0.0516
630	4	732	31.6	764	72	7	3.6	2.4	7.2	36	2269.4	266.64	0.0459
630	13	732	92.7	825	54	19	4.15	2.49	12.5	37.4	2749.5	336.28	0.0459
710	4	825	35.6	861	72	7	3.82	2.55	7.64	38.2	2557.6	300.5	0.0407
710	13	825	104	929	54	19	4.41	2.65	13.2	39.7	3098.6	378.98	0.0407
800	4	930	40.2	970	72	7	4.05	2.7	8.11	40.5	2881.8	338.59	0.0361
800	8	930	77.5	1007	84	7	3.75	3.75	11.3	41.3	3175.1	378.01	0.0362
900	4	1046	45.2	1091	72	7	4.3	2.87	8.6	43	3242	380.91	0.0321
900	8	1046	87.1	1133	84	7	3.98	3.98	11.9	43.8	3572	425.26	0.0322
1000	8	1162	94.6	1257	84	19	4.2	2.52	12.6	46.2	3954.1	473.86	0.0289
1120	8	1301	106	1407	84	19	4.44	2.66	13.3	48.9	4428.6	530.72	0.0258
AACSR / A3/S3A
Code Number	Steel Ratio	Areas			No.of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Steel Ratio	Al. Alloy	Steel	Total	Al. Alloy	Steel	Al. Alloy	Steel	Core	Cond.	Linear Mass	Rated Strength	D.C. Resistance
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	18.6	3.1	21.7	6	1	1.99	1.99	1.99	5.96	75.1	10.53	1.7934
25	17	29	4.84	33.9	6	1	2.48	2.48	2.48	7.45	117.3	16.27	1.1478
40	17	46.5	7.75	54.2	6	1	3.14	3.14	3.14	9.42	187.7	25.79	0.7174
63	17	73.2	12.2	85.4	6	1	3.94	3.94	3.94	11.8	295.6	39.41	0.4555
100	6	116	6.46	123	18	1	2.87	2.87	2.87	14.3	369.9	46.86	0.288
125	6	145	8.07	153	18	1	3.21	3.21	3.21	16	462.3	58.34	0.2304
125	16	145	23.7	169	26	7	2.67	2.07	6.22	16.9	585.4	81.5	0.231
160	6	186	10.3	196	18	1	3.63	3.63	3.63	18.1	591.8	72.4	0.18
160	16	186	30.3	216	26	7	3.02	2.35	7.04	19.1	749.4	103.11	0.1805
200	6	232	12.9	245	18	1	4.05	4.05	4.05	20.3	739.8	90.5	0.144
200	16	232	37.8	270	26	7	3.37	2.62	7.87	21.4	936.7	128.89	0.1444
250	10	290	28.5	319	22	7	4.1	2.28	6.83	23.2	1023.2	131.72	0.1154
250	16	290	47.3	338	26	7	3.77	2.93	8.8	23.9	1170.9	158.21	0.1155
315	7	366	25.3	391	45	7	3.22	2.15	6.44	25.7	1207.9	155.64	0.0917
315	16	366	59.6	426	26	7	4.23	3.29	9.88	26.8	1475.3	197.55	0.0917
400	7	465	32.1	497	45	7	3.63	2.42	7.25	29	1533.9	191.71	0.0722
400	13	465	60.2	525	54	7	3.31	3.31	9.93	29.8	1754.9	234.19	0.0723

AACSR
Conductor Area, mm2			Stranding and Wire Diameter				Diameter, mm		Rated Strength	Mass	DC Resistance at 20℃(ohms/km)
Alloy Nominal	Steel	Total	Alloy		Steel		Conductor	Steel Core	Rated Strength	Mass
Alloy Nominal	Steel	Total	No.	mm	No.	mm	Conductor	Steel Core	kN	kg/km
1250	102	1352	84	4.35	19	2.61	47.8	13	489	4255	0.0271
1120	91	1211	84	4.12	19	2.47	45.3	12.4	437	3816	0.0302
1000	81	1081	84	3.89	19	2.33	42.8	11.6	389	3400	0.0339
900	73	973	84	3.69	19	2.21	40.6	11	353	3060	0.0377
800	101	901	54	4.34	19	2.6	39	13	361	3003	0.0423
710	90	800	54	4.09	19	2.45	36.8	12.2	321	2664	0.0477
630	80	710	54	3.85	19	2.31	34.6	11.6	285	2365	0.0538
560	71	631	54	3.63	19	2.18	32.7	10.9	256	2104	0.0605
500	63	563	54	3.43	19	2.06	30.9	10.3	228	1878	0.0678
450	59	509	54	3.26	19	1.98	29.5	9.9	208	1706	0.075
400	91	491	30	4.12	19	2.47	28.8	12.4	237	1818	0.0844
400	65	465	26	4.43	7	3.45	28.1	10.4	206	1616	0.084
355	81	436	30	3.88	19	2.33	27.2	11.6	210	1614	0.0951
355	58	413	26	4.17	7	3.24	26.4	9.72	182	1430	0.0948
315	72	387	30	3.66	19	2.2	25.6	11	190	1438	0.1069
315	52	367	26	3.93	7	3.06	24.9	9.18	162	1272	0.1067
280	65	345	30	3.45	7	3.45	24.2	10.4	171	1286	0.1203
280	46	326	26	3.7	7	2.88	23.4	8.64	144	1127	0.1204
250	58	308	30	3.26	7	3.26	22.8	9.78	152	1149	0.1348
250	41	291	26	3.5	7	2.72	22.2	8.16	128	1008	0.1346
224	52	276	30	3.08	7	3.08	21.6	9.24	139	1025	0.151
224	36	260	26	3.31	7	2.57	21	7.71	115	901	0.1505
200	47	247	30	2.91	7	2.91	20.4	8.73	124	915	0.1691
200	32	232	26	3.13	7	2.43	19.8	7.29	105	805	0.1683
180	42	222	30	2.76	7	2.76	19.3	8.28	112	823	0.188
180	29	209	26	2.97	7	2.31	18.8	6.93	195	731	0.1869
160	38	198	30	2.61	7	2.61	18.3	7.83	100	736	0.2102
160	26	186	26	2.8	7	2.18	17.7	6.54	85.5	646	0.2103
140	33	173	30	2.44	7	2.44	17.1	7.32	87.4	643	0.2406
140	23	163	26	2.62	7	2.04	16.6	6.12	74.9	565	0.2401

Table 5 AS 3067
Product code	Strand/Wire No/mm		Cross sectional area mm2			Nominal O.D. mm	Weight Kg/km	Min.Breaking Load	Final modulus of elasticity	Coefficient of linear expansion
Product code	Alloy	Steel	Alloy	Steel	Total	Nominal O.D. mm	Weight Kg/km	KN	GPA	/℃*10-6
Apple 1120	6/3.00	1/3.00	42.4	7.1	49.5	9	171	18.3	79	19.3
Banana 1120	6/3.75	1/3.75	66.3	11	77.3	11.3	268	27.9	79	19.3
Cherry 1120	6/4.75	7/1.60	106	14.1	120	14.3	402	40.7	76	19.9
Grape 1120	30/2.50	7/2.50	147	34.4	182	17.5	677	74.4	80	19.4
Lemon 1120	30/3.00	7/3.00	212	49.5	262	21	973	107	80	19.4
Lychee 1120	30/3.25	7/3.25	249	58.1	307	22.8	1140	126	80	19.4
Lime 1120	30/3.50	7/3.50	289	67.3	356	24.5	1320	143	80	19.4
Mango 1120	54/3.00	7/3.00	382	49.5	431	27	1440	149	68	20.6
Orange 1120	54/3.25	7/3.25	448	58.1	506	29.3	1690	174	68	20.6
Olive 1120	54/3.50	7/3.50	519	67.3	587	31.5	1960	197	68	20.6

FAQ

What Is AACSR Conductor ?

AACSR is a type of bare overhead conductor made with 6201-T81 aluminum alloy strands wrapped around a high-strength galvanized steel core. The aluminum alloy carries the electric current, while the steel core provides extra tensile strength to support the line over long spans.

What is the Key Advantages of AACSR Conductor ?

Higher tensile strength for longer spans and heavy ice/wind loads
Better creep resistance and lower sag, which means fewer support structures
Good conductivity from the 6201 aluminum alloy
Higher operating temperature — continuous use up to 90°C, with heat-resistant versions reaching 150°C or more
Strong resistance to corrosion when properly coated or greased
Lightweight yet durable design that helps reduce overall line costs

What is the application of AACSR conductor ?

High-voltage transmission lines with long spans
Areas prone to heavy ice, strong winds, or snow
Coastal or industrial zones where corrosion resistance matters
Upgrading existing lines to handle higher loads with less sag
Ground wires and communication lines in overhead systems
