Application
conductor standard for cables developed by the International Electrotechnical Commission, officially known as “Conductors of Insulated Cables”. It is the most fundamental and widely used conductor universal standard in the field of power cables worldwide.
Characteristics
- Standardize global conductor technology requirements to facilitate design, production, and international trade;
- Ensure that the conductor resistance is qualified, reduce line losses, and guarantee power supply safety;
- It is the basic conductor standard referenced by various cable standards, such as power cables, photovoltaic cables, American standard lines, and European standard lines.
Main content
- Conductors are classified into solid conductors and stranded conductors, and are classified into different levels based on their flexibility;
- Specify commonly used nominal cross-sectional areas: 1.5mm ², 2.5mm ², 4mm ², 6mm ², 10mm ² and larger specifications;
- Provide the maximum DC resistance value at 20 ℃ to ensure consistency in conductor conductivity and quality;
- Suitable for cable conductors with AC voltage levels of 0.6/1kV and higher.
Applicable Standards
IEC 60228
Optional
solid conductors
stranded conductors
flexibility conductors

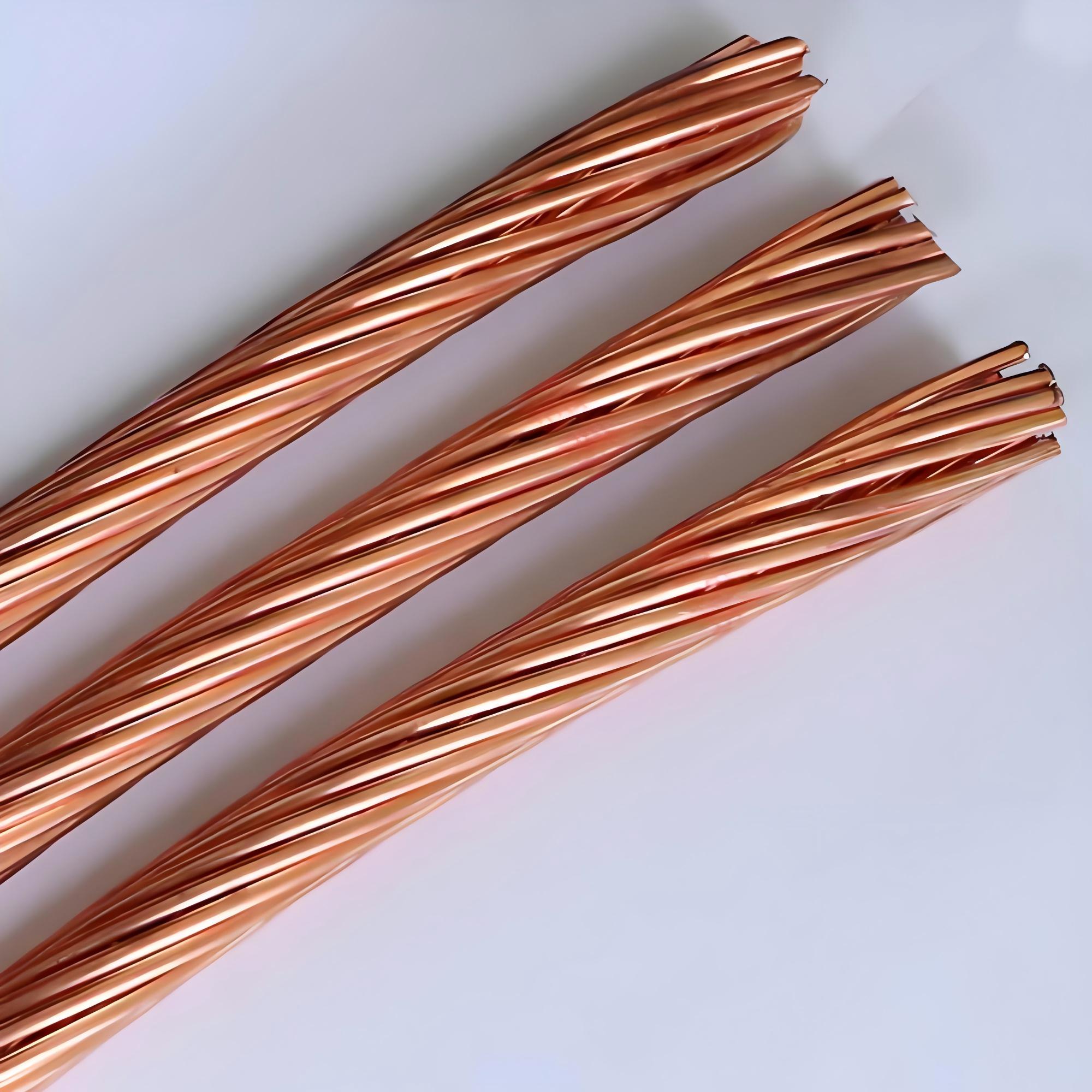

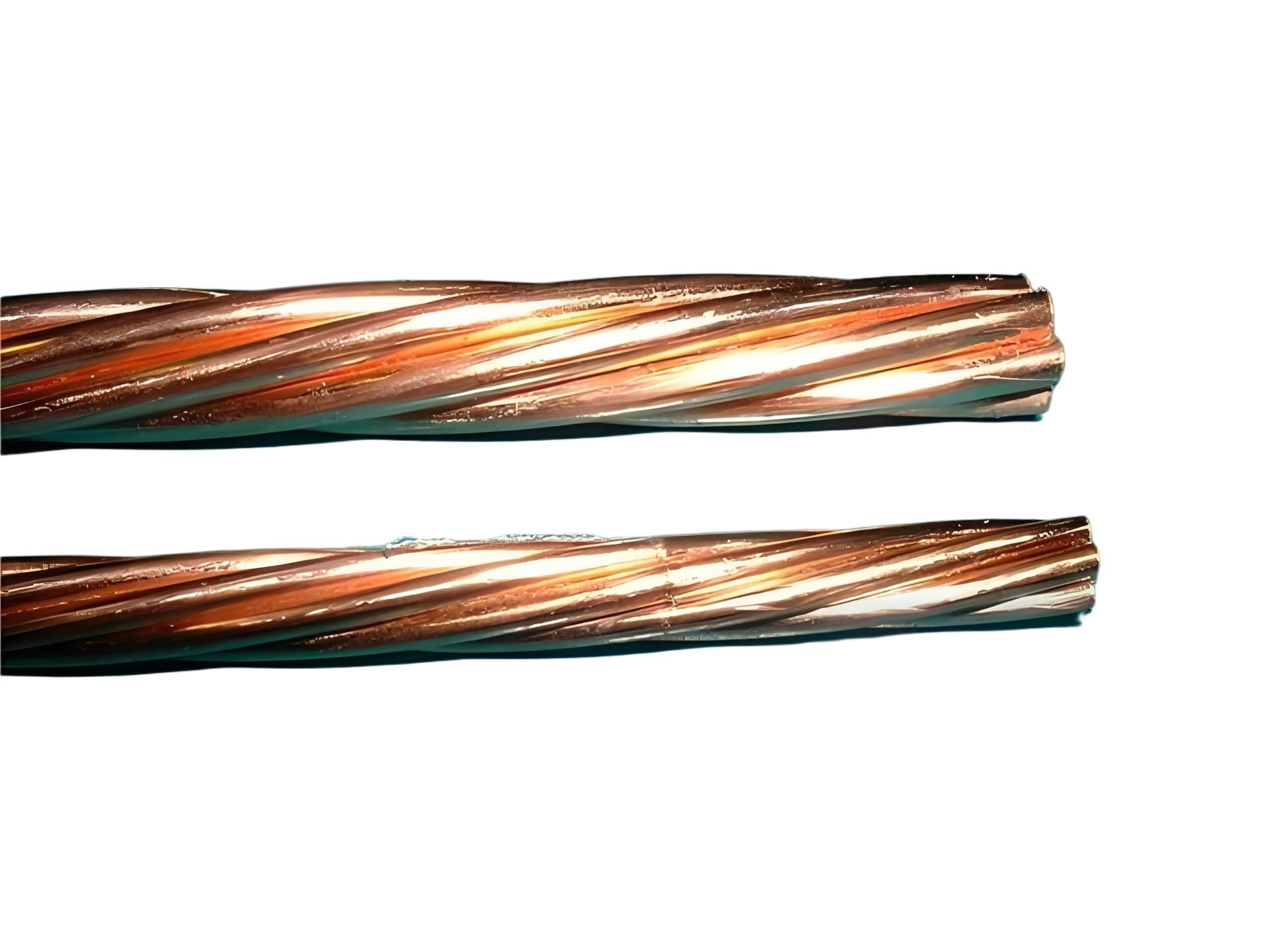

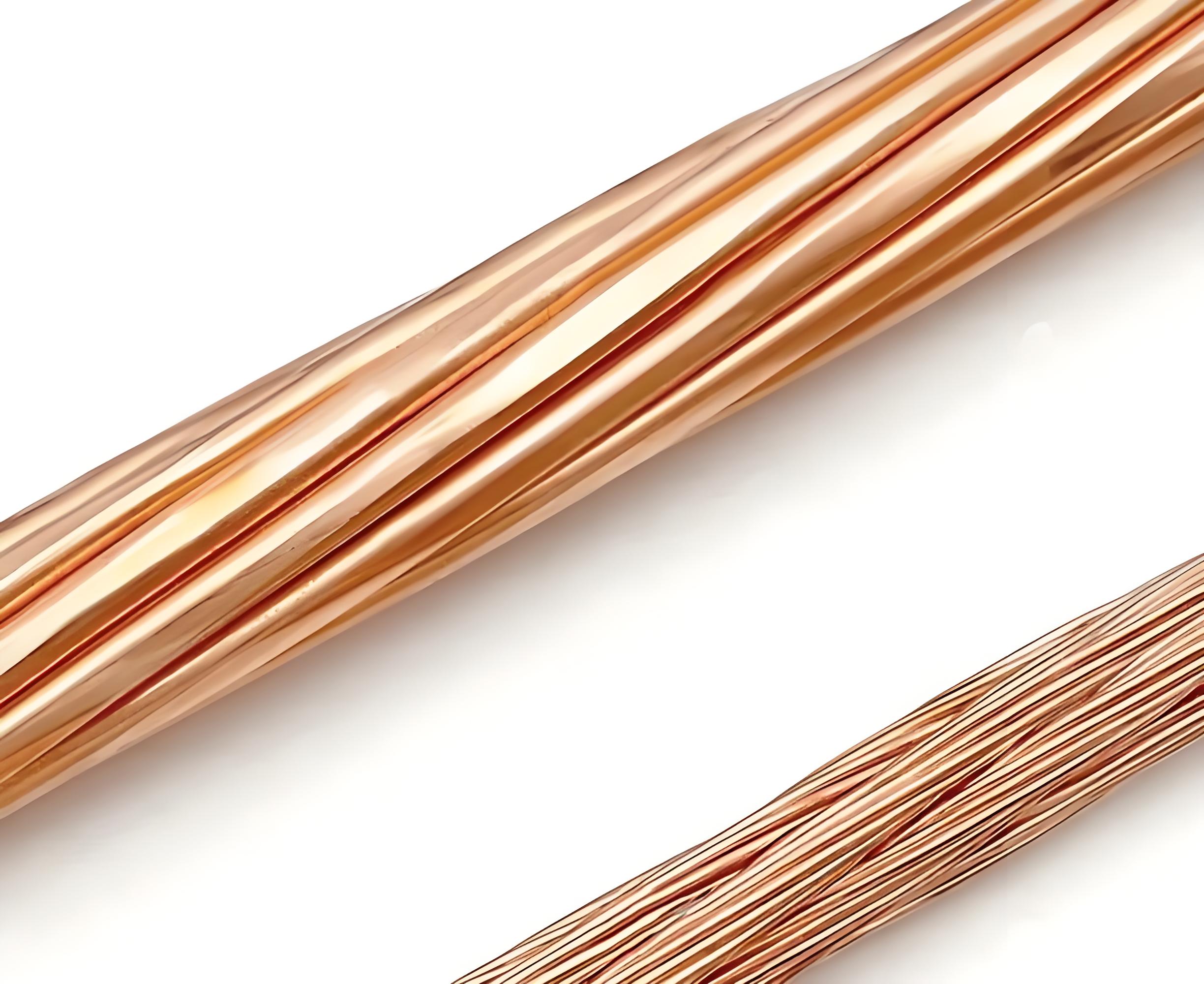

Tinned copper conductors
| NO./mm2 | Sollquerschnitt mm² | Conductor NO. | Diameter of wires （mm） | Diameter of conductor （mm） | Weight of cable (kg/km) | Nominal tensile strength（kN） | Max. current ratingt （A） |
| 10 | 10.02 | 7 | 1.35 | 4.1 | 90 | 4.02 | 90 |
| 16 | 15.89 | 7 | 1.7 | 5.1 | 143 | 6.37 | 125 |
| 25 | 24.25 | 7 | 2.1 | 6.3 | 218 | 9.72 | 160 |
| 35 | 34.36 | 7 | 2.5 | 7.5 | 310 | 13.77 | 200 |
| 50 | 49.48 | 7 | 3 | 9 | 446 | 19.84 | 250 |
| 50 | 48.35 | 19 | 1.8 | 9 | 437 | 19.38 | 250 |
| 70 | 65.81 | 19 | 2.1 | 10.5 | 596 | 26.38 | 310 |
| 95 | 93.27 | 19 | 2.5 | 12.5 | 845 | 37.39 | 380 |
| 120 | 116.99 | 19 | 2.8 | 14 | 1060 | 46.9 | 440 |
| 150 | 147.11 | 37 | 2.25 | 15.8 | 1337 | 58.98 | 510 |
| 185 | 181.62 | 37 | 2.5 | 17.5 | 1649 | 72.81 | 585 |
| 240 | 242.54 | 61 | 2.25 | 20.3 | 2209 | 97.23 | 700 |
| 300 | 299.43 | 61 | 2.5 | 22.5 | 2725 | 120.04 | 800 |
| 400 | 400.14 | 61 | 2.89 | 26 | 3640 | 160.42 | 960 |
| 500 | 499.83 | 61 | 3.23 | 29.1 | 4545 | 200.38 | 1110 |
FAQ
What’s your term of delivery and delivery method?
EXW, FOB, CFR,CIF,DDU,DDP and we will recommend the most suitable delivery method according to your specific needs.
Why do cables have to comply with IEC 60228?
Unified size and resistance ensure stable cable quality, good conductivity, and low loss, making it convenient for international use.
What are the problems with unqualified resistors?
It can cause severe cable heating, increased power consumption, and even pose safety hazards.
What categories does this standard classify conductors into?
Divided into four categories based on softness: 1, 2, 5, and 6:
