NTSCGEWOEU trailing cable
Application：
The product is suitable for fast moving port machinery such as cranes and container cranes of 60 m/min and below, and can also be used for driving large equipment and excavators, ground and underground mining and other occasions with high mechanical stress.
Standard:
- Cable design: DIN VDE 0250-813
- Flame retardant:IEC60332-1

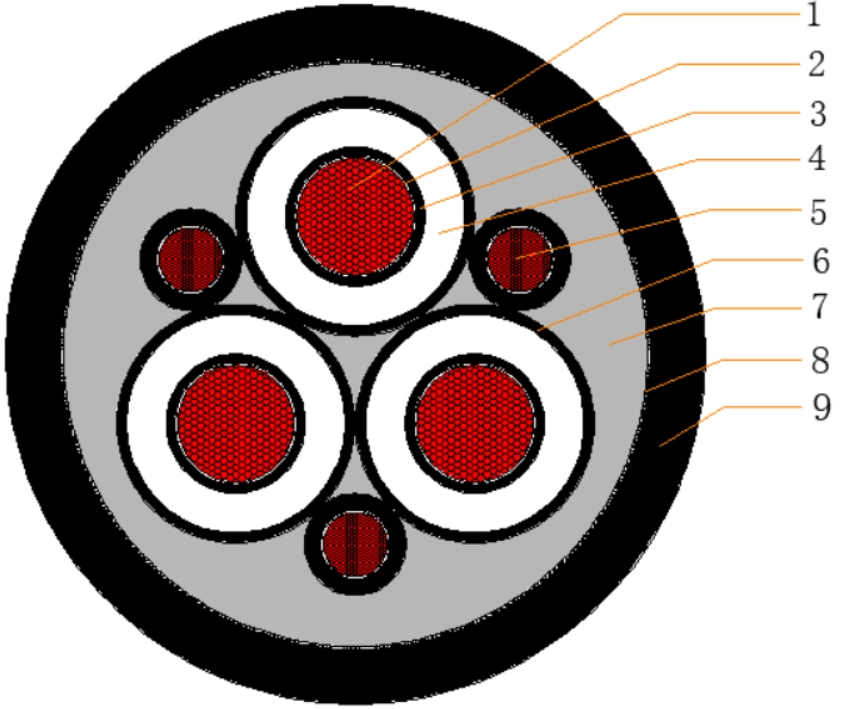

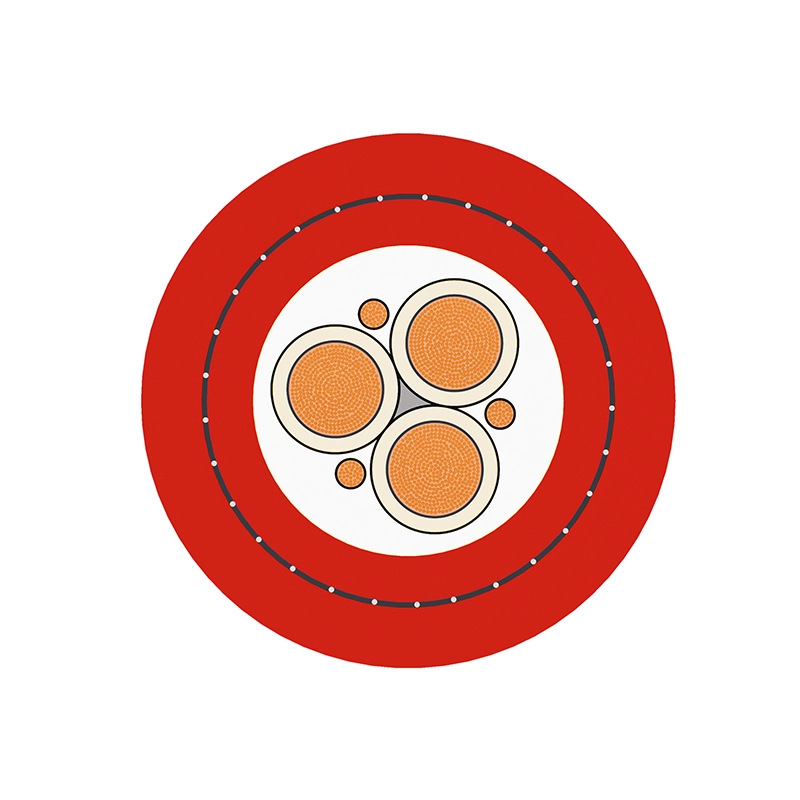

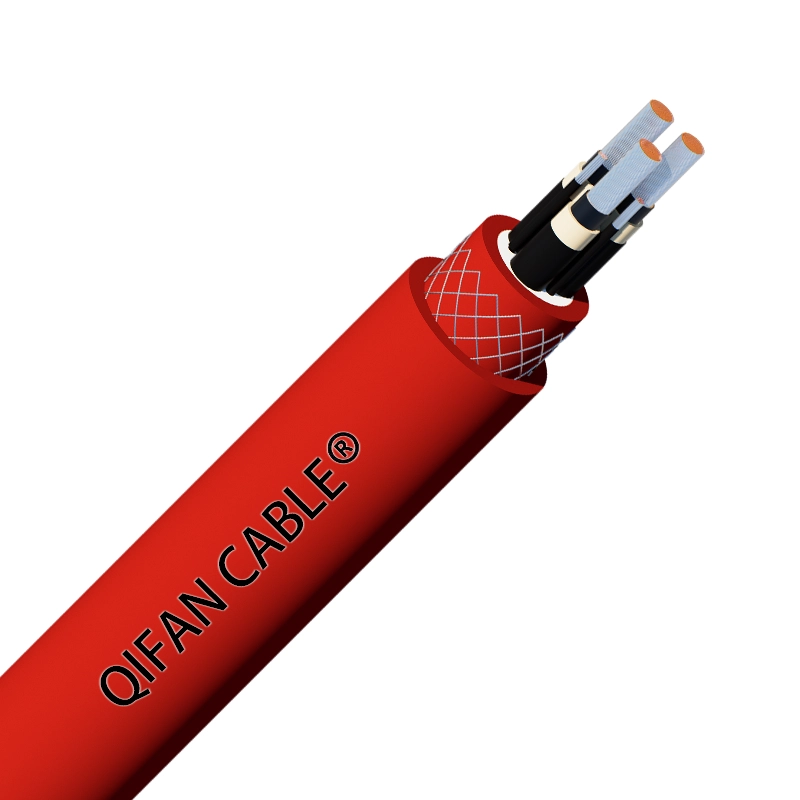

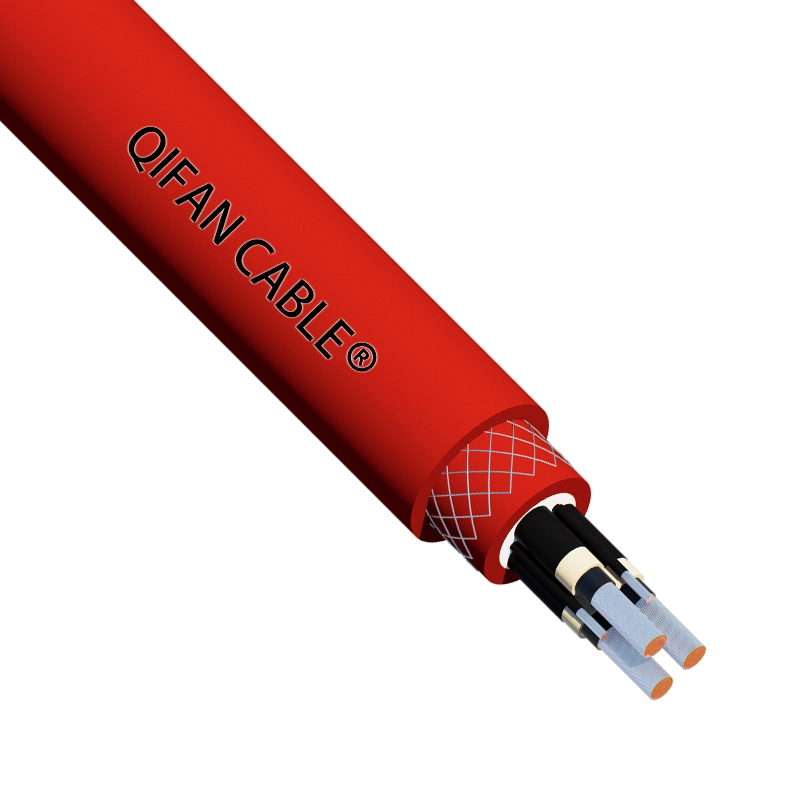

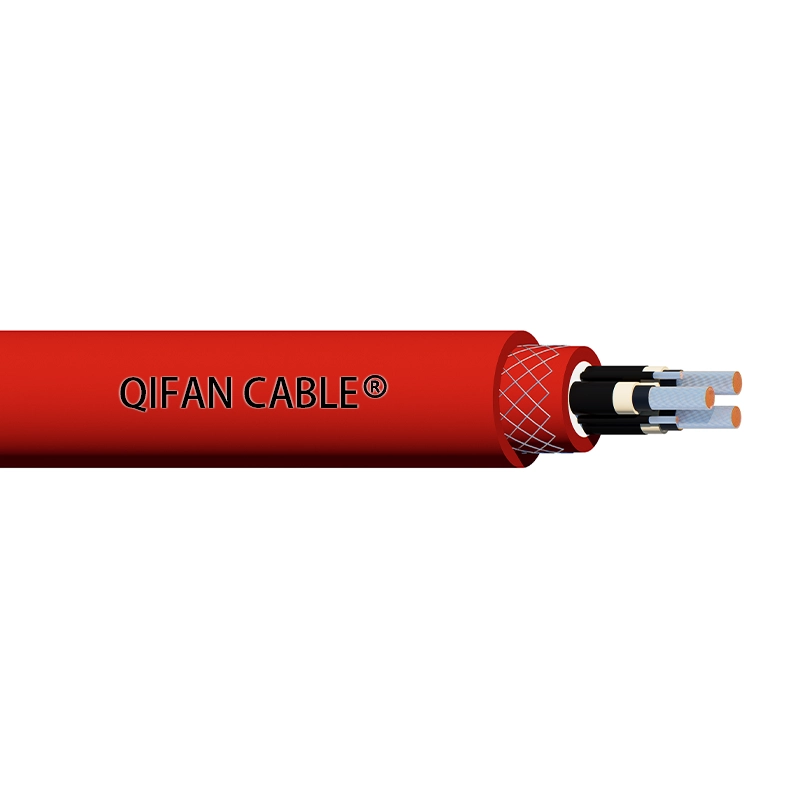

Products Construction
- Conductor – Tinned flexible annealed class 5 copper
- Binder tape – Semi conductive tape
- Conductor screen – Semi conductive material
- Insulation – Ethylene Propylene Rubber (EPR Type 3G13)
- Earth conductor – Tinned flexible annealed class 5 copper covered with Semi conductive material
- Insulation screen – Semi conductive material
- Inner sheath – Polychloroprene)(PCP Type 5GM5)
- Reinforced layer – Fibre yarn braid
- Sheath – Polychloroprene)(PCP Type 5GM5)
Cross Section：
- 3C+3E:16~185mm2
Temperature characteristics:
- flexible -20°C to +90°C
- fixed -40°C to +90°C
Electrical Characteristics:
- Rated voltage: 3.6/6kV-18-30kV
Color:
- Insulation: Natural
- Sheath：Black or According to customer requirements
Minimum Bending Radius：
- Flexible: 8x Outer Ø
- Fixed: 6x Outer Ø
Technical Specification
3.6/6kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 44.6 | 47.6 | 3080 | ||
| 3×35+3×25/3 | 47.6 | 50.6 | 3590 | ||
| 3×50+3×25/3 | 52.4 | 56.4 | 4520 | ||
| 3×70+3×35/3 | 56.3 | 60.3 | 5520 | ||
| 3×95+3×50/3 | 59.9 | 63.9 | 6580 | ||
| 3×120+3×70/3 | 65.6 | 69.6 | 8110 | ||
| 3×150+3×70/3 | 69.3 | 73.3 | 9320 | ||
| 3×185+3×95/3 | 73.2 | 77.2 | 10780 | ||
| 3×25+2×25/2+1×10ST | 45.0 | 49.0 | 3200 | ||
| 3×35+2×25/2+1×10ST | 47.6 | 51.6 | 3680 | ||
| 3×50+2×25/2+1×10ST | 53.0 | 57.0 | 4640 | ||
| 3×70+2×35/2+1×10ST | 56.2 | 60.2 | 5550 | ||
| 3×95+2×50/2+1×10ST | 61.8 | 66.8 | 6650 | ||
| 3×120+2×70/2+1×10ST | 66.1 | 71.1 | 8160 | ||
| 3×150+2×70/2+1×10ST | 69.8 | 74.8 | 9340 | ||
| 3×185+2×95/2+1×10ST | 74.6 | 79.6 | 10890 |
6/10 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 46.4 | 49.4 | 3270 | ||
| 3×35+3×25/3 | 49.1 | 53.1 | 3800 | ||
| 3×50+3×25/3 | 54.1 | 58.1 | 4750 | ||
| 3×70+3×35/3 | 58.0 | 62.0 | 5750 | ||
| 3×95+3×50/3 | 61.7 | 65.7 | 6830 | ||
| 3×120+3×70/3 | 67.4 | 71.4 | 8380 | ||
| 3×150+3×70/3 | 71.0 | 75.0 | 9620 | ||
| 3×185+3×95/3 | 76.7 | 80.7 | 11430 | ||
| 3×25+2×25/2+1×10ST | 46.8 | 50.8 | 3410 | ||
| 3×35+2×25/2+1×10ST | 50.9 | 54.9 | 3890 | ||
| 3×50+2×25/2+1×10ST | 54.5 | 58.9 | 4860 | ||
| 3×70+2×35/2+1×10ST | 58.0 | 62.0 | 5780 | ||
| 3×95+2×50/2+1×10ST | 63.5 | 68.5 | 6920 | ||
| 3×120+2×70/2+1×10ST | 67.8 | 72.8 | 8450 | ||
| 3×150+2×70/2+1×10ST | 71.5 | 76.5 | 9620 | ||
| 3×185+2×95/2+1×10ST | 76.3 | 81.3 | 10980 |
8.7/15 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 52.6 | 56.6 | 4040 | ||
| 3×35+3×25/3 | 55.6 | 59.6 | 4630 | ||
| 3×50+3×25/3 | 58.9 | 62.9 | 5370 | ||
| 3×70+3×35/3 | 64.5 | 68.5 | 6720 | ||
| 3×95+3×50/3 | 68.2 | 72.2 | 7850 | ||
| 3×120+3×70/3 | 72.1 | 76.1 | 9130 | ||
| 3×150+3×70/3 | 77.6 | 81.6 | 10750 | ||
| 3×185+3×95/3 | 81.5 | 85.5 | 12290 | ||
| 3×25+2×25/2+1×10ST | 53.0 | 57.0 | 4130 | ||
| 3×35+2×25/2+1×10ST | 55.6 | 59.6 | 4740 | ||
| 3×50+2×25/2+1×10ST | 59.3 | 63.3 | 5470 | ||
| 3×70+2×35/2+1×10ST | 64.6 | 68.6 | 6820 | ||
| 3×95+2×50/2+1×10ST | 68.3 | 73.3 | 7950 | ||
| 3×120+2×70/2+1×10ST | 74.4 | 79.4 | 9240 | ||
| 3×150+2×70/2+1×10ST | 78.1 | 83.1 | 10860 | ||
| 3×185+2×95/2+1×10ST | 81.1 | 86.1 | 12400 |
12/20 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 56.9 | 60.9 | 4620 | ||
| 3×35+3×25/3 | 59.9 | 63.9 | 5220 | ||
| 3×50+3×25/3 | 65.0 | 69.0 | 6300 | ||
| 3×70+3×35/3 | 68.9 | 72.9 | 7410 | ||
| 3×95+3×50/3 | 72.5 | 76.5 | 8560 | ||
| 3×120+3×70/3 | 78.2 | 82.2 | 10260 | ||
| 3×150+3×70/3 | 81.9 | 85.9 | 11570 | ||
| 3×185+3×95/3 | 87.4 | 92.4 | 13530 | ||
| 3×25+2×25/2+1×10ST | 57.3 | 61.3 | 4770 | ||
| 3×35+2×25/2+1×10ST | 59.9 | 63.9 | 5340 | ||
| 3×50+2×25/2+1×10ST | 65.4 | 69.4 | 6460 | ||
| 3×70+2×35/2+1×10ST | 68.8 | 72.8 | 7450 | ||
| 3×95+2×50/2+1×10ST | 74.4 | 79.4 | 8680 | ||
| 3×120+2×70/2+1×10ST | 78.7 | 83.7 | 10370 | ||
| 3×150+2×70/2+1×10ST | 82.2 | 87.2 | 11650 | ||
| 3×185+2×95/2+1×10ST | 87.0 | 92.0 | 13090 |
14/25kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
| No.×mm² | mm | mm | kg/km | ||
| 3×25+2×25/2+1×10ST | 64.7 | 68.7 | 5940 | ||
| 3×35+2×25/2+1×10ST | 67.3 | 71.3 | 6470 | ||
| 3×50+2×25/2+1×10ST | 71.0 | 75.0 | 7300 | ||
| 3×70+2×35/2+1×10ST | 75.2 | 80.2 | 8800 | ||
| 3×95+2×50/2+1×10ST | 80.0 | 85.0 | 10050 | ||
| 3×120+2×70/2+1×10ST | 85.9 | 90.9 | 11470 | ||
| 3×150+2×70/2+1×10ST | 89.6 | 94.6 | 13210 | ||
| 3×185+2×95/2+1×10ST | 92.6 | 97.6 | 14860 |
18/30kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 69.5 | 73.5 | 6680 | ||
| 3×35+3×25/3 | 72.5 | 76.5 | 7380 | ||
| 3×50+3×25/3 | 77.6 | 81.6 | 8460 | ||
| 3×70+3×35/3 | 81.5 | 85.5 | 9690 | ||
| 3×95+3×50/3 | 84.9 | 89.9 | 10960 | ||
| 3×120+3×70/3 | 90.6 | 95.6 | 12830 | ||
| 3×150+3×70/3 | 94.3 | 99.3 | 14250 | ||
| 3×185+3×95/3 | 100.0 | 105.0 | 16390 | ||
| 3×25+2×25/2+1×10ST | 69.9 | 73.9 | 7100 | ||
| 3×35+2×25/2+1×10ST | 72.6 | 76.6 | 7540 | ||
| 3×50+2×25/2+1×10ST | 78.0 | 82.0 | 8680 | ||
| 3×70+2×35/2+1×10ST | 80.4 | 85.4 | 9760 | ||
| 3×95+2×50/2+1×10ST | 86.8 | 91.8 | 11100 | ||
| 3×120+2×70/2+1×10ST | 91.1 | 96.1 | 12980 | ||
| 3×150+2×70/2+1×10ST | 94.8 | 99.8 | 14350 | ||
| 3×185+2×95/2+1×10ST | 99.6 | 104.6 | 15870 |
Applicable Standards
Optional
FAQ
These cables are used as power supply or connection cables for large material handling machines, e.g. excavators in open-cast mines subject to extremely high mechanical stresses. Particularly suitable for applications in which abrasion and chaffing stresses are to be expected in trailing operation.
The NTSCGEWOEU is a highly robust, medium-voltage (typically 3.6/6 kV to 12/20 kV) flexible trailing and reeling rubber cable. It is specifically engineered to endure extreme mechanical stress, dynamic tensile loads, and torsional forces in demanding environments.
Below cable construction for your reference:
Conductor – Tinned flexible annealed class 5 copper
Binder tape – Semi conductive tape
Conductor screen – Semi conductive material
Insulation – Ethylene Propylene Rubber (EPR Type 3G13)
Earth conductor – Tinned flexible annealed class 5 copper covered with Semi conductive material
Insulation screen – Semi conductive material
Inner sheath – Polychloroprene)(PCP Type 5GM5)
Reinforced layer – Fibre yarn braid
Sheath – Polychloroprene)(PCP Type 5GM5)
Yes, NTSCGEWOEU trailing cable is fully approved and designed for unrestricted outdoor use, certified under DIN VDE 0250-813 for exposed open-air installation.
Yes, NTSCGEWOEU trailing cable is water-resistant and splash-proof for outdoor wet conditions, but not fully submersible or permanently watertight for underwater burial.
