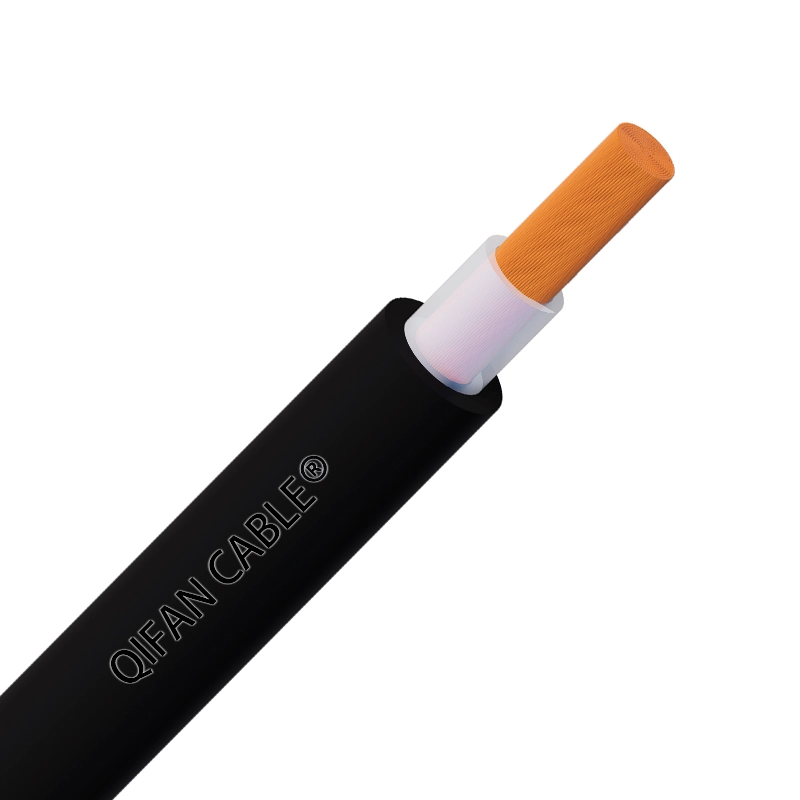

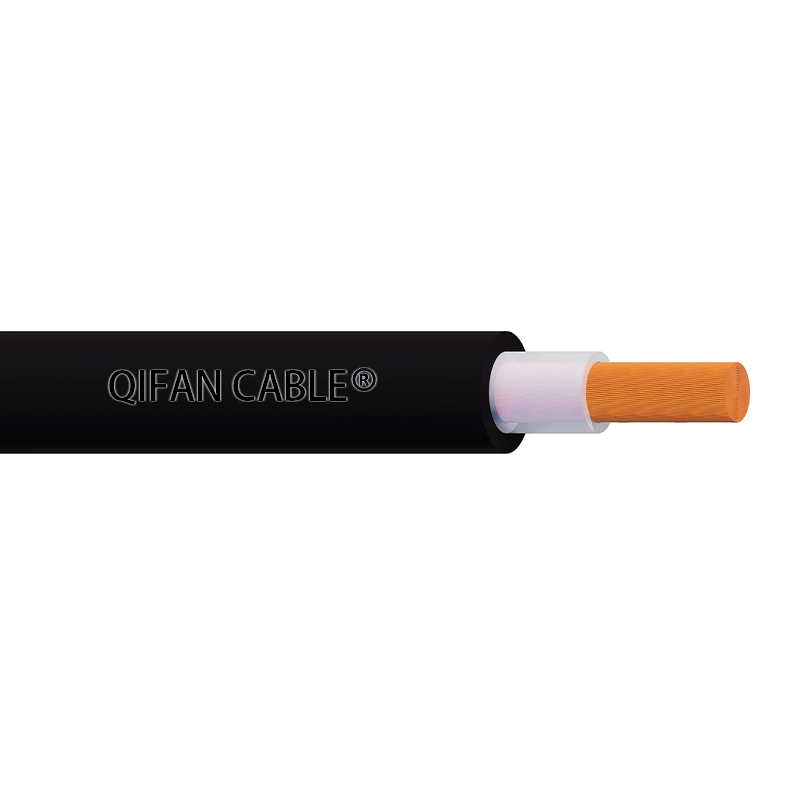

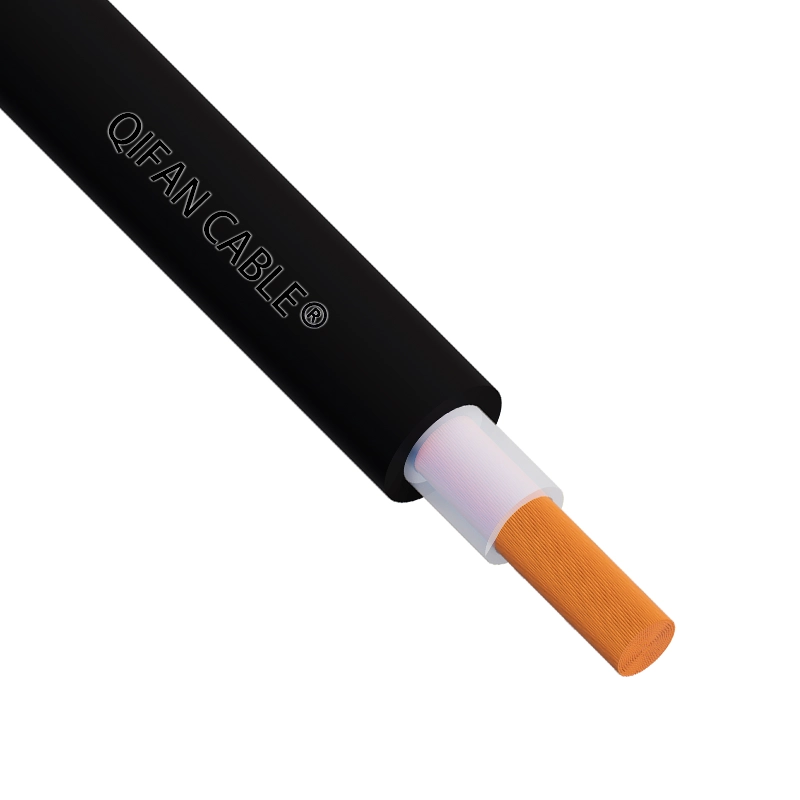

NSGAFÖU rubber cable
Application：
Single core cable for use in switch cabinets, wiring of devices, trains and buses. Suitable for laying in dry rooms. The cable is short-circuit and earth-fault proof in switchgear and distribution boards up to 1000 V. Normative permissible laying types are: in pipes, closed installation ducts, for connecting moving parts, device wiring and bundled. Not for use on cable ladders and cable trays.
Standard:
- Cable design: DIN VDE 0250-602
- Flame retardant:IEC60332-1

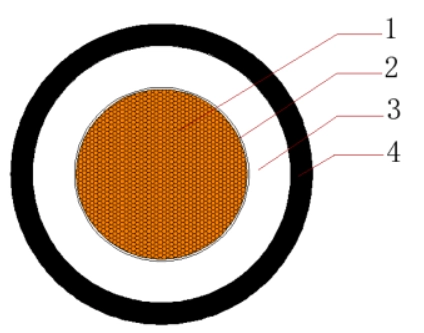

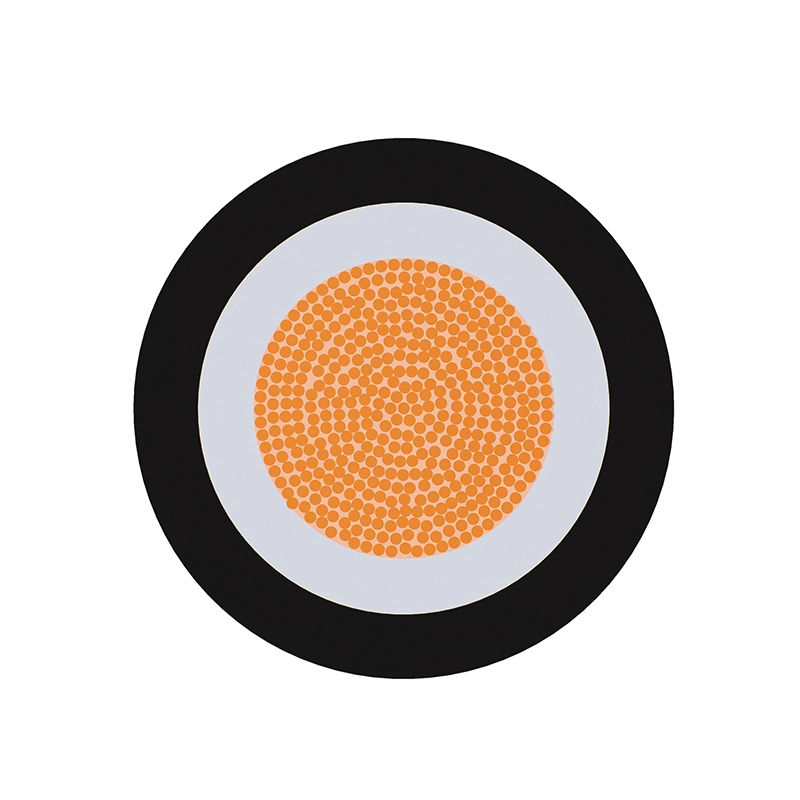

Products Construction
- Conductor – Plain flexible annealed class 5 copper
- Binder tape – Polyester non-woven fabric
- Insulation -Ethylene Propylene Rubber (EPR Type 3G13)
- Outer jacket – Polychloroprene)(PCP Type 5GM3)
Cross Section：
- 1C1.5~300mm2
Temperature characteristics:
- flexible -20°C to +90°C
- fixed -40°C to +90°C
Electrical Characteristics:
- Rated voltage: 1.8/3V
- High voltage test: 6kV / 5min
Color:
- Insulation: Natural
- Sheath：Black
Minimum Bending Radius：
- Flexible: 10x Outer Ø
- Fixed: 6x Outer Ø
Technical Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA (mm2) | NOMINAL THICKNESS OF INSULATION (mm) | NOMINAL THICKNESS OF SHEATH (mm) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL WEIGHT kg/km |
| 1 | 1.5 | 1.3 | 0.8 | 6.3 | 51 |
| 1 | 2.5 | 1.3 | 0.8 | 6.7 | 63 |
| 1 | 4 | 1.3 | 0.8 | 7.4 | 82 |
| 1 | 6 | 1.3 | 0.8 | 7.9 | 103 |
| 1 | 10 | 1.5 | 0.8 | 9.5 | 159 |
| 1 | 16 | 1.5 | 0.8 | 10.5 | 219 |
| 1 | 25 | 1.6 | 1 | 12.8 | 335 |
| 1 | 35 | 1.6 | 1 | 14.1 | 435 |
| 1 | 50 | 1.8 | 1 | 15.9 | 582 |
| 1 | 70 | 1.8 | 1 | 17.8 | 757 |
| 1 | 95 | 2.2 | 1 | 20.1 | 1040 |
| 1 | 120 | 2.2 | 1 | 22 | 1289 |
| 1 | 150 | 2.2 | 1.2 | 24 | 1581 |
| 1 | 185 | 2.4 | 1.2 | 26.3 | 1895 |
| 1 | 240 | 2.6 | 1.2 | 29.6 | 2452 |
| 1 | 300 | 2.8 | 1.2 | 32.2 | 2998 |
Applicable Standards
Optional
FAQ
NSGAFÖU is a VDE-approved (DIN VDE 0250-602), single-conductor rubber-insulated power cable with a nominal voltage of 1.8/3 kV.
For fixed installation in ducts and closed installation channels. Can be used in dry and oily environments. Flexible use at temperatures down to -25°C.
Below cable construction for your reference:
Conductor – Plain flexible annealed class 5 copper
Binder tape – Polyester non-woven fabric
Insulation -Ethylene Propylene Rubber (EPR Type 3G13)
Outer jacket – Polychloroprene)(PCP Type 5GM3)
Yes, NSGAFÖU cable is permitted for outdoor,but with clear limitations and installation rules.
NSGAFÖU cable is water-resistant, but not fully waterproof for permanent direct burial or continuous full submersion without protection.
