N2XBY 0.6/1kV Multicore armored cable
Multicore XLPE insulated PVC sheathed armored cable with copper conductor
Application：
To be used for main power supply, In low voltage distribution power networks, industrial installations, in buildings and operation stations. fixed installation in the ground or in concrete, in the cable trenches or cable, ducts, indoor or outdoor areas, in dry or wet locations.
Standard:
- Cable design: IEC 60502-1
- Conductor: IEC 60228

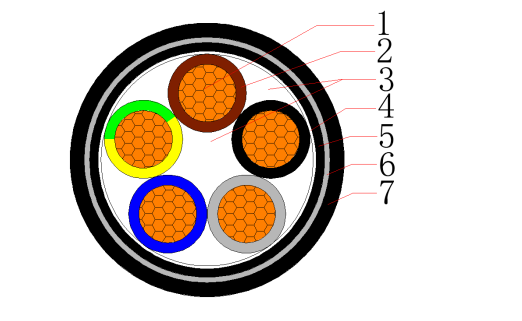

Construction
- 1. Conductor – Plain annealed class 2 stranded (compacted) copper
- 2. Insulation – Cross-linked polyethylene (XLPE)
- 3. Filler – Non-hygroscopic material
- 4. Binder tape – Non-hygroscopic material tape
- 5. Inner sheath – Polyvinyl chloride compound (PVC)
- 6. Armor – Galvanized steel tape
- 7. Outer sheath – Polyvinyl chloride compound (PVC)
Cross Section：
- 2C1.5~2C400mm2
- 3C1.5~3C400mm2
- 4C1.5~4C400mm2
- 5C1.5~5C400mm2
- 2C+E2.5~2C+E400mm2
- 3C+E2.5~3C+E400mm2
- 4C+E2.5~4C+E400mm2
Temperature characteristics:
- Conductor operating temperature: -15℃~90℃
- Min. temperatrue laying condition: 0℃
- Conductor short-circuit operating temperature (5s): 250℃
Electrical Characteristics:
- Rated voltage: 0.6/1 (1.2) kV
- High voltage test: 3.5kV / 5min
Color:
- Insulation: According to customer requirements
- Outer sheath: Black or according to customer requirements
Minimum Bending Radius：
| Items | Single-core Cables | Three-core Cables | ||
| Unarmoured | Armoured | Unarmoured | Armoured | |
| Min. bending radius during installation | 20D | 15D | 15D | 12D |
| Min. bending radius close to connection box and termination (bending radius should be controlled carefully, if the molding guide plate is used) | 15D | 12D | 12D | 10D |
Applicable Standards
IEC 60502-1
Optional
anti-termite / anti-vermin
Flame-retardant
UV Resistance
Technical Parameters
Two cores
Three core
Four cores
Five cores
3+1Cores
3+2Cores
4+1Cores
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Tape Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 2×1.5 | 1 | 0.7 | 0.2 | 1.8 | 12.2 | 220 | 12.1 |
| 2×2.5 | 1 | 0.7 | 0.2 | 1.8 | 13 | 256 | 7.41 |
| 2×4 | 1 | 0.7 | 0.2 | 1.8 | 14 | 307 | 4.61 |
| 2×6 | 1 | 0.7 | 0.2 | 1.8 | 15 | 370 | 3.08 |
| 2×10 | 6 | 0.7 | 0.2 | 1.8 | 17.5 | 509 | 1.83 |
| 2×16 | 6 | 0.7 | 0.2 | 1.8 | 19.1 | 659 | 1.15 |
| 2×25 | 6 | 0.9 | 0.2 | 1.8 | 22.3 | 915 | 0.727 |
| 2×35 | 6 | 0.9 | 0.2 | 1.8 | 24.3 | 1147 | 0.524 |
| 2×50 | 6 | 1 | 0.2 | 1.8 | 27.3 | 1463 | 0.387 |
| 2×70 | 12 | 1.1 | 0.2 | 1.9 | 30.9 | 1939 | 0.268 |
| 2×95 | 15 | 1.1 | 0.2 | 2 | 35.4 | 2587 | 0.193 |
| 2×120 | 18 | 1.2 | 0.5 | 2.2 | 40.2 | 3557 | 0.153 |
| 2×150 | 18 | 1.4 | 0.5 | 2.3 | 44.2 | 4269 | 0.124 |
| 2×185 | 30 | 1.6 | 0.5 | 2.5 | 49 | 5250 | 0.0991 |
| 2×240 | 34 | 1.7 | 0.5 | 2.6 | 54.2 | 6551 | 0.0754 |
| 2×300 | 34 | 1.8 | 0.5 | 2.8 | 59.8 | 8038 | 0.0601 |
| 2×400 | 53 | 2 | 0.5 | 3 | 66.6 | 10056 | 0.047 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Tape Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 3×1.5 | 1 | 0.7 | 0.2 | 1.8 | 12.7 | 246 | 12.1 |
| 3×2.5 | 1 | 0.7 | 0.2 | 1.8 | 13.5 | 292 | 7.41 |
| 3×4 | 1 | 0.7 | 0.2 | 1.8 | 14.5 | 359 | 4.61 |
| 3×6 | 1 | 0.7 | 0.2 | 1.8 | 15.6 | 441 | 3.08 |
| 3×10 | 6 | 0.7 | 0.2 | 1.8 | 18.4 | 621 | 1.83 |
| 3×16 | 6 | 0.7 | 0.2 | 1.8 | 20.1 | 827 | 1.15 |
| 3×25 | 6 | 0.9 | 0.2 | 1.8 | 23.5 | 1170 | 0.727 |
| 3X35 | 6 | 0.9 | 0.2 | 1.8 | 25.7 | 1491 | 0.524 |
| 3×50 | 6 | 1 | 0.2 | 1.8 | 28.9 | 1922 | 0.387 |
| 3×70 | 12 | 1.1 | 0.2 | 2 | 33.7 | 2657 | 0.268 |
| 3×95 | 15 | 1.1 | 0.5 | 2.2 | 39.2 | 3884 | 0.193 |
| 3×120 | 18 | 1.2 | 0.5 | 2.3 | 42.9 | 4728 | 0.153 |
| 3×150 | 18 | 1.4 | 0.5 | 2.4 | 47.6 | 5749 | 0.124 |
| 3×185 | 30 | 1.6 | 0.5 | 2.6 | 52.3 | 7045 | 0.0991 |
| 3×240 | 34 | 1.7 | 0.5 | 2.7 | 58.3 | 8927 | 0.0754 |
| 3×300 | 34 | 1.8 | 0.5 | 2.9 | 63.9 | 10919 | 0.0601 |
| 3×400 | 53 | 2 | 0.5 | 3.2 | 71.4 | 13772 | 0.047 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Tape Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 4×1.5 | 1 | 0.7 | 0.2 | 1.8 | 13.4 | 279 | 12.1 |
| 4×2.5 | 1 | 0.7 | 0.2 | 1.8 | 14.3 | 336 | 7.41 |
| 4×4 | 1 | 0.7 | 0.2 | 1.8 | 15.5 | 420 | 4.61 |
| 4×6 | 1 | 0.7 | 0.2 | 1.8 | 16.7 | 525 | 3.08 |
| 4×10 | 6 | 0.7 | 0.2 | 1.8 | 19.8 | 751 | 1.83 |
| 4×16 | 6 | 0.7 | 0.2 | 1.8 | 21.7 | 1016 | 1.15 |
| 4×25 | 6 | 0.9 | 0.2 | 1.8 | 25.6 | 1455 | 0.727 |
| 4×35 | 6 | 0.9 | 0.2 | 1.8 | 28 | 1871 | 0.524 |
| 4×50 | 6 | 1 | 0.2 | 1.9 | 31.8 | 2440 | 0.387 |
| 4×70 | 12 | 1.1 | 0.2 | 2.1 | 37 | 3387 | 0.268 |
| 4×95 | 15 | 1.1 | 0.5 | 2.3 | 43 | 4907 | 0.193 |
| 4×120 | 18 | 1.2 | 0.5 | 2.4 | 47.5 | 6044 | 0.153 |
| 4×150 | 18 | 1.4 | 0.5 | 2.6 | 52.5 | 7332 | 0.124 |
| 4×185 | 30 | 1.6 | 0.5 | 2.7 | 57.9 | 9048 | 0.0991 |
| 4×240 | 34 | 1.7 | 0.5 | 2.9 | 64.4 | 11449 | 0.0754 |
| 4×300 | 34 | 1.8 | 0.5 | 3.1 | 70.6 | 14041 | 0.0601 |
| 4×400 | 53 | 2 | 0.5 | 3.4 | 79.3 | 17835 | 0.047 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Tape Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 5×1.5 | 1 | 0.7 | 0.2 | 1.8 | 14.2 | 314 | 12.1 |
| 5×2.5 | 1 | 0.7 | 0.2 | 1.8 | 15.2 | 383 | 7.41 |
| 5×4 | 1 | 0.7 | 0.2 | 1.8 | 16.5 | 485 | 4.61 |
| 5×6 | 1 | 0.7 | 0.2 | 1.8 | 17.9 | 613 | 3.08 |
| 5×10 | 6 | 0.7 | 0.2 | 1.8 | 21.3 | 886 | 1.83 |
| 5×16 | 6 | 0.7 | 0.2 | 1.8 | 23.4 | 1212 | 1.15 |
| 5×25 | 6 | 0.9 | 0.2 | 1.8 | 27.8 | 1751 | 0.727 |
| 5×35 | 6 | 0.9 | 0.2 | 1.9 | 30.7 | 2277 | 0.524 |
| 5×50 | 6 | 1 | 0.2 | 2 | 35.6 | 3029 | 0.387 |
| 5×70 | 12 | 1.1 | 0.5 | 2.3 | 42 | 4551 | 0.268 |
| 5×95 | 15 | 1.1 | 0.5 | 2.4 | 47.5 | 6006 | 0.193 |
| 5×120 | 18 | 1.2 | 0.5 | 2.5 | 52 | 7354 | 0.153 |
| 5×150 | 18 | 1.4 | 0.5 | 2.7 | 57.9 | 8999 | 0.124 |
| 5×185 | 30 | 1.6 | 0.5 | 2.9 | 63.7 | 11074 | 0.0991 |
| 5×240 | 34 | 1.7 | 0.5 | 3.1 | 70.9 | 14042 | 0.0754 |
| 5×300 | 34 | 1.8 | 0.5 | 3.4 | 78.3 | 17364 | 0.0601 |
| 5×400 | 53 | 2 | 0.8 | 3.7 | 88.8 | 22823 | 0.047 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Tape Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 3×2.5+1×1.5 | 1/1 | 0.7/0.7 | 0.2 | 1.8 | 14.1 | 322 | 7.41/12.1 |
| 3×4+1×2.5 | 1/1 | 0.7/0.7 | 0.2 | 1.8 | 15.2 | 399 | 4.61/7.41 |
| 3×6+1×4 | 1/1 | 0.7/0.7 | 0.2 | 1.8 | 16.4 | 499 | 3.08/4.61 |
| 3×10+1×6 | 6/1 | 0.7/0.7 | 0.2 | 1.8 | 19 | 694 | 1.83/3.08 |
| 3×16+1×10 | 6/6 | 0.7/0.7 | 0.2 | 1.8 | 21.2 | 949 | 1.15/1.83 |
| 3×25+1×16 | 6/6 | 0.9/0.7 | 0.2 | 1.8 | 24.6 | 1344 | 0.727/1.15 |
| 3×35+1×16 | 6/6 | 0.9/0.7 | 0.2 | 1.8 | 26.4 | 1653 | 0.524/1.15 |
| 3×50+1×25 | 6/6 | 1.0/0.9 | 0.2 | 1.9 | 30.3 | 2194 | 0.387/0.727 |
| 3×70+1×35 | 12/6 | 1.1/0.9 | 0.2 | 2 | 34.9 | 3005 | 0.268/0.524 |
| 3×95+1×50 | 15/6 | 1.1/1.0 | 0.5 | 2.2 | 40.7 | 4369 | 0.193/0.387 |
| 3×120+1×70 | 18/12 | 1.2/1.1 | 0.5 | 2.3 | 44.8 | 5424 | 0.153/0.268 |
| 3×150+1×70 | 18/12 | 1.4/1.1 | 0.5 | 2.5 | 49.1 | 6433 | 0.124/0.268 |
| 3×185+1×95 | 30/15 | 1.6/1.1 | 0.5 | 2.6 | 54 | 7959 | 0.0991/0.193 |
| 3×240+1×120 | 34/18 | 1.7/1.2 | 0.5 | 2.8 | 60.3 | 10095 | 0.0754/0.153 |
| 3×300+1×150 | 34/18 | 1.8/1.4 | 0.5 | 3 | 66.2 | 12359 | 0.0601/0.124 |
| 3×400+1×185 | 53/30 | 2.0/1.6 | 0.5 | 3.2 | 74 | 15608 | 0.0470/0.0991 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Tape Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 3×2.5+2×1.5 | 1/1 | 0.7/0.7 | 0.2 | 1.8 | 14.8 | 355 | 7.41/12.1 |
| 3×4+2×2.5 | 1/1 | 0.7/0.7 | 0.2 | 1.8 | 16 | 444 | 4.61/7.41 |
| 3×6+2×4 | 1/1 | 0.7/0.7 | 0.2 | 1.8 | 17.3 | 562 | 3.08/4.61 |
| 3×10+2×6 | 6/1 | 0.7/0.7 | 0.2 | 1.8 | 19.9 | 776 | 1.83/3.08 |
| 3×16+2×10 | 6/6 | 0.7/0.7 | 0.2 | 1.8 | 22.6 | 1081 | 1.15/1.83 |
| 3×25+2×16 | 6/6 | 0.9/0.7 | 0.2 | 1.8 | 26 | 1532 | 0.727/1.15 |
| 3×35+2×16 | 6/6 | 0.9/0.7 | 0.2 | 1.8 | 27.7 | 1836 | 0.524/1.15 |
| 3×50+2×25 | 6/6 | 1.0/0.9 | 0.2 | 1.9 | 32.7 | 2525 | 0.387/0.727 |
| 3×70+2×35 | 12/6 | 1.1/0.9 | 0.2 | 2.1 | 36.9 | 3399 | 0.268/0.524 |
| 3×95+2×50 | 15/6 | 1.1/1.0 | 0.5 | 2.3 | 43.1 | 4917 | 0.193/0.387 |
| 3×120+2×70 | 18/12 | 1.2/1.1 | 0.5 | 2.4 | 48.1 | 6235 | 0.153/0.268 |
| 3×150+2×70 | 18/12 | 1.4/1.1 | 0.5 | 2.5 | 51.4 | 7165 | 0.124/0.268 |
| 3×185+2×95 | 30/15 | 1.6/1.1 | 0.5 | 2.7 | 57.4 | 9040 | 0.0991/0.193 |
| 3×240+2×120 | 34/18 | 1.7/1.2 | 0.5 | 2.9 | 63.5 | 11363 | 0.0754/0.153 |
| 3×300+2×150 | 34/18 | 1.8/1.4 | 0.5 | 3.1 | 69.9 | 13917 | 0.0601/0.124 |
| 3×400+2×185 | 53/30 | 2.0/1.6 | 0.5 | 3.4 | 78.2 | 17581 | 0.0470/0.0991 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Tape Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 4×2.5+1×1.5 | 1/1 | 0.7/0.7 | 0.2 | 1.8 | 15 | 369 | 7.41/12.1 |
| 4×4+1×2.5 | 1/1 | 0.7/0.7 | 0.2 | 1.8 | 16.2 | 464 | 4.61/7.41 |
| 4×6+1×4 | 1/1 | 0.7/0.7 | 0.2 | 1.8 | 17.6 | 587 | 3.08/4.61 |
| 4×10+1×6 | 6/1 | 0.7/0.7 | 0.2 | 1.8 | 20.6 | 831 | 1.83/3.08 |
| 4×16+1×10 | 6/6 | 0.7/0.7 | 0.2 | 1.8 | 23 | 1147 | 1.15/1.83 |
| 4×25+1×16 | 6/6 | 0.9/0.7 | 0.2 | 1.8 | 26.9 | 1641 | 0.727/1.15 |
| 4×35+1×16 | 6/6 | 0.9/0.7 | 0.2 | 1.8 | 29.1 | 2049 | 0.524/1.15 |
| 4×50+1×25 | 6/6 | 1.0/0.9 | 0.2 | 2 | 34.3 | 2783 | 0.387/0.727 |
| 4×70+1×35 | 12/6 | 1.1/0.9 | 0.5 | 2.2 | 40.1 | 4152 | 0.268/0.524 |
| 4×95+1×50 | 15/6 | 1.1/1.0 | 0.5 | 2.3 | 45 | 5427 | 0.193/0.387 |
| 4×120+1×70 | 18/12 | 1.2/1.1 | 0.5 | 2.5 | 50.1 | 6804 | 0.153/0.268 |
| 4×150+1×70 | 18/12 | 1.4/1.1 | 0.5 | 2.6 | 54.4 | 8047 | 0.124/0.268 |
| 4×185+1×95 | 30/15 | 1.6/1.1 | 0.5 | 2.8 | 60.5 | 10052 | 0.0991/0.193 |
| 4×240+1×120 | 34/18 | 1.7/1.2 | 0.5 | 3 | 67.2 | 12697 | 0.0754/0.153 |
| 4×300+1×150 | 34/18 | 1.8/1.4 | 0.5 | 3.2 | 74.2 | 15654 | 0.0601/0.124 |
| 4×400+1×185 | 53/30 | 2.0/1.6 | 0.8 | 3.6 | 84.2 | 20594 | 0.0470/0.0991 |
