Application
Designed for excellence in functionality, this product is ideal for power transmission and distribution, effortlessly handling rated power frequency voltages from an impressive range of 5kv to 46kv.
Characteristics
- Voltage Rating: 5kV,8kV,15kV,25kV,28kV,35kV,46kV
- Max. conductor temperature in service 90 °C
- Max. Short time overload temperature(2 h)130 °C
- Maximum conductor short time temperature 250 °C
- Bending factor when laying

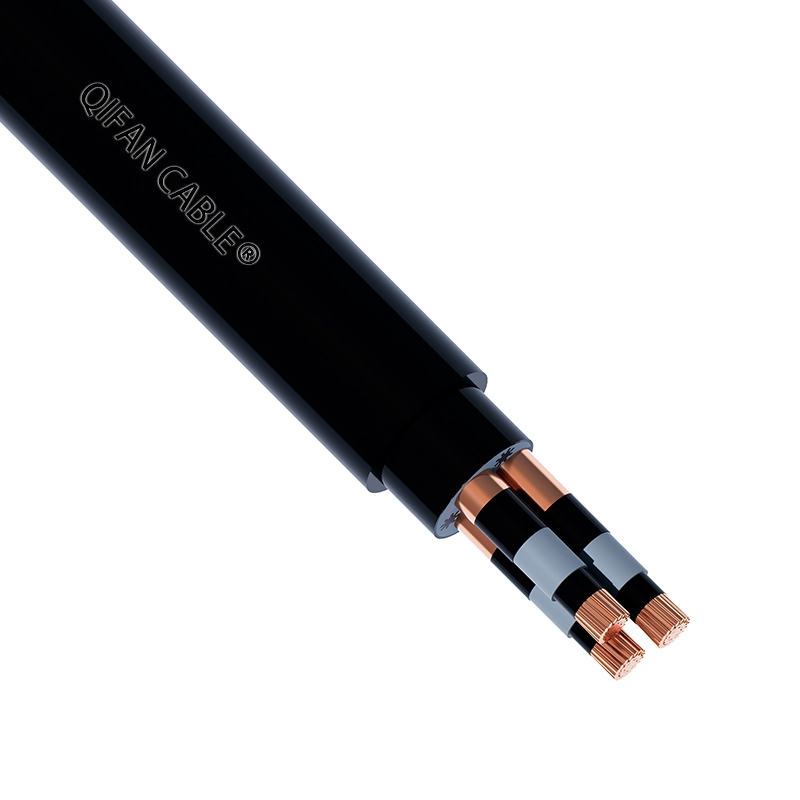

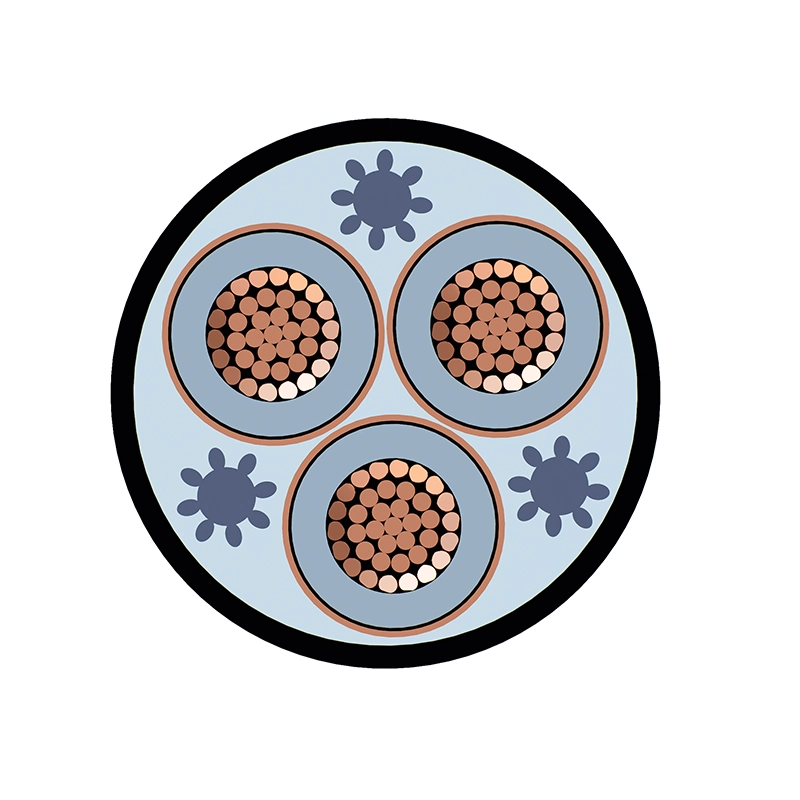

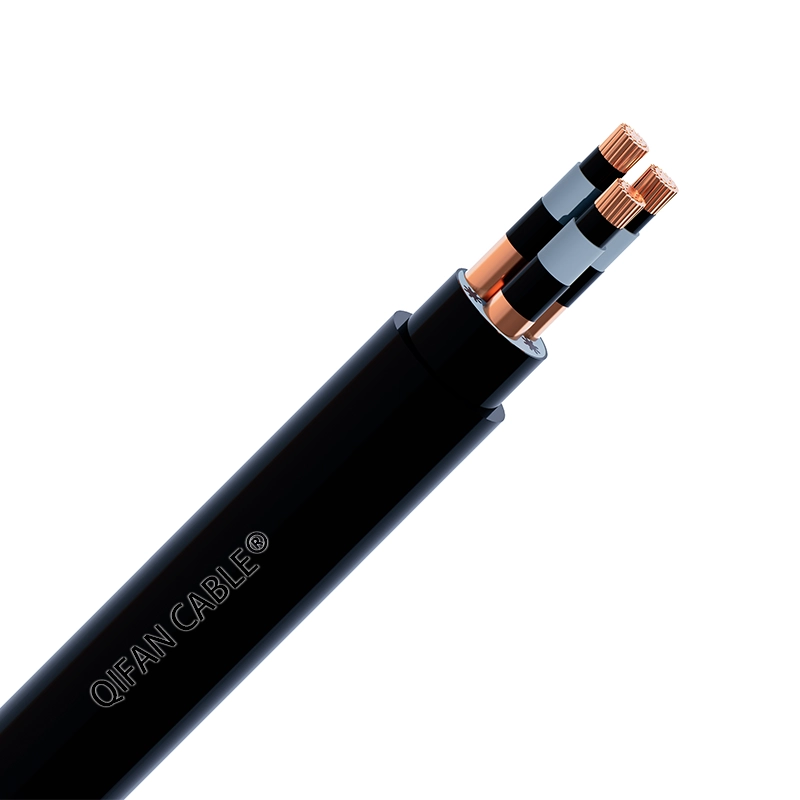

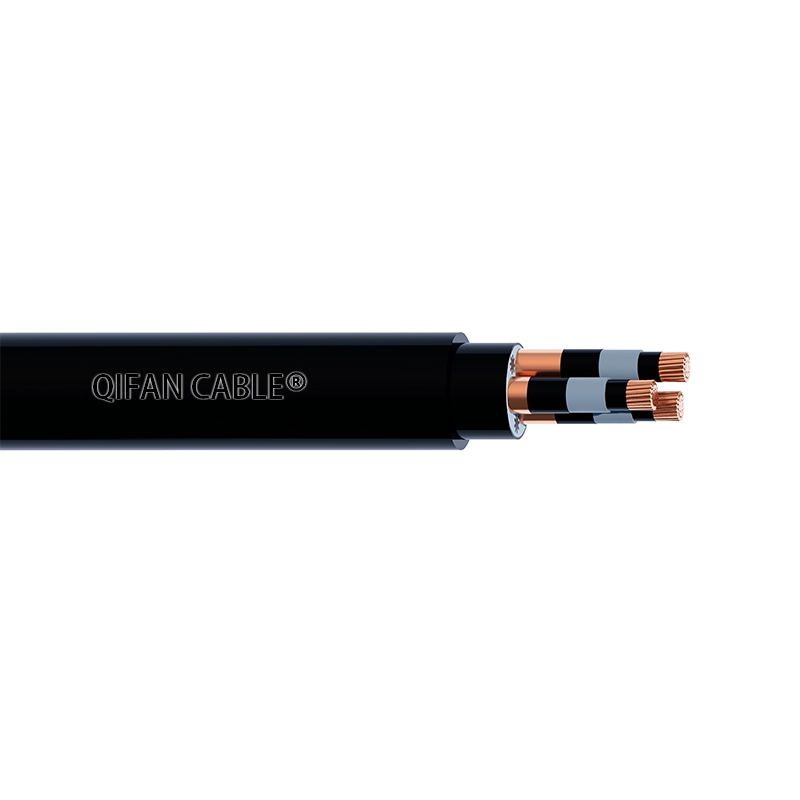

Products Construction
• Conductor: Stranded Compacted Copper or Aluminium Wire , Class B Conductor
• Conductor Shield : Semi-conductor XLPE Compound
• Insulation: XLPE ,TRXLPE or EPR Insulation
• Insulation Shield: Semi-conductor XLPE Compound
• Metallic screen: Copper tape / copper wire
• Wrapping tape(optional): Non-woven clothing tape
• Outer sheath : PVC/LDPE/LLDPE/HDPE/CPE
Applicable Standards
Optional
Technical Parameters
| Cond. Size (AWG/Kcmil) | Strand Count (No. of Strands) | Diameter Over Conductor (inch) | Diameter Over Insulation (inch) | Diameter Over Insulation Shield (inch) | Jacket Thickness (mil) | Approx. OD (inch) | Copper Weight (lb/1000ft) | Approx. Weight (lb/1000ft) | Max Pull Tension (lb) | Min Bending Radius (inch) | Conduit Size (inch) |
| 2 | 7 | 0.282 | 0.755 | 0.815 | 80 | 0.995 | 271 | 640 | 530 | 11.9 | 3 |
| 1 | 19 | 0.322 | 0.8 | 0.86 | 80 | 1.04 | 328 | 722 | 669 | 12.4 | 3 |
| 1/0 | 19 | 0.361 | 0.84 | 0.9 | 80 | 1.08 | 398 | 816 | 844 | 12.9 | 3 |
| 2/0 | 19 | 0.405 | 0.884 | 0.944 | 80 | 1.124 | 487 | 929 | 1064 | 13.4 | 3.5 |
| 3/0 | 19 | 0.456 | 0.934 | 0.994 | 80 | 1.174 | 597 | 1069 | 1342 | 14 | 3.5 |
| 4/0 | 19 | 0.512 | 0.99 | 1.05 | 80 | 1.23 | 738 | 1242 | 1692 | 14.7 | 3.5 |
| 250 | 37 | 0.558 | 1.044 | 1.104 | 80 | 1.284 | 860 | 1398 | 2000 | 15.4 | 4 |
| 350 | 37 | 0.661 | 1.147 | 1.207 | 80 | 1.387 | 1177 | 1775 | 2800 | 16.6 | 4 |
| 500 | 37 | 0.766 | 1.252 | 1.312 | 80 | 1.492 | 1648 | 2307 | 4000 | 17.9 | 4.5 |
| 500 | 37 | 0.789 | 1.275 | 1.335 | 80 | 1.515 | 1648 | 2322 | 4000 | 18.2 | 4.5 |
| 600 | 61 | 0.865 | 1.362 | 1.422 | 80 | 1.602 | 1964 | 2694 | 4800 | 19.2 | 4.5 |
| 750 | 61 | 0.968 | 1.464 | 1.524 | 110 | 1.764 | 2435 | 3323 | 6000 | 21.1 | 5 |
| 1000 | 61 | 1.117 | 1.613 | 1.673 | 110 | 1.913 | 3218 | 4202 | 8000 | 22.9 | 5.5 |
| 1250 | 91 | 1.25 | 1.78 | 1.84 | 110 | 2.08 | 4002 | 5118 | 10000 | 24.9 | 6 |
| 1500 | 91 | 1.37 | 1.93 | 1.99 | 110 | 2.23 | 4785 | 6006 | 12000 | 26.7 | – |
| 2000 | 127 | 1.583 | 2.143 | 2.203 | 110 | 2.443 | 6345 | 7716 | 16000 | 29.3 | – |
FAQ
MV Cable definition: A medium voltage (MV) cable is a commonly used and highly adaptable form of electrical cabling. It is used within commercial, industrial, and electrical utility industries thanks to its durability and flexibility.
They are typically divided into three categories based on voltage capacity. Low voltage (LV) cables are designed to handle 2,000 V or less, medium voltage cables (MV) can accommodate between 2,000 V and 35,000 V, and high voltage, or extra-high voltage cables (HV or EHV) are rated for voltage above 35,000 V.
The most popular voltage ratings of cables used by the DNO’s in the UK are 6.35/11 kV (12 kV), 12.7/22 kV (24 kV) and 19/33 kV (36 kV), although 3.6/6 kV (7.2 kV) cables and now 38/66 kV (72.5 kV) HV cables are sometimes used on special projects connected with renewable energy.
What is the definition of low voltage, medium voltage, high voltage and extra high voltage? Definitions vary somewhat but a general guide to the voltage categories are as follows: Low Voltage (LV): up to 1000V. Medium Voltage (MV): between 1000 V and 45 kV. High Voltage (HV): between 45 kV and 230 kV.
Low Voltage (LV): Up to 1,000 V AC (or 1,500 V DC). Common in residential, commercial wiring. Medium Voltage (MV): 1 kV to 35 kV.
Medium voltage generally refers to systems between 1,000V and 35,000V. This level is essential for industrial plants, refineries, hospitals, shopping centers, office complexes, and utility distribution systems.
