NAYY 0.6/1kV Single or Multicore unarmored cable
Single or Multicore PVC insulated PVC sheathed unarmored cable with aluminum conductor

Application:
To be used for main power supply, In low voltage distribution power networks, industrial installations, in buildings and operation stations. fixed installation in the ground or in concrete, in the cable trenches or cable, ducts, indoor or outdoor areas, in dry or wet locations.
Standard:
- Cable design: IEC 60502-1
- Conductor: IEC 60228

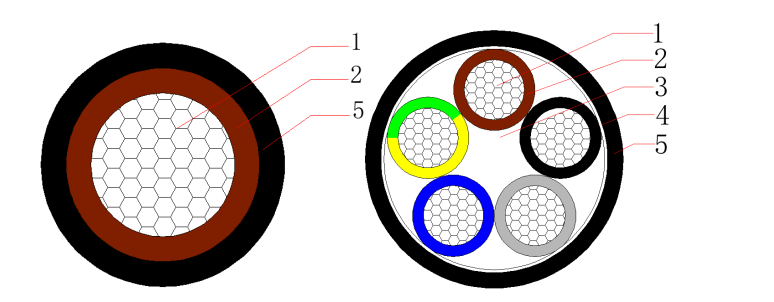

Construction
- 1. Conductor – Plain annealed class 2 stranded (compacted) aluminum
- 2. Insulation – Polyvinyl chloride compound (PVC)
- 3. Filler – Non-hygroscopic material
- 4. Binder tape – Non-hygroscopic material tape
- 5. Outer sheath – Polyvinyl chloride compound (PVC)
Cross Section:
- 1C10~800mm2
- 2C10~2C400mm2
- 3C10~3C400mm2
- 4C10~4C400mm2
- 5C10~5C400mm2
- 2C+E10~2C+E400mm2
- 3C+E10~3C+E400mm2
- 4C+E10~4C+E400mm2
Temperature characteristics:
- Conductor operating temperature: -15℃~70℃
- Min. temperatrue laying condition: 0℃
- Conductor short-circuit operating temperature (5s): 160℃(≤300mm2) 140℃(>300mm2)
Electrical Characteristics:
- Rated voltage: 0.6/1 (1.2) kV
- High voltage test: 3.5kV / 5min
Color:
- Insulation: According to customer requirements
- Outer sheath: Black or orange or according to customer requirements
Minimum Bending Radius:
| Items | Single-core Cables | Three-core Cables | ||
| Unarmoured | Armoured | Unarmoured | Armoured | |
| Min. bending radius during installation | 20D | 15D | 15D | 12D |
| Min. bending radius close to connection box and termination (bending radius should be controlled carefully, if the molding guide plate is used) | 15D | 12D | 12D | 10D |
Applicable Standards
Optional
Technical Parameters
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
| 1×2.5 | 1 | 0.8 | 1.4 | 6.2 | 46 | 12.1 |
| 1×4 | 1 | 1 | 1.4 | 7 | 61 | 7.41 |
| 1×6 | 1 | 1 | 1.4 | 7.5 | 73 | 4.61 |
| 1×10 | 6 | 1 | 1.4 | 8.8 | 93 | 3.08 |
| 1×16 | 6 | 1 | 1.4 | 9.6 | 120 | 1.91 |
| 1×25 | 6 | 1.2 | 1.4 | 11.2 | 167 | 1.2 |
| 1×35 | 6 | 1.2 | 1.4 | 12.2 | 205 | 0.868 |
| 1×50 | 6 | 1.4 | 1.4 | 13.9 | 263 | 0.641 |
| 1×70 | 12 | 1.4 | 1.5 | 15.6 | 340 | 0.443 |
| 1×95 | 15 | 1.6 | 1.5 | 17.8 | 456 | 0.32 |
| 1×120 | 15 | 1.6 | 1.6 | 19.4 | 537 | 0.253 |
| 1×150 | 15 | 1.8 | 1.6 | 21.1 | 660 | 0.206 |
| 1×185 | 30 | 2 | 1.7 | 23.4 | 814 | 0.164 |
| 1×240 | 30 | 2.2 | 1.8 | 26.3 | 1043 | 0.125 |
| 1×300 | 30 | 2.4 | 1.9 | 29.1 | 1284 | 0.1 |
| 1×400 | 53 | 2.6 | 2 | 32.4 | 1612 | 0.0778 |
| 1×500 | 53 | 2.8 | 2.1 | 36.1 | 2007 | 0.0605 |
| 1×630 | 53 | 2.8 | 2.2 | 40 | 2488 | 0.0469 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
| 2×2.5 | 1 | 0.8 | 1.8 | 10.6 | 116 | 12.1 |
| 2×4 | 1 | 1 | 1.8 | 12.4 | 156 | 7.41 |
| 2×6 | 1 | 1 | 1.8 | 13.4 | 186 | 4.61 |
| 2×10 | 6 | 1 | 1.8 | 15.9 | 240 | 3.08 |
| 2×16 | 6 | 1 | 1.8 | 17.5 | 310 | 1.91 |
| 2×25 | 6 | 1.2 | 1.8 | 20.7 | 433 | 1.2 |
| 2×35 | 6 | 1.2 | 1.8 | 22.7 | 529 | 0.868 |
| 2×50 | 6 | 1.4 | 1.8 | 26.1 | 679 | 0.641 |
| 2×70 | 12 | 1.4 | 1.9 | 29.6 | 869 | 0.443 |
| 2×95 | 15 | 1.6 | 2 | 34.2 | 1157 | 0.32 |
| 2×120 | 15 | 1.6 | 2.1 | 37.2 | 1369 | 0.253 |
| 2×150 | 15 | 1.8 | 2.2 | 41.2 | 1682 | 0.206 |
| 2×185 | 30 | 2 | 2.4 | 45.6 | 2078 | 0.164 |
| 2×240 | 30 | 2.2 | 2.6 | 51.4 | 2664 | 0.125 |
| 2×300 | 30 | 2.4 | 2.7 | 56.8 | 3257 | 0.1 |
| 2×400 | 53 | 2.6 | 3 | 63.8 | 4116 | 0.0778 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
| 3×2.5 | 1 | 0.8 | 1.8 | 11.2 | 135 | 12.1 |
| 3×4 | 1 | 1 | 1.8 | 13 | 185 | 7.41 |
| 3×6 | 1 | 1 | 1.8 | 14.1 | 223 | 4.61 |
| 3×10 | 6 | 1 | 1.8 | 16.9 | 292 | 3.08 |
| 3×16 | 6 | 1 | 1.8 | 18.6 | 382 | 1.91 |
| 3×25 | 6 | 1.2 | 1.8 | 22 | 540 | 1.2 |
| 3X35 | 6 | 1.2 | 1.8 | 24.2 | 666 | 0.868 |
| 3×50 | 6 | 1.4 | 1.8 | 27.9 | 861 | 0.641 |
| 3×70 | 12 | 1.4 | 2 | 31.8 | 1135 | 0.443 |
| 3×95 | 15 | 1.6 | 2.1 | 36.8 | 1517 | 0.32 |
| 3×120 | 15 | 1.6 | 2.2 | 40 | 1803 | 0.253 |
| 3×150 | 15 | 1.8 | 2.3 | 44.3 | 2213 | 0.206 |
| 3×185 | 30 | 2 | 2.5 | 49 | 2739 | 0.164 |
| 3×240 | 30 | 2.2 | 2.7 | 55.2 | 3519 | 0.125 |
| 3×300 | 30 | 2.4 | 2.9 | 61.3 | 4343 | 0.1 |
| 3×400 | 53 | 2.6 | 3.1 | 68.6 | 5458 | 0.0778 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
| 4×2.5 | 1 | 0.8 | 1.8 | 12 | 160 | 12.1 |
| 4×4 | 1 | 1 | 1.8 | 14.1 | 221 | 7.41 |
| 4×6 | 1 | 1 | 1.8 | 15.4 | 269 | 4.61 |
| 4×10 | 6 | 1 | 1.8 | 18.4 | 356 | 3.08 |
| 4×16 | 6 | 1 | 1.8 | 20.4 | 470 | 1.91 |
| 4×25 | 6 | 1.2 | 1.8 | 24.2 | 671 | 1.2 |
| 4×35 | 6 | 1.2 | 1.8 | 26.6 | 832 | 0.868 |
| 4×50 | 6 | 1.4 | 1.9 | 31.3 | 1104 | 0.641 |
| 4×70 | 12 | 1.4 | 2.1 | 35.3 | 1446 | 0.443 |
| 4×95 | 15 | 1.6 | 2.2 | 40.8 | 1937 | 0.32 |
| 4×120 | 15 | 1.6 | 2.3 | 44.4 | 2304 | 0.253 |
| 4×150 | 15 | 1.8 | 2.5 | 49.4 | 2852 | 0.206 |
| 4×185 | 30 | 2 | 2.7 | 54.6 | 3528 | 0.164 |
| 4×240 | 30 | 2.2 | 2.9 | 61.6 | 4533 | 0.125 |
| 4×300 | 30 | 2.4 | 3.1 | 68.3 | 5595 | 0.1 |
| 4×400 | 53 | 2.6 | 3.4 | 76.6 | 7068 | 0.0778 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
| 5×2.5 | 1 | 0.8 | 1.8 | 13 | 186 | 12.1 |
| 5×4 | 1 | 1 | 1.8 | 15.3 | 261 | 7.41 |
| 5×6 | 1 | 1 | 1.8 | 16.7 | 319 | 4.61 |
| 5×10 | 6 | 1 | 1.8 | 20.1 | 424 | 3.08 |
| 5×16 | 6 | 1 | 1.8 | 22.3 | 564 | 1.91 |
| 5×25 | 6 | 1.2 | 1.8 | 26.6 | 812 | 1.2 |
| 5×35 | 6 | 1.2 | 1.9 | 29.8 | 1031 | 0.868 |
| 5×50 | 6 | 1.4 | 2 | 34.6 | 1356 | 0.641 |
| 5×70 | 12 | 1.4 | 2.2 | 39 | 1776 | 0.443 |
| 5×95 | 15 | 1.6 | 2.4 | 45.4 | 2403 | 0.32 |
| 5×120 | 15 | 1.6 | 2.5 | 49.3 | 2858 | 0.253 |
| 5×150 | 15 | 1.8 | 2.7 | 54.9 | 3534 | 0.206 |
| 5×185 | 30 | 2 | 2.9 | 60.7 | 4368 | 0.164 |
| 5×240 | 30 | 2.2 | 3.1 | 68.4 | 5611 | 0.125 |
| 5×300 | 30 | 2.4 | 3.3 | 75.8 | 6924 | 0.1 |
| 5×400 | 53 | 2.6 | 3.7 | 85.2 | 8780 | 0.0778 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
| 3×4+1×2.5 | 1/1 | 1.0/0.8 | 1.8 | 13.6 | 206 | 7.41/12.1 |
| 3×6+1×4 | 1/1 | 1.0/1.0 | 1.8 | 15.1 | 257 | 4.61/7.41 |
| 3×10+1×6 | 6/1 | 1.0/1.0 | 1.8 | 17.7 | 333 | 3.08/4.61 |
| 3×16+1×10 | 6/6 | 1.0/1.0 | 1.8 | 19.9 | 441 | 1.91/3.08 |
| 3×25+1×16 | 6/6 | 1.2/1.0 | 1.8 | 23.3 | 619 | 1.20/1.91 |
| 3×35+1×16 | 6/6 | 1.2/1.0 | 1.8 | 25.1 | 738 | 0.868/1.91 |
| 3×50+1×25 | 6/6 | 1.4/1.2 | 1.9 | 29.6 | 989 | 0.641/1.20 |
| 3×70+1×35 | 12/6 | 1.4/1.2 | 2 | 33.2 | 1281 | 0.443/0.868 |
| 3×95+1×50 | 15/6 | 1.6/1.4 | 2.2 | 38.6 | 1728 | 0.320/0.641 |
| 3×120+1×70 | 15/12 | 1.6/1.4 | 2.3 | 42.2 | 2093 | 0.253/0.443 |
| 3×150+1×70 | 15/12 | 1.8/1.4 | 2.4 | 45.9 | 2484 | 0.206/0.443 |
| 3×185+1×95 | 30/15 | 2.0/1.6 | 2.6 | 51.2 | 3119 | 0.164/0.320 |
| 3×240+1×120 | 30/15 | 2.2/1.6 | 2.8 | 57.4 | 3962 | 0.125/0.253 |
| 3×300+1×150 | 30/15 | 2.4/1.8 | 3 | 63.7 | 4894 | 0.100/0.206 |
| 3×400+1×185 | 53/30 | 2.6/2.0 | 3.2 | 71.1 | 6135 | 0.0778/0.164 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
| 3×4+2×2.5 | 1/1 | 1.0/0.8 | 1.8 | 14.4 | 230 | 7.41/12.1 |
| 3×6+2×4 | 1/1 | 1.0/1.0 | 1.8 | 16.1 | 295 | 4.61/7.41 |
| 3×10+2×6 | 6/1 | 1.0/1.0 | 1.8 | 18.7 | 381 | 3.08/4.61 |
| 3×16+2×10 | 6/6 | 1.0/1.0 | 1.8 | 21.4 | 507 | 1.91/3.08 |
| 3×25+2×16 | 6/6 | 1.2/1.0 | 1.8 | 24.9 | 710 | 1.20/1.91 |
| 3×35+2×16 | 6/6 | 1.2/1.0 | 1.8 | 26.5 | 825 | 0.868/1.91 |
| 3×50+2×25 | 6/6 | 1.4/1.2 | 1.9 | 31.5 | 1132 | 0.641/1.20 |
| 3×70+2×35 | 12/6 | 1.4/1.2 | 2.1 | 35.4 | 1464 | 0.443/0.868 |
| 3×95+2×50 | 15/6 | 1.6/1.4 | 2.2 | 41 | 1952 | 0.320/0.641 |
| 3×120+2×70 | 15/12 | 1.6/1.4 | 2.4 | 45.3 | 2419 | 0.253/0.443 |
| 3×150+2×70 | 15/12 | 1.8/1.4 | 2.5 | 48.5 | 2803 | 0.206/0.443 |
| 3×185+2×95 | 30/15 | 2.0/1.6 | 2.7 | 54.5 | 3556 | 0.164/0.320 |
| 3×240+2×120 | 30/15 | 2.2/1.6 | 2.9 | 60.8 | 4479 | 0.125/0.253 |
| 3×300+2×150 | 30/15 | 2.4/1.8 | 3.1 | 67.5 | 5534 | 0.100/0.206 |
| 3×400+2×185 | 53/30 | 2.6/2.0 | 3.3 | 75.2 | 6924 | 0.0778/0.164 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
| 4×4+1×2.5 | 1/1 | 1.0/0.8 | 1.8 | 14.9 | 245 | 7.41/12.1 |
| 4×6+1×4 | 1/1 | 1.0/1.0 | 1.8 | 16.4 | 307 | 4.61/7.41 |
| 4×10+1×6 | 6/1 | 1.0/1.0 | 1.8 | 19.4 | 403 | 3.08/4.61 |
| 4×16+1×10 | 6/6 | 1.0/1.0 | 1.8 | 21.8 | 535 | 1.91/3.08 |
| 4×25+1×16 | 6/6 | 1.2/1.0 | 1.8 | 25.7 | 760 | 1.20/1.91 |
| 4×35+1×16 | 6/6 | 1.2/1.0 | 1.8 | 27.9 | 917 | 0.868/1.91 |
| 4×50+1×25 | 6/6 | 1.4/1.2 | 2 | 33.1 | 1250 | 0.641/1.20 |
| 4×70+1×35 | 12/6 | 1.4/1.2 | 2.1 | 37.1 | 1611 | 0.443/0.868 |
| 4×95+1×50 | 15/6 | 1.6/1.4 | 2.3 | 43.2 | 2175 | 0.320/0.641 |
| 4×120+1×70 | 15/12 | 1.6/1.4 | 2.4 | 47.2 | 2626 | 0.253/0.443 |
| 4×150+1×70 | 15/12 | 1.8/1.4 | 2.6 | 51.7 | 3164 | 0.206/0.443 |
| 4×185+1×95 | 30/15 | 2.0/1.6 | 2.8 | 57.6 | 3957 | 0.164/0.320 |
| 4×240+1×120 | 30/15 | 2.2/1.6 | 3 | 64.6 | 5039 | 0.125/0.253 |
| 4×300+1×150 | 30/15 | 2.4/1.8 | 3.2 | 71.6 | 6221 | 0.100/0.206 |
| 4×400+1×185 | 53/30 | 2.6/2.0 | 3.5 | 80.2 | 7841 | 0.0778/0.164 |
FAQ
The NAYY 0.6/1kV is a robust, low-voltage power cable featuring solid or stranded aluminum conductors, PVC insulation, and a durable PVC outer sheath. Rated for 600/1000V, it is widely used for industrial plants, urban power networks, and switchgears where heavy mechanical stress is not expected.
Aluminium PVC/PVC low voltage fixed installation power supply cables.Class 1 solid or Class 2 stranded aluminium conductor (core size dependent), with Polyvinyl Chloride (PVC) insulation and outer sheathing.
Double insulated’ cable supplied with (NAYY-J) or without (NAYY-O) earthing.
XLPE (Cross-Linked Polyethylene) and PVC (Polyvinyl Chloride) are two of the most common cable insulation materials. XLPE is generally preferred for heavy-duty, high-voltage, and high-temperature industrial applications, while PVC is ideal for low-voltage, everyday residential and commercial uses.
PVC vs XLPE for insulating cable: What’s the difference?
However, if a higher conductor temperature is required, causing the cable to rise above 70°C, then the cable chosen for this application should be insulated with XLPE.
This is because PVC has a maximum working temperature of 70°C which is exactly what is needed for standing building cables, whilst XLPE has a maximum working temperature of 90°C. Cables that are insulated with XLPE can run a higher current in the conductors.
PVC cables are electrical cables that use Polyvinyl Chloride (PVC) as an insulation material. PVC is a versatile and widely used thermoplastic polymer in the world of electric cables. Known for its electrical and mechanical properties, it is a popular choice due to its durability and cost-effectiveness.
Are PVC cables good?
It is widely used due to its elasticity and security features and also its sturdy resistance to heat and chemicals. Here’s the reason PVC cable is an increasingly popular choice: Installation is simple and easy to do. Resistant to flames and heat.
