PVC Insulated Power Cables 0.6/1KV

The products are used for electrical power transmission and distribution systems, operating at A.C. rated voltage of(U0/U) 0.6/1kV and below.

  • Certificates: ISO 9001 ISO14001 ISO 45001
  • Standard:  IEC 60502-1 or AS/ZNS 5000.1
  • Characteristics: anti-termite / anti-vermin and Flame-retardant/UV Resistant

CU/PVC/PVC 0.6/1kV Multicore unarmored cable
Multicore PVC insulated PVC sheathed unarmored cable with copper conductor

XLPE-PVC Insulated Power Cable unarmoured

Application:

To be used for main power supply, In low voltage distribution power networks, industrial installations, in buildings and operation stations. fixed installation in the ground or in concrete, in the cable trenches or cable, ducts, indoor or outdoor areas, in dry or wet locations.

Standard:

  • Cable design: IEC 60502-1 or AS/ZNS 5000.1
  • Conductor: IEC 60228 or AS/ZNS 1125

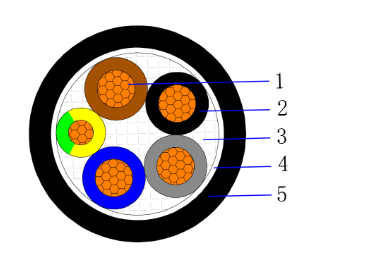

Construction

  • 1.    Conductor – Plain annealed class 2 stranded (compacted) copper
  • 2.    Insulation – Polyvinyl chloride compound (PVC)
  • 3.    Filler – Non-hygroscopic material
  • 4.    Binder tape – Non-hygroscopic material tape
  • 5.    Outer sheath – Polyvinyl chloride compound (PVC)

Cross Section:

  • 2C1.5~2C400mm2
  • 3C1.5~3C400mm2
  • 4C1.5~4C400mm2
  • 5C1.5~5C400mm2
  • 2C+E2.5~2C+E400mm2
  • 3C+E2.5~3C+E400mm2
  • 4C+E2.5~4C+E400mm2

Temperature characteristics:

  • Conductor operating temperature: -15℃~70℃
  • Min. temperatrue laying condition: 0℃
  • Conductor short-circuit operating temperature (5s): 160℃(≤300mm2) 140℃(>300mm2)

Electrical Characteristics:

  • Rated voltage: 0.6/1 (1.2) kV
  • High voltage test: 3.5kV / 5min

Color:

  • Insulation: According to customer requirements
  • Outer sheath: Black or orange or according to customer requirements

Minimum Bending Radius

ItemsSingle-core CablesThree-core Cables
UnarmouredArmouredUnarmouredArmoured
Min. bending radius during installation20D15D15D12D
Min. bending radius close to connection box and termination (bending radius should be controlled carefully, if the molding guide plate is used)15D12D12D10D

Applicable Standards

IEC 60502-1
AS/ZNS 5000.1

Optional

anti-termite / anti-vermin
Flame-retardant
UV Resistance

Technical Parameters

Single core
Two cores
Three core
Four cores
Five cores
3+1Cores
3+2Cores
4+1Cores
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight Max. D.C .Resistance of Conductor at 20℃
No. × mm² No. mm mm mm kg/km Ω/km
1×1.5 1 0.8 1.4 5.8 49 12.1
1×2.5 1 0.8 1.4 6.2 61 7.41
1×4 1 1 1.4 7 85 4.61
1×6 1 1 1.4 7.5 108 3.08
1×10 6 1 1.4 8.8 157 1.83
1×16 6 1 1.4 9.6 218 1.15
1×25 6 1.2 1.4 11.2 320 0.727
1×35 6 1.2 1.4 12.2 416 0.524
1×50 6 1.4 1.4 13.9 551 0.387
1×70 12 1.4 1.5 15.6 761 0.268
1×95 15 1.6 1.5 17.8 1030 0.193
1×120 18 1.6 1.6 19.4 1274 0.153
1×150 18 1.8 1.6 21.1 1554 0.124
1×185 30 2 1.7 23.4 1943 0.0991
1×240 34 2.2 1.8 26.3 2508 0.0754
1×300 34 2.4 1.9 29.1 3123 0.0601
1×400 53 2.6 2 32.4 3981 0.047
1×500 53 2.8 2.1 36.1 5014 0.0366
1×630 53 2.8 2.2 40 6392 0.0283
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight Max. D.C .Resistance of Conductor at 20℃
No. × mm² No. mm mm mm kg/km Ω/km
2×1.5 1 0.8 1.8 9.8 117 12.1
2×2.5 1 0.8 1.8 10.6 145 7.41
2×4 1 1 1.8 12.4 203 4.61
2×6 1 1 1.8 13.4 257 3.08
2×10 6 1 1.8 15.9 373 1.83
2×16 6 1 1.8 17.5 508 1.15
2×25 6 1.2 1.8 20.7 740 0.727
2×35 6 1.2 1.8 22.7 954 0.524
2×50 6 1.4 1.8 26.1 1264 0.387
2×70 12 1.4 1.9 29.6 1701 0.268
2×95 15 1.6 2 34.2 2311 0.193
2×120 18 1.6 2.1 37.2 2841 0.153
2×150 18 1.8 2.2 41.2 3486 0.124
2×185 30 2 2.4 45.6 4351 0.0991
2×240 34 2.2 2.6 51.4 5613 0.0754
2×300 34 2.4 2.7 56.8 6961 0.0601
2×400 53 2.6 3 63.8 8896 0.047
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight Max. D.C .Resistance of Conductor at 20℃
No. × mm² No. mm mm mm kg/km Ω/km
3×1.5 1 0.8 1.8 10.3 141 12.1
3×2.5 1 0.8 1.8 11.2 179 7.41
3×4 1 1 1.8 13 256 4.61
3×6 1 1 1.8 14.1 330 3.08
3×10 6 1 1.8 16.9 487 1.83
3×16 6 1 1.8 18.6 679 1.15
3×25 6 1.2 1.8 22 1000 0.727
3X35 6 1.2 1.8 24.2 1304 0.524
3×50 6 1.4 1.8 27.9 1735 0.387
3×70 12 1.4 2 31.8 2383 0.268
3×95 15 1.6 2.1 36.8 3248 0.193
3×120 18 1.6 2.2 40 4005 0.153
3×150 18 1.8 2.3 44.3 4919 0.124
3×185 30 2 2.5 49 6147 0.0991
3×240 34 2.2 2.7 55.2 7942 0.0754
3×300 34 2.4 2.9 61.3 9896 0.0601
3×400 53 2.6 3.1 68.6 12621 0.047
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight Max. D.C .Resistance of Conductor at 20℃
No. × mm² No. mm mm mm kg/km Ω/km
4×1.5 1 0.8 1.8 11.1 170 12.1
4×2.5 1 0.8 1.8 12 218 7.41
4×4 1 1 1.8 14.1 317 4.61
4×6 1 1 1.8 15.4 413 3.08
4×10 6 1 1.8 18.4 615 1.83
4×16 6 1 1.8 20.4 866 1.15
4×25 6 1.2 1.8 24.2 1284 0.727
4×35 6 1.2 1.8 26.6 1682 0.524
4×50 6 1.4 1.9 31.3 2268 0.387
4×70 12 1.4 2.1 35.3 3110 0.268
4×95 15 1.6 2.2 40.8 4245 0.193
4×120 18 1.6 2.3 44.4 5239 0.153
4×150 18 1.8 2.5 49.4 6460 0.124
4×185 30 2 2.7 54.6 8072 0.0991
4×240 34 2.2 2.9 61.6 10431 0.0754
4×300 34 2.4 3.1 68.3 12998 0.0601
4×400 53 2.6 3.4 76.6 16617 0.047
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight Max. D.C .Resistance of Conductor at 20℃
No. × mm² No. mm mm mm kg/km Ω/km
5×1.5 1 0.8 1.8 11.9 200 12.1
5×2.5 1 0.8 1.8 13 259 7.41
5×4 1 1 1.8 15.3 381 4.61
5×6 1 1 1.8 16.7 499 3.08
5×10 6 1 1.8 20.1 749 1.83
5×16 6 1 1.8 22.3 1060 1.15
5×25 6 1.2 1.8 26.6 1577 0.727
5×35 6 1.2 1.9 29.8 2093 0.524
5×50 6 1.4 2 34.6 2811 0.387
5×70 12 1.4 2.2 39 3857 0.268
5×95 15 1.6 2.4 45.4 5288 0.193
5×120 18 1.6 2.5 49.3 6526 0.153
5×150 18 1.8 2.7 54.9 8044 0.124
5×185 30 2 2.9 60.7 10048 0.0991
5×240 34 2.2 3.1 68.4 12983 0.0754
5×300 34 2.4 3.3 75.8 16177 0.0601
5×400 53 2.6 3.7 85.2 20715 0.047
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight Max. D.C .Resistance of Conductor at 20℃
No. × mm² No. mm mm mm kg/km Ω/km
3×2.5+1×1.5 1/1 0.8/0.8 1.8 11.8 206 7.41/12.1
3×4+1×2.5 1/1 1.0/0.8 1.8 13.6 292 4.61/7.41
3×6+1×4 1/1 1.0/1.0 1.8 15.1 389 3.08/4.61
3×10+1×6 6/1 1.0/1.0 1.8 17.7 564 1.83/3.08
3×16+1×10 6/6 1.0/1.0 1.8 19.9 803 1.15/1.83
3×25+1×16 6/6 1.2/1.0 1.8 23.3 1177 0.727/1.15
3×35+1×16 6/6 1.2/1.0 1.8 25.1 1474 0.524/1.15
3×50+1×25 6/6 1.4/1.2 1.9 29.6 2023 0.387/0.727
3×70+1×35 12/6 1.4/1.2 2 33.2 2741 0.268/0.524
3×95+1×50 15/6 1.6/1.4 2.2 38.6 3750 0.193/0.387
3×120+1×70 18/12 1.6/1.4 2.3 42.2 4710 0.153/0.268
3×150+1×70 18/12 1.8/1.4 2.4 45.9 5606 0.124/0.268
3×185+1×95 30/15 2.0/1.6 2.6 51.2 7104 0.0991/0.193
3×240+1×120 34/18 2.2/1.6 2.8 57.4 9120 0.0754/0.153
3×300+1×150 34/18 2.4/1.8 3 63.7 11347 0.0601/0.124
3×400+1×185 53/30 2.6/2.0 3.2 71.1 14431 0.0470/0.0991
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight Max. D.C .Resistance of Conductor at 20℃
No. × mm² No. mm mm mm kg/km Ω/km
3×2.5+2×1.5 1/1 0.8/0.8 1.8 12.5 235 7.41/12.1
3×4+2×2.5 1/1 1.0/0.8 1.8 14.4 331 4.61/7.41
3×6+2×4 1/1 1.0/1.0 1.8 16.1 451 3.08/4.61
3×10+2×6 6/1 1.0/1.0 1.8 18.7 647 1.83/3.08
3×16+2×10 6/6 1.0/1.0 1.8 21.4 935 1.15/1.83
3×25+2×16 6/6 1.2/1.0 1.8 24.9 1366 0.727/1.15
3×35+2×16 6/6 1.2/1.0 1.8 26.5 1660 0.524/1.15
3×50+2×25 6/6 1.4/1.2 1.9 31.5 2310 0.387/0.727
3×70+2×35 12/6 1.4/1.2 2.1 35.4 3138 0.268/0.524
3×95+2×50 15/6 1.6/1.4 2.2 41 4266 0.193/0.387
3×120+2×70 18/12 1.6/1.4 2.4 45.3 5451 0.153/0.268
3×150+2×70 18/12 1.8/1.4 2.5 48.5 6341 0.124/0.268
3×185+2×95 30/15 2.0/1.6 2.7 54.5 8118 0.0991/0.193
3×240+2×120 34/18 2.2/1.6 2.9 60.8 10371 0.0754/0.153
3×300+2×150 34/18 2.4/1.8 3.1 67.5 12889 0.0601/0.124
3×400+2×185 53/30 2.6/2.0 3.3 75.2 16355 0.0470/0.0991
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight Max. D.C .Resistance of Conductor at 20℃
No. × mm² No. mm mm mm kg/km Ω/km
4×2.5+1×1.5 1/1 0.8/0.8 1.8 12.8 247 7.41/12.1
4×4+1×2.5 1/1 1.0/0.8 1.8 14.9 356 4.61/7.41
4×6+1×4 1/1 1.0/1.0 1.8 16.4 475 3.08/4.61
4×10+1×6 6/1 1.0/1.0 1.8 19.4 698 1.83/3.08
4×16+1×10 6/6 1.0/1.0 1.8 21.8 997 1.15/1.83
4×25+1×16 6/6 1.2/1.0 1.8 25.7 1471 0.727/1.15
4×35+1×16 6/6 1.2/1.0 1.8 27.9 1865 0.524/1.15
4×50+1×25 6/6 1.4/1.2 2 33.1 2567 0.387/0.727
4×70+1×35 12/6 1.4/1.2 2.1 37.1 3487 0.268/0.524
4×95+1×50 15/6 1.6/1.4 2.3 43.2 4775 0.193/0.387
4×120+1×70 18/12 1.6/1.4 2.4 47.2 5976 0.153/0.268
4×150+1×70 18/12 1.8/1.4 2.6 51.7 7188 0.124/0.268
4×185+1×95 30/15 2.0/1.6 2.8 57.6 9079 0.0991/0.193
4×240+1×120 34/18 2.2/1.6 3 64.6 11671 0.0754/0.153
4×300+1×150 34/18 2.4/1.8 3.2 71.6 14525 0.0601/0.124
4×400+1×185 53/30 2.6/2.0 3.5 80.2 18523 0.0470/0.0991
