NA2XH 0.6/1kV Single or Multicore unarmored cable
Single or Multicore XLPE insulatedLSHF sheathed unarmored cable with aluminum conductor
Application：
To be used for main power supply, In low voltage distribution power networks, industrial installations, in buildings and operation stations. fixed installation in the ground or in concrete, in the cable trenches or cable, ducts, indoor or outdoor areas, in dry or wet locations.
Standard:
- Cable design: IEC 60502-1
- Conductor: IEC 60228
- Flame retardant：IEC60332-3-24 Cat.C
- Smoke density: IEC 61034
- Halogen acid gas and PH: IEC60754

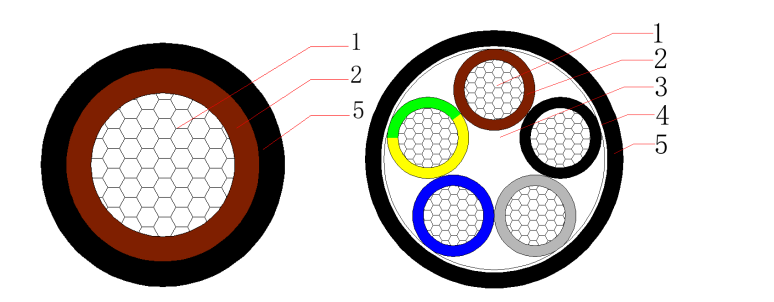

Construction
- 1. Conductor – Plain annealed class 2 stranded (compacted) aluminum
- 2. Insulation – Cross linked polyethylene (XLPE)
- 3. Filler – Non-hygroscopic material
- 4. Binder tape – Non-hygroscopic material tape
- 5. Outer sheath – Polyvinyl chloride compound (PVC)
Cross Section：
- 1C10~800mm2
- 2C10~2C400mm2
- 3C10~3C400mm2
- 4C10~4C400mm2
- 5C10~5C400mm2
- 2C+E10~2C+E400mm2
- 3C+E10~3C+E400mm2
- 4C+E10~4C+E400mm2
Temperature characteristics:
- Conductor operating temperature: -15℃~90℃
- Min. temperatrue laying condition: 0℃
- Conductor short-circuit operating temperature (5s): 250℃
Electrical Characteristics:
- Rated voltage: 0.6/1 (1.2) kV
- High voltage test: 3.5kV / 5min
Color:
- Insulation: According to customer requirements
- Outer sheath: Black or according to customer requirements
Minimum Bending Radius：
| Items | Single-core Cables | Three-core Cables | ||
| Unarmoured | Armoured | Unarmoured | Armoured | |
| Min. bending radius during installation | 20D | 15D | 15D | 12D |
| Min. bending radius close to connection box and termination (bending radius should be controlled carefully, if the molding guide plate is used) | 15D | 12D | 12D | 10D |
Applicable Standards
Optional
Technical Parameters
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | ohm/km |
| 1×2.5 | 1 | 0.7 | 1.4 | 6 | 41 | 12.1 |
| 1×4 | 1 | 0.7 | 1.4 | 6.4 | 49 | 7.41 |
| 1×6 | 1 | 0.7 | 1.4 | 6.9 | 59 | 4.61 |
| 1×10 | 6 | 0.7 | 1.4 | 8.2 | 77 | 3.08 |
| 1×16 | 6 | 0.7 | 1.4 | 9 | 101 | 1.91 |
| 1×25 | 6 | 0.9 | 1.4 | 10.6 | 143 | 1.2 |
| 1×35 | 6 | 0.9 | 1.4 | 11.6 | 177 | 0.868 |
| 1×50 | 6 | 1 | 1.4 | 13.1 | 224 | 0.641 |
| 1×70 | 12 | 1.1 | 1.4 | 14.8 | 300 | 0.443 |
| 1×95 | 15 | 1.1 | 1.5 | 16.8 | 394 | 0.32 |
| 1×120 | 15 | 1.2 | 1.5 | 18.4 | 476 | 0.253 |
| 1×150 | 15 | 1.4 | 1.6 | 20.5 | 587 | 0.206 |
| 1×185 | 30 | 1.6 | 1.6 | 22.5 | 717 | 0.164 |
| 1×240 | 30 | 1.7 | 1.7 | 25.2 | 918 | 0.125 |
| 1×300 | 30 | 1.8 | 1.8 | 27.8 | 1130 | 0.1 |
| 1×400 | 53 | 2 | 1.9 | 31.2 | 1431 | 0.0778 |
| 1×500 | 53 | 2.2 | 2 | 34.7 | 1794 | 0.0605 |
| 1×630 | 53 | 2.4 | 2.2 | 39.2 | 2292 | 0.0469 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | ohm/km |
| 2×2.5 | 1 | 0.7 | 1.8 | 10.2 | 103 | 12.1 |
| 2×4 | 1 | 0.7 | 1.8 | 11.2 | 124 | 7.41 |
| 2×6 | 1 | 0.7 | 1.8 | 12.2 | 150 | 4.61 |
| 2×10 | 6 | 0.7 | 1.8 | 14.7 | 199 | 3.08 |
| 2×16 | 6 | 0.7 | 1.8 | 16.3 | 263 | 1.91 |
| 2×25 | 6 | 0.9 | 1.8 | 19.5 | 372 | 1.2 |
| 2×35 | 6 | 0.9 | 1.8 | 21.5 | 461 | 0.868 |
| 2×50 | 6 | 1 | 1.8 | 24.5 | 582 | 0.641 |
| 2×70 | 12 | 1.1 | 1.8 | 27.9 | 754 | 0.443 |
| 2×95 | 15 | 1.1 | 2 | 32.2 | 1007 | 0.32 |
| 2×120 | 15 | 1.2 | 2.1 | 35.6 | 1224 | 0.253 |
| 2×150 | 15 | 1.4 | 2.2 | 39.6 | 1508 | 0.206 |
| 2×185 | 30 | 1.6 | 2.3 | 43.8 | 1855 | 0.164 |
| 2×240 | 30 | 1.7 | 2.5 | 49.2 | 2374 | 0.125 |
| 2×300 | 30 | 1.8 | 2.7 | 54.4 | 2919 | 0.1 |
| 2×400 | 53 | 2 | 2.9 | 61.2 | 3692 | 0.0778 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | ohm/km |
| 3×2.5 | 1 | 0.7 | 1.8 | 10.7 | 118 | 12.1 |
| 3×4 | 1 | 0.7 | 1.8 | 11.7 | 144 | 7.41 |
| 3×6 | 1 | 0.7 | 1.8 | 12.8 | 177 | 4.61 |
| 3×10 | 6 | 0.7 | 1.8 | 15.6 | 238 | 3.08 |
| 3×16 | 6 | 0.7 | 1.8 | 17.3 | 319 | 1.91 |
| 3×25 | 6 | 0.9 | 1.8 | 20.7 | 459 | 1.2 |
| 3X35 | 6 | 0.9 | 1.8 | 22.9 | 575 | 0.868 |
| 3×50 | 6 | 1 | 1.8 | 26.1 | 733 | 0.641 |
| 3×70 | 12 | 1.1 | 1.9 | 30.3 | 992 | 0.443 |
| 3×95 | 15 | 1.1 | 2 | 34.4 | 1297 | 0.32 |
| 3×120 | 15 | 1.2 | 2.1 | 38.1 | 1586 | 0.253 |
| 3×150 | 15 | 1.4 | 2.3 | 42.6 | 1973 | 0.206 |
| 3×185 | 30 | 1.6 | 2.4 | 47.1 | 2434 | 0.164 |
| 3×240 | 30 | 1.7 | 2.6 | 52.9 | 3123 | 0.125 |
| 3×300 | 30 | 1.8 | 2.8 | 58.5 | 3849 | 0.1 |
| 3×400 | 53 | 2 | 3.1 | 66 | 4908 | 0.0778 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | ohm/km |
| 4×2.5 | 1 | 0.7 | 1.8 | 11.5 | 137 | 12.1 |
| 4×4 | 1 | 0.7 | 1.8 | 12.7 | 170 | 7.41 |
| 4×6 | 1 | 0.7 | 1.8 | 13.9 | 211 | 4.61 |
| 4×10 | 6 | 0.7 | 1.8 | 17 | 287 | 3.08 |
| 4×16 | 6 | 0.7 | 1.8 | 18.9 | 390 | 1.91 |
| 4×25 | 6 | 0.9 | 1.8 | 22.8 | 567 | 1.2 |
| 4×35 | 6 | 0.9 | 1.8 | 25.2 | 715 | 0.868 |
| 4×50 | 6 | 1 | 1.9 | 29 | 929 | 0.641 |
| 4×70 | 12 | 1.1 | 2 | 33.6 | 1262 | 0.443 |
| 4×95 | 15 | 1.1 | 2.1 | 38.2 | 1654 | 0.32 |
| 4×120 | 15 | 1.2 | 2.3 | 42.5 | 2044 | 0.253 |
| 4×150 | 15 | 1.4 | 2.4 | 47.3 | 2517 | 0.206 |
| 4×185 | 30 | 1.6 | 2.6 | 52.5 | 3133 | 0.164 |
| 4×240 | 30 | 1.7 | 2.8 | 59 | 4021 | 0.125 |
| 4×300 | 30 | 1.8 | 3 | 65.2 | 4955 | 0.1 |
| 4×400 | 53 | 2 | 3.3 | 73.5 | 6316 | 0.0778 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | ohm/km |
| 5×2.5 | 1 | 0.7 | 1.8 | 12.4 | 159 | 12.1 |
| 5×4 | 1 | 0.7 | 1.8 | 13.7 | 198 | 7.41 |
| 5×6 | 1 | 0.7 | 1.8 | 15.1 | 249 | 4.61 |
| 5×10 | 6 | 0.7 | 1.8 | 18.5 | 340 | 3.08 |
| 5×16 | 6 | 0.7 | 1.8 | 20.6 | 466 | 1.91 |
| 5×25 | 6 | 0.9 | 1.8 | 25 | 682 | 1.2 |
| 5×35 | 6 | 0.9 | 1.8 | 27.7 | 865 | 0.868 |
| 5×50 | 6 | 1 | 2 | 32.4 | 1149 | 0.641 |
| 5×70 | 12 | 1.1 | 2.1 | 37.2 | 1550 | 0.443 |
| 5×95 | 15 | 1.1 | 2.3 | 42.5 | 2053 | 0.32 |
| 5×120 | 15 | 1.2 | 2.4 | 47 | 2513 | 0.253 |
| 5×150 | 15 | 1.4 | 2.6 | 52.5 | 3119 | 0.206 |
| 5×185 | 30 | 1.6 | 2.8 | 58.3 | 3879 | 0.164 |
| 5×240 | 30 | 1.7 | 3 | 65.5 | 4976 | 0.125 |
| 5×300 | 30 | 1.8 | 3.2 | 72.3 | 6131 | 0.1 |
| 5×400 | 53 | 2 | 3.6 | 81.8 | 7846 | 0.0778 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | ohm/km |
| 3×4+1×2.5 | 1/1 | 0.7/0.7 | 1.8 | 12.4 | 162 | 7.41/12.1 |
| 3×6+1×4 | 1/1 | 0.7/0.7 | 1.8 | 13.6 | 201 | 4.61/7.41 |
| 3×10+1×6 | 6/1 | 0.7/0.7 | 1.8 | 16.2 | 268 | 3.08/4.61 |
| 3×16+1×10 | 6/6 | 0.7/0.7 | 1.8 | 18.4 | 364 | 1.91/3.08 |
| 3×25+1×16 | 6/6 | 0.9/0.7 | 1.8 | 21.8 | 521 | 1.20/1.91 |
| 3×35+1×16 | 6/6 | 0.9/0.7 | 1.8 | 23.6 | 630 | 0.868/1.91 |
| 3×50+1×25 | 6/6 | 1.0/0.9 | 1.8 | 27.3 | 826 | 0.641/1.20 |
| 3×70+1×35 | 12/6 | 1.1/0.9 | 1.9 | 31.5 | 1111 | 0.443/0.868 |
| 3×95+1×50 | 15/6 | 1.1/1.0 | 2.1 | 36.1 | 1472 | 0.320/0.641 |
| 3×120+1×70 | 15/12 | 1.2/1.1 | 2.2 | 40.2 | 1838 | 0.253/0.443 |
| 3×150+1×70 | 15/12 | 1.4/1.1 | 2.3 | 43.9 | 2188 | 0.206/0.443 |
| 3×185+1×95 | 30/15 | 1.6/1.1 | 2.5 | 49 | 2751 | 0.164/0.320 |
| 3×240+1×120 | 30/15 | 1.7/1.2 | 2.7 | 54.9 | 3508 | 0.125/0.253 |
| 3×300+1×150 | 30/15 | 1.8/1.4 | 2.9 | 60.8 | 4332 | 0.100/0.206 |
| 3×400+1×185 | 53/30 | 2.0/1.6 | 3.1 | 68.2 | 5476 | 0.0778/0.164 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | ohm/km |
| 3×4+2×2.5 | 1/1 | 0.7/0.7 | 1.8 | 13.2 | 182 | 7.41/12.1 |
| 3×6+2×4 | 1/1 | 0.7/0.7 | 1.8 | 14.5 | 228 | 4.61/7.41 |
| 3×10+2×6 | 6/1 | 0.7/0.7 | 1.8 | 17.1 | 303 | 3.08/4.61 |
| 3×16+2×10 | 6/6 | 0.7/0.7 | 1.8 | 19.8 | 415 | 1.91/3.08 |
| 3×25+2×16 | 6/6 | 0.9/0.7 | 1.8 | 23.2 | 593 | 1.20/1.91 |
| 3×35+2×16 | 6/6 | 0.9/0.7 | 1.8 | 24.9 | 700 | 0.868/1.91 |
| 3×50+2×25 | 6/6 | 1.0/0.9 | 1.9 | 29.5 | 949 | 0.641/1.20 |
| 3×70+2×35 | 12/6 | 1.1/0.9 | 2 | 35.2 | 1266 | 0.443/0.868 |
| 3×95+2×50 | 15/6 | 1.1/1.0 | 2.2 | 38.5 | 1674 | 0.320/0.641 |
| 3×120+2×70 | 15/12 | 1.2/1.1 | 2.3 | 43.1 | 2122 | 0.253/0.443 |
| 3×150+2×70 | 15/12 | 1.4/1.1 | 2.4 | 46.4 | 2466 | 0.206/0.443 |
| 3×185+2×95 | 30/15 | 1.6/1.1 | 2.6 | 52 | 3121 | 0.164/0.320 |
| 3×240+2×120 | 30/15 | 1.7/1.2 | 2.8 | 58.1 | 3962 | 0.125/0.253 |
| 3×300+2×150 | 30/15 | 1.8/1.4 | 3 | 64.5 | 4896 | 0.100/0.206 |
| 3×400+2×185 | 53/30 | 2.0/1.6 | 3.2 | 72.2 | 6175 | 0.0778/0.164 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx.Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
| No. × mm² | No. | mm | mm | mm | kg/km | ohm/km |
| 4×4+1×2.5 | 1/1 | 0.7/0.7 | 1.8 | 13.4 | 190 | 7.41/12.1 |
| 4×6+1×4 | 1/1 | 0.7/0.7 | 1.8 | 14.8 | 238 | 4.61/7.41 |
| 4×10+1×6 | 6/1 | 0.7/0.7 | 1.8 | 17.8 | 322 | 3.08/4.61 |
| 4×16+1×10 | 6/6 | 0.7/0.7 | 1.8 | 20.2 | 441 | 1.91/3.08 |
| 4×25+1×16 | 6/6 | 0.9/0.7 | 1.8 | 24.1 | 638 | 1.20/1.91 |
| 4×35+1×16 | 6/6 | 0.9/0.7 | 1.8 | 26.3 | 782 | 0.868/1.91 |
| 4×50+1×25 | 6/6 | 1.0/0.9 | 1.9 | 30.9 | 1045 | 0.641/1.20 |
| 4×70+1×35 | 12/6 | 1.1/0.9 | 2.1 | 35.5 | 1414 | 0.443/0.868 |
| 4×95+1×50 | 15/6 | 1.1/1.0 | 2.2 | 40.4 | 1853 | 0.320/0.641 |
| 4×120+1×70 | 15/12 | 1.2/1.1 | 2.4 | 45.1 | 2326 | 0.253/0.443 |
| 4×150+1×70 | 15/12 | 1.4/1.1 | 2.5 | 49.4 | 2788 | 0.206/0.443 |
| 4×185+1×95 | 30/15 | 1.6/1.1 | 2.7 | 55.1 | 3495 | 0.164/0.320 |
| 4×240+1×120 | 30/15 | 1.7/1.2 | 2.9 | 61.8 | 4463 | 0.125/0.253 |
| 4×300+1×150 | 30/15 | 1.8/1.4 | 3.1 | 68.4 | 5507 | 0.100/0.206 |
| 4×400+1×185 | 53/30 | 2.0/1.6 | 3.4 | 77 | 7000 | 0.0778/0.164 |
FAQ
The NA2XH 0.6/1kV is a low-voltage power cable featuring aluminum conductors (Al), cross-linked polyethylene (XLPE) insulation, and a Low Smoke Zero Halogen (LSZH) outer jacket. Rated for up to 1000V, it is highly favored for indoor, outdoor, and underground installations in public or high-density buildings where fire safety and low smoke emission are critical.
However, a key limitation of PVC cable properties is their thermal and chemical resistance. PVC cable temperature rating tyA 0.6/1kV cable is a low-voltage electrical power cable. The rating indicates that the cable is designed to safely handle up to 0.6 kV (600 volts) between the conductor and the earth/ground, and up to 1 kV (1000 volts) between two phase conductors.
The NA2XH cable is commonly specified for power distribution applications across a number of industries: in EV & e-Mobility, Renewable Energy (including wind turbines and solar farms), Battery Storage, and Data Centres to name a few.
Suited to internal installations where space constraints are not a key factor, the LSZH sheathing offers superior performance in the event of fire, emitting none of the toxic gases and dense smoke of PVC and other materials.
PVC vs XLPE for insulating cable: What’s the difference?
However, if a higher conductor temperature is required, causing the cable to rise above 70°C, then the cable chosen for this application should be insulated with XLPE.
This is because PVC has a maximum working temperature of 70°C which is exactly what is needed for standing building cables, whilst XLPE has a maximum working temperature of 90°C. Cables that are insulated with XLPE can run a higher current in the conductors.
The cables have Class 1 solid or Class 2 stranded Aluminium circular cores, with sectoral shaped conductors on larger cross-sectional conductor sizes. There is also variants of 3 cores plus reduced earth.
Cables are available as standard as NA2XH-J with green/yellow earth, but can be specified as NA2XH-O (without green/yellow) on request.
Further information is available on the technical datasheet below, and additional support with specification is available by contacting the team.
Usually, the lifetime for XLPE is expected to be between 40 and 60 years at 90 °C rated operating temperature [14]. In this study, the estimated cable lifetime is 7–30 years at a rated operating temperature of 95–105 °C. Table 6 summaries the findings of cable lifetime in years for XLPE materials A and B.
