Application
To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations, fixed installed in air, directly buried in the ground or in ducts.
Construction:
- 1. Conductor -class 2 compacted aluminum
- 2. Conductor screen – Semi-conductive compound
- 3. Insulation – Cross linked polyethylene (XLPE)
- 4. Insulation screen – Semi-conductive compound
- 5. Semi-conductive nylon tape
- 6. Metallic screen – Plain annealed copper wire,reinforced with a copper tape
- 7. PP rope filler
- 8. Binder tape – Non-hygroscopic material tape
- 9. Outer sheath – Polyvinyl chloride compound (PVC)

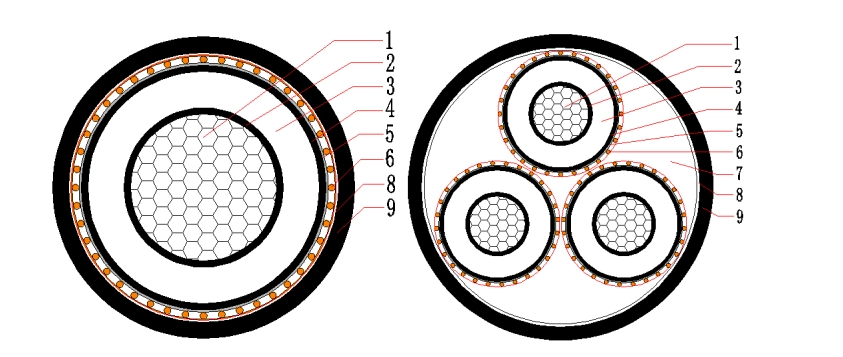

Drawing
Cross Section：
- 1 core; 16~800mm2
- 3 core; 16~400mm2
Characteristics
Voltage Rating Uo/U (Um)
3.6/6(7.2)kV ,6/10(12)kV, 12/20(24)kV, 18/30(36)kV
Temperature characteristics:
Conductor operating temperature: -15℃~90℃
Min. temperatrue laying condition: 0℃
Conductor emergency operating temperature: 105℃
Conductor short-circuit operating temperature (5s): 250℃
Electrical Characteristics:
Rated voltage: 3.6/6(7.2) kV~18/30(36)kV
AC High voltage test: 3.5U0 for 5min
Partial Discharge at 1.73 U0: 10PC or better
Color:
Core identification: Nature or according to the customer’s request
Outer sheath: Black or according to customer requirements
Applicable Standards
Optional
FAQ
NA2XSY is single-core aluminium conductor medium voltage power cable complying with VDE 0276-620, HD 620 S2 and IEC 60502-2.
Cable code definition:
• NA = Aluminium conductor
• 2X = XLPE cross-linked polyethylene insulation
• S = Copper wire metallic screen with counter helix
• Y = PVC outer sheath
Structure (from inside outward): Class 2 stranded aluminium conductor → conductive conductor screen → XLPE insulation → strippable insulation screen → copper wire screen + reverse spiral binding tape → PVC outer sheath.
Common voltage ratings: 6/10(12)kV, 12/20(24)kV, 18/30(36)kV.
The fundamental difference is conductor material:
N2XSY: Copper conductor; higher current carrying capacity, smaller outer diameter under same cross-section, higher raw material cost.
NA2XSY: Aluminium conductor; lighter weight, significantly lower cable cost, but larger cross-section is required to achieve equivalent conductivity.
Selection suggestion: Choose NA2XSY for large-scale municipal power distribution, industrial medium voltage networks, long-distance underground transmission projects with strict cost control.
Yes, NA2XSY permits direct burial under standard specifications. Minimum burial depth ≥0.6m; minimum 0.8m under roads.
Temperature parameters:
• Maximum continuous operating conductor temperature: 90°C
• Short-circuit conductor temperature (≤5 seconds): 250°C
• Minimum installation laying temperature: ≥0°C.
