Application
To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations, fixed installed in air, directly buried in the ground or in ducts.

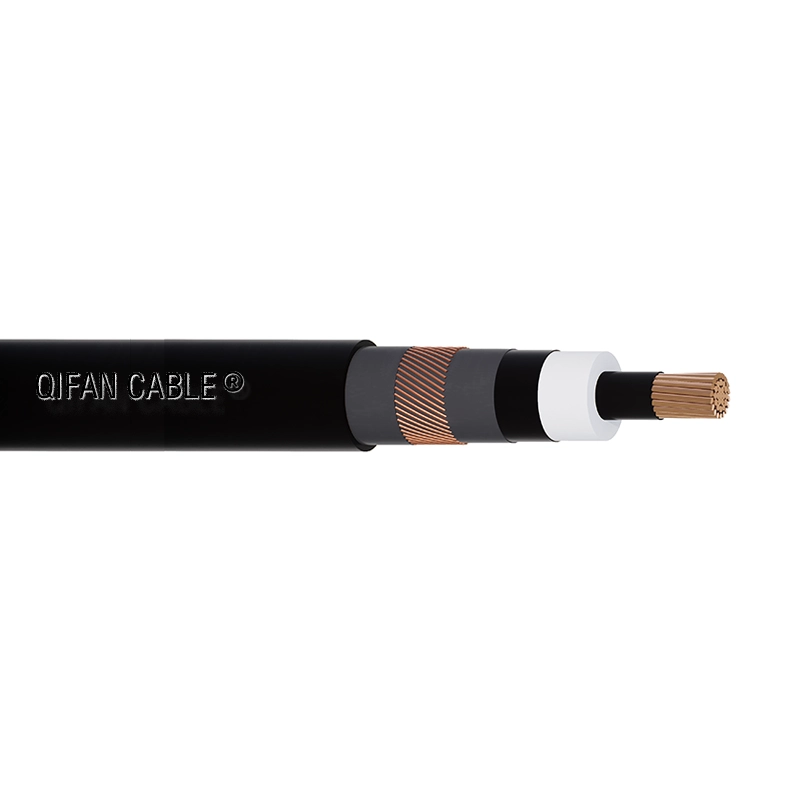

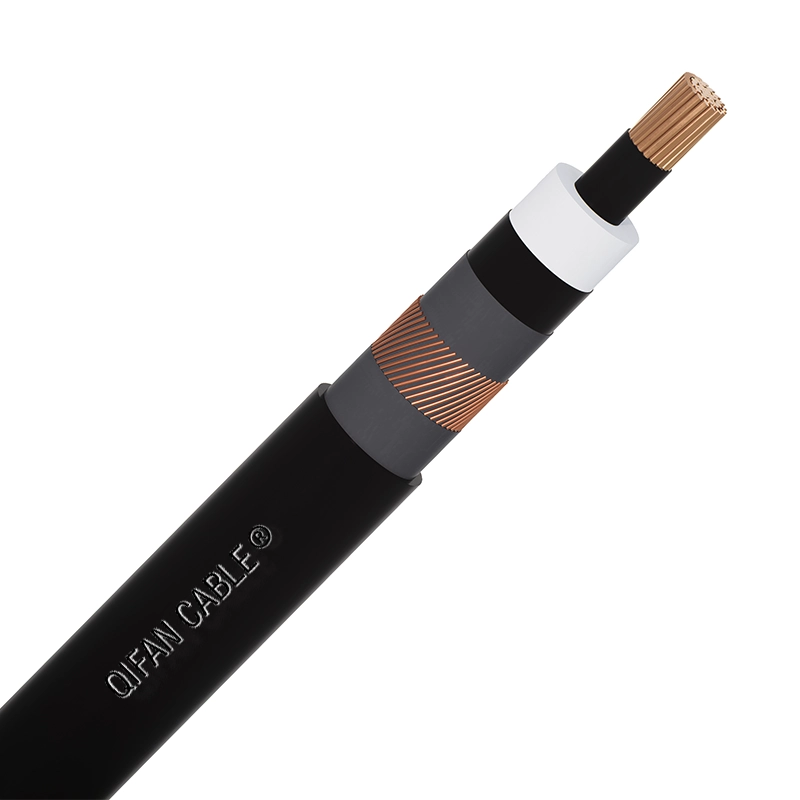

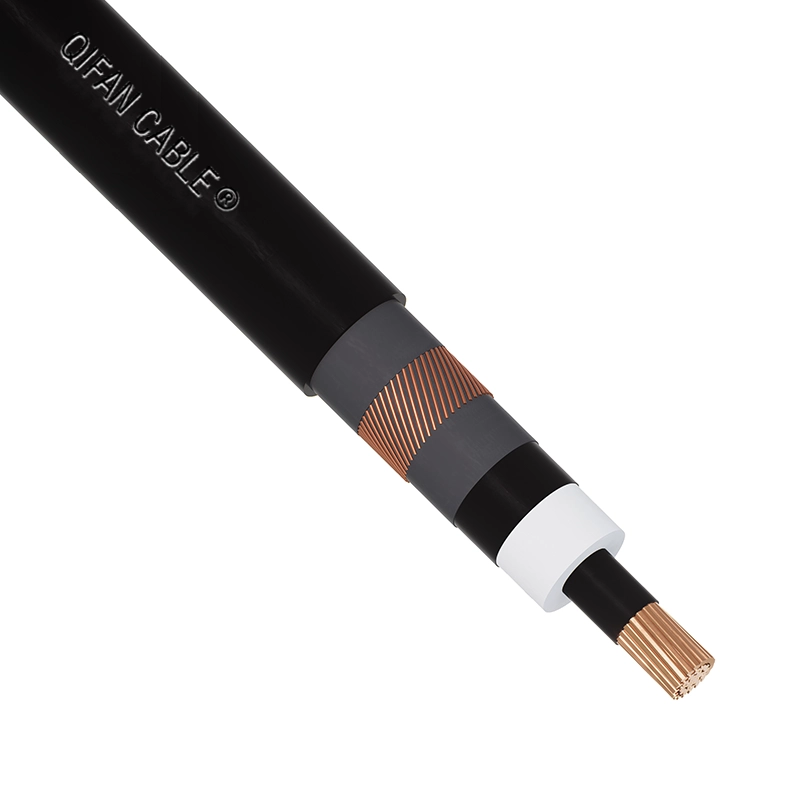

Construction:
- 1. Conductor – Plain annealed class 2 compacted copper
- 2. Conductor screen – Semi-conductive compound
- 3. Insulation – Cross linked polyethylene (XLPE)
- 4. Insulation screen – Semi-conductive compound
- 5. Semi-conductive nylon tape
- 6. Metallic screen – Plain annealed copper wire,reinforced with a copper tape
- 7. PP rope filler
- 8. Binder tape – Non-hygroscopic material tape
- 9. Outer sheath – Polyvinyl chloride compound (PVC)

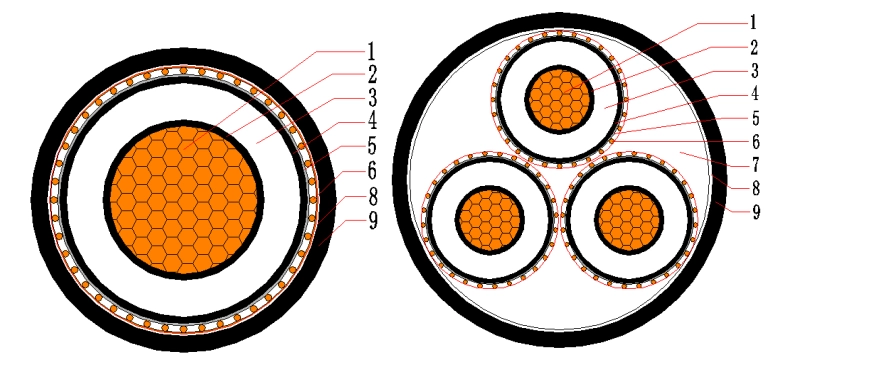

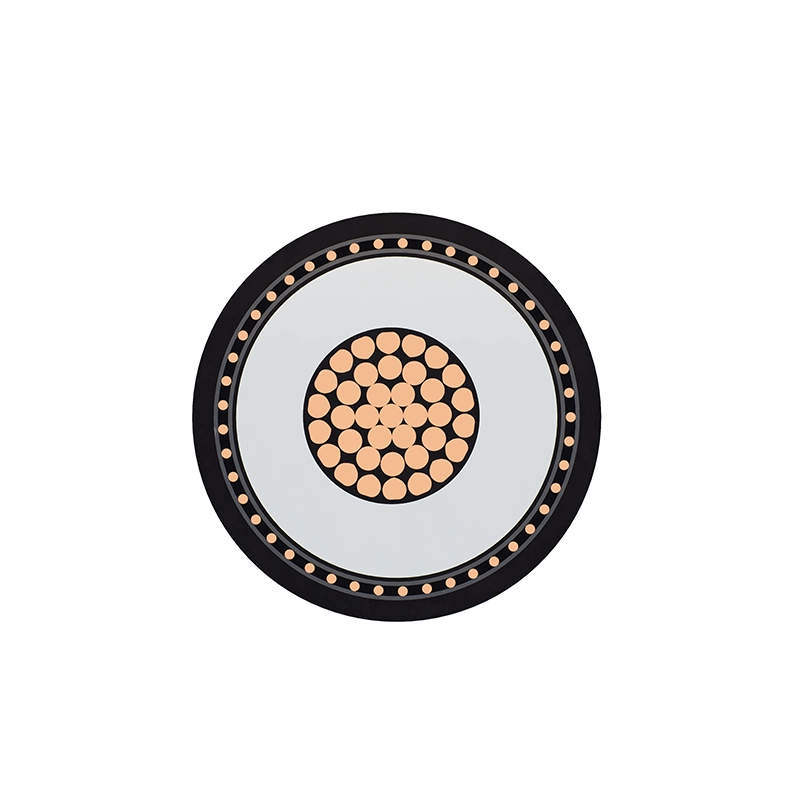

Drawing
Cross Section：
- 1 core; 16~800mm2
- 3 core; 16~400mm2
Characteristics
Voltage Rating Uo/U (Um)
3.6/6(7.2)kV ,6/10(12)kV, 12/20(24)kV, 18/30(36)kV
Temperature characteristics:
Conductor operating temperature: -15℃~90℃
Min. temperatrue laying condition: 0℃
Conductor emergency operating temperature: 105℃
Conductor short-circuit operating temperature (5s): 250℃
Electrical Characteristics:
Rated voltage: 3.6/6(7.2) kV~18/30(36)kV
AC High voltage test: 3.5U0 for 5min
Partial Discharge at 1.73 U0: 10PC or better
Color:
Core identification: Nature or according to the customer’s request
Outer sheath: Black or according to customer requirements
Applicable Standards
Optional
FAQ
N2XSY is a single-core medium voltage copper power cable complying with VDE 0276-620, HD 620 S2 & IEC 60502-2.
Code definition:
N = Copper conductor
2X = XLPE cross-linked polyethylene insulation
S = Copper wire metallic screen
Y = PVC outer sheath
Standard structure from inside out: Class 2 stranded copper conductor → conductive conductor screen → XLPE insulation → strippable insulation screen → copper wire screen with counter helix → PVC outer sheath.
Common voltage ratings: 3.6/6kV , 6/10kV, 12/20kV, 18/30kV.
he core difference lies in the outer sheath material, which determines installation limits:
N2XSY: Outer sheath = PVC. Limited UV resistance; outdoor exposure requires sunlight shielding. Suitable for direct burial, ducts, indoor tunnels, cable trays.
N2XS2Y: Outer sheath = HDPE (Polyethylene). Excellent UV resistance, better water & chemical resistance, can be used for open-air outdoor laying without extra UV protection.
Both share identical copper conductor, XLPE insulation and copper screen structure. N2XS2Y costs slightly higher than N2XSY.
Yes, N2XSY permits direct burial under standard specifications. Minimum burial depth ≥0.6m; minimum 0.8m under roads.
Temperature parameters:
• Maximum continuous operating conductor temperature: 90°C
• Short-circuit conductor temperature (≤5 seconds): 250°C
• Minimum installation laying temperature: ≥0°C.
