H1Z2Z2-K AC 1.0/1.0kV (DC 1.5kV) XLPO insulation XLPO sheath PV cable
Application：
H1Z2Z2-K cable is suitable for the series connection between PV modules and modules, the parallel connection between groups and between groups and DC distribution box (combiner box), and the connection between DC distribution box and inverter. Ac photovoltaic cable is suitable for the connection between inverter to step-up transformer, the connection between the step-up transformer to power distribution equipment, power distribution equipment to the power grid or the connection between the users.
Standard:
- Cable design: EN50618

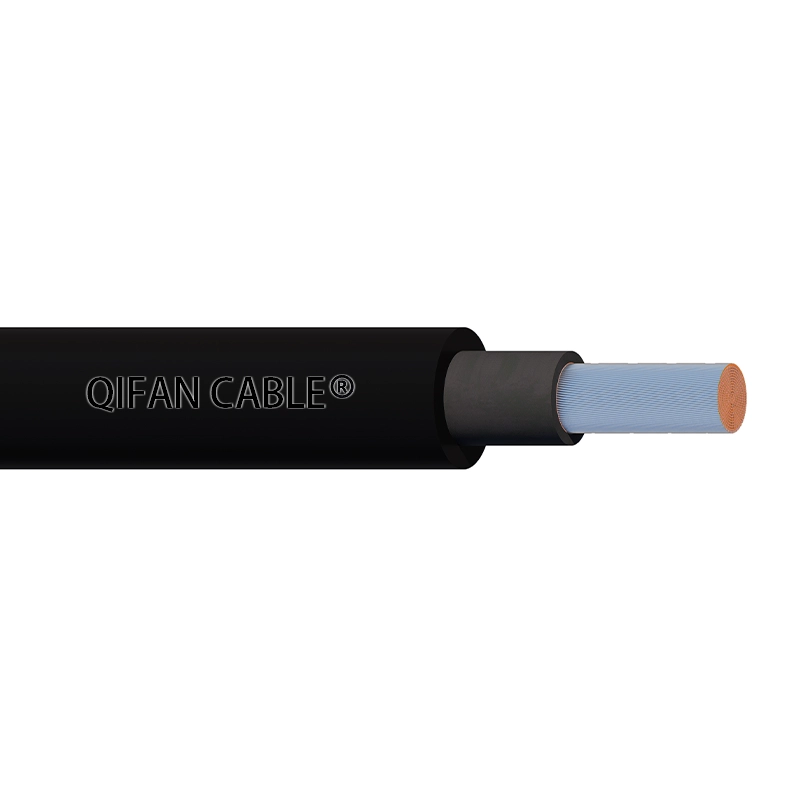

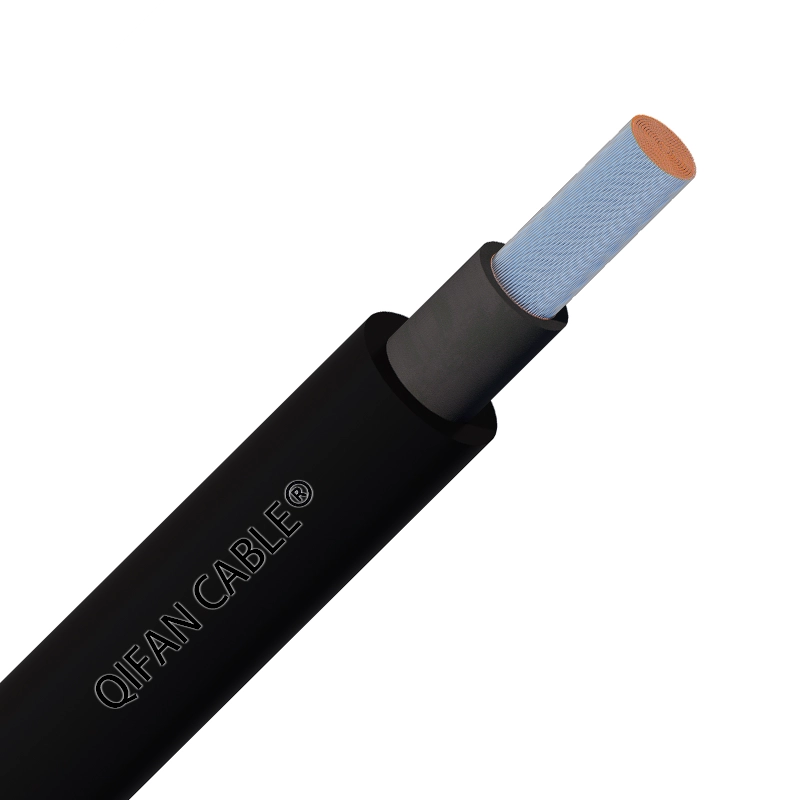

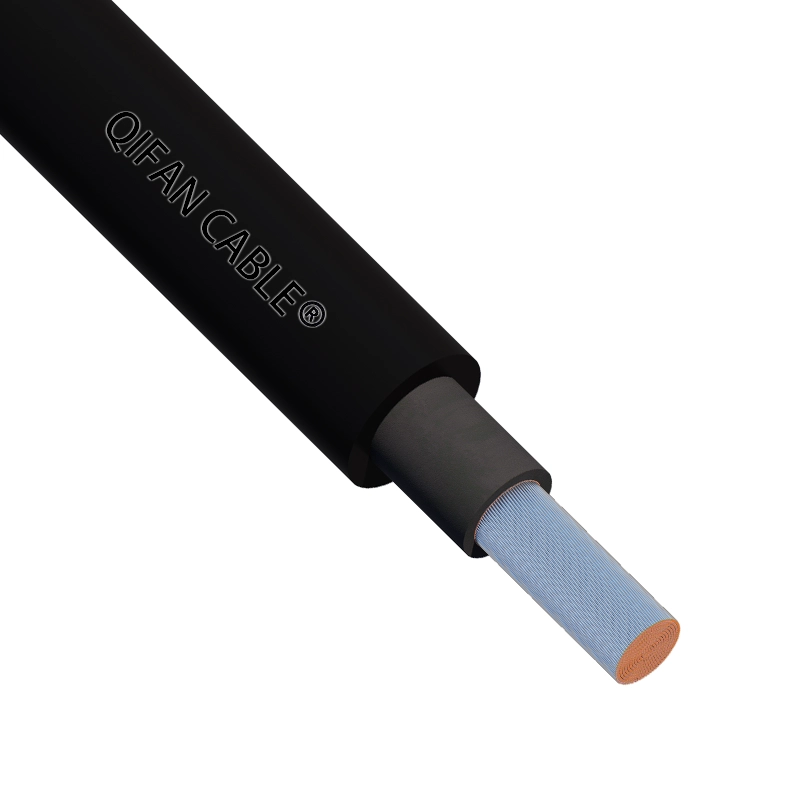

Products Construction

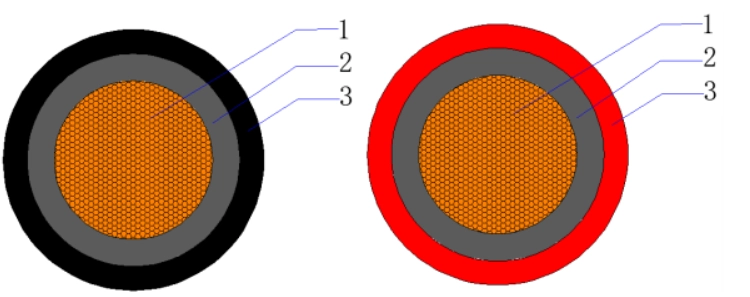

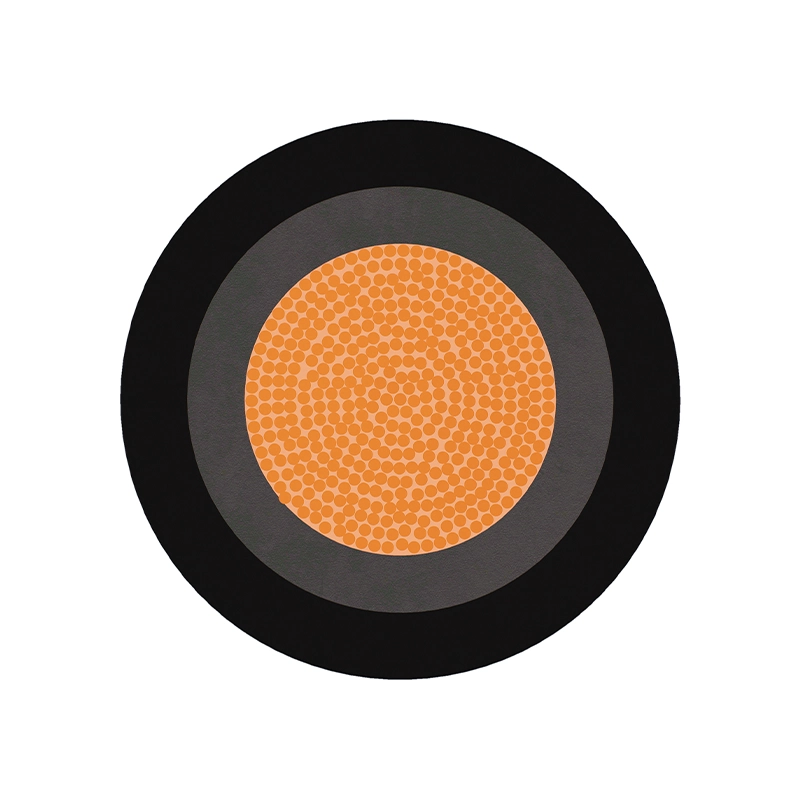

- Conductor – Flexible tinned annealed class 5 copper
- Insulation – Cross-linked polyolefins (XLPO)
- Sheath – Cross-linked polyolefins (XLPO)
Cross Section：
- 1C1.5~240mm2
Temperature characteristics:
- Maximum operating temperature of conductor：+90℃
- For a maximum of 20 000 hours a max. conductor temperature of 120 °C
- Ambient temperature：-40℃~+90℃
- Cable laying temperature：≥-25℃
Electrical Characteristics:
- Rated voltage: AC 1.0/1.0kV (DC 1.5kV)
- High voltage test: 6.5kV / 5min
Color:
- Insulation: Black
- Sheath：Black or Red
Technical Specification
| Size mm2 | Max. Diameter of single wire in conductor (mm) | Insulation Thickness mm | Outer-sheath Thickness mm | Overall Diameter mm | Max. DC resistance at 20C (Ω/km) |
| 1X1.5 | 0.26 | 0.7 | 0.8 | 4.6 | 13.7 |
| 1X2.5 | 0.26 | 0.7 | 0.8 | 5.0 | 8.21 |
| 1X4.0 | 0.31 | 0.7 | 0.8 | 5.6 | 5.09 |
| 1X6.0 | 0.31 | 0.7 | 0.8 | 6.3 | 3.39 |
| 1X10 | 0.41 | 0.7 | 0.8 | 7.4 | 1.95 |
| 1X16 | 0.41 | 0.7 | 0.9 | 8.6 | 1.24 |
| 1X25 | 0.41 | 0.9 | 1.0 | 11.1 | 0.795 |
| 1X35 | 0.41 | 0.9 | 1.1 | 13.0 | 0.565 |
| 1X50 | 0.41 | 1.0 | 1.2 | 15.1 | 0.393 |
| 1X70 | 0.51 | 1.1 | 1.2 | 17.2 | 0.277 |
| 1X95 | 0.51 | 1.1 | 1.3 | 18.6 | 0.210 |
| 1X120 | 0.51 | 1.2 | 1.3 | 20.6 | 0.164 |
| 1X150 | 0.51 | 1.4 | 1.4 | 23.4 | 0.132 |
| 1X185 | 0.51 | 1.6 | 1.6 | 25.5 | 0.108 |
| 1X240 | 0.51 | 1.7 | 1.7 | 28.7 | 0.0817 |
