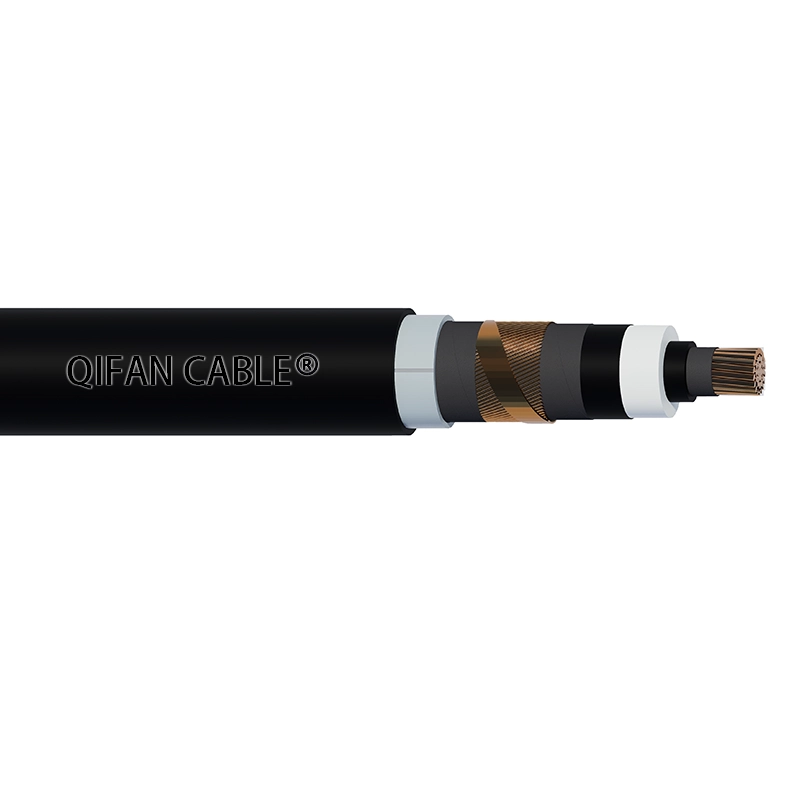

36/66kV CU/XLPE/WBT/CWS/WBT/AL-PET/HDPE OR CU/XLPE/WBT/CAS/PVC high voltage cable
XLPE insulated copper wire screen or corrugated aluminum sheath high voltage cable with copper conductor
Application：
This product is suitable for AC 50Hz lines with a rated voltage not exceeding 38/66kV, lines that have general waterproof and cold resistance requirements and certain insulation requirements for the outer sheath, and is used for power transmission and distribution.
Standard:
- Cable design: IEC 60840
- Conductor: IEC 60228

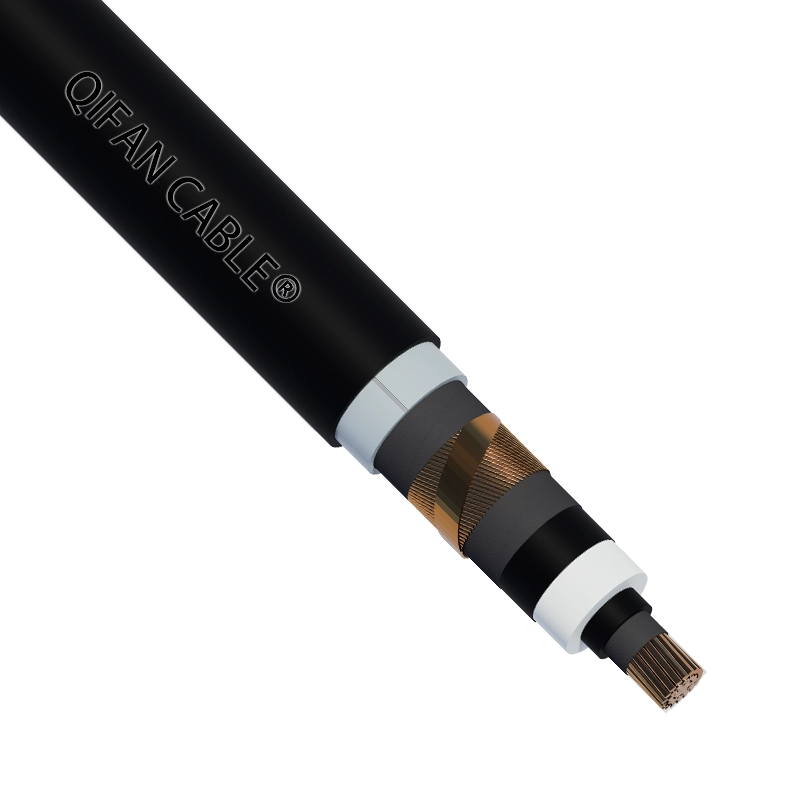

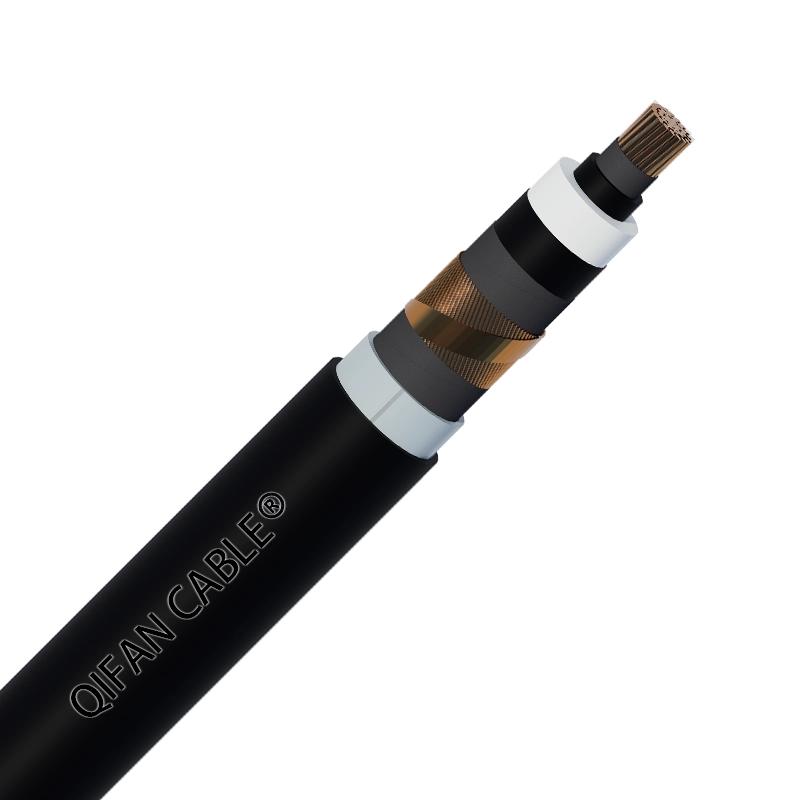

Products Construction

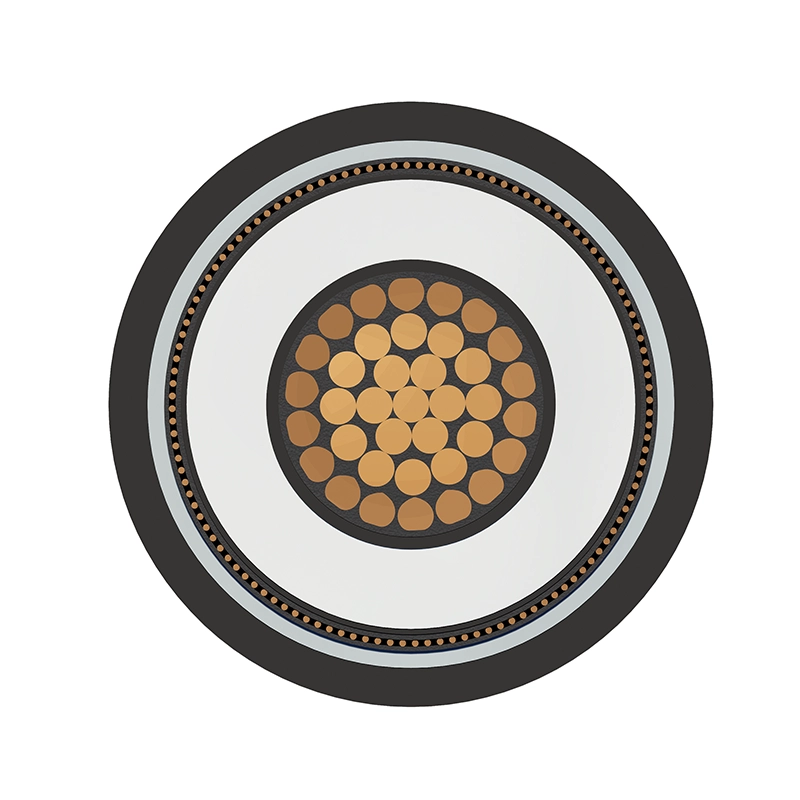

- Conductor – Plain annealed class 2 circular compacted conductor or segment copper conductor or Aluminum Class 2 Conductor
- Binder tape – Semi-conductive Tetoron tape
- Conductor screen – Semi-conductive compound
- Insulation – Cross linked polyethylene (XLPE)
- Insulation screen – Semi-conductive compound
- Watertight Bedding – Semi-conducting water swellable tape
- Metal screen – Copper wire
- Metal sheath(screen) – Weld corrugated aluminum sheath coated asphalt
- Watertight Bedding – Semi-conducting water swellable tape
- Radial direction watertight layer – Aluminum plastic composite tape
- Outer sheath – High density polyethylene (HDPE) coated graphite
- – Polyvinyl chloride compound (PVC) coated graphite
Cross Section：
- 1 core; 240~2000mm2
- Note：1. Below 800 square is a circular compact conductor
- 2. 800 square can be a circular compacted conductor or segment conductor
- 3. 800 square above is segment conductor
Temperature characteristics:
- Conductor operating temperature: -15℃~90℃
- Min. temperatrue laying condition: 0℃
- Conductor emergency operating temperature: 105℃
- Conductor short-circuit operating temperature (5s): 250℃
Electrical Characteristics:
- Rated voltage: 38/66(72.5) kV
- AC High voltage test: 2.5U0 for 30min
- Partial Discharge at 1.5 U0: 10PC or better
Color:
- Core identification: Nature or according to the customer’s request
- Outer sheath: Black or according to customer requirements
Applicable Standards
Optional
Technical Parameters
YJV / YJY 38/66kV Copper Core XLPE Insulated Copper-Wire Screened Power Cable
| Nominal cross section (mm²) | Conductor form | Diameter (mm) | Nominal insulation thickness (mm) | Insulation outer diameter (mm) | Copper-wire screen section (mm) | Nominal sheath thickness (mm) | Nominal cable outer diameter (mm) | Approx. mass (kg/km) – YJV | Approx. mass (kg/km) – YJY | DC resistance at 20℃ (Ω/km) | Capacitance at 20℃ (μF/km) |
| 1×95 | Circular compact conductor | 11.6 | 13.0 | 40.4 | 50 | 4.0 | 55.6 | 3632 | 3302 | 0.1930 | 0.117 |
| 1×120 | Circular compact conductor | 13.0 | 13.0 | 41.8 | 50 | 4.0 | 57.0 | 3951 | 3611 | 0.1530 | 0.125 |
| 1×150 | Circular compact conductor | 14.4 | 13.0 | 43.2 | 50 | 4.0 | 58.4 | 4313 | 3965 | 0.1240 | 0.133 |
| 1×185 | Circular compact conductor | 16.2 | 13.0 | 45.0 | 50 | 4.0 | 60.2 | 4748 | 4388 | 0.0991 | 0.142 |
| 1×240 | Circular compact conductor | 18.4 | 12.0 | 45.2 | 50 | 4.0 | 60.4 | 5185 | 4804 | 0.0754 | 0.164 |
| 1×300 | Circular compact conductor | 20.6 | 12.0 | 47.4 | 50 | 4.0 | 62.6 | 5860 | 5485 | 0.0601 | 0.177 |
| 1×400 | Circular compact conductor | 23.4 | 12.0 | 50.2 | 50 | 4.0 | 65.4 | 6791 | 6397 | 0.0470 | 0.197 |
| 1×500 | Circular compact conductor | 26.6 | 12.0 | 53.4 | 50 | 4.0 | 68.6 | 7960 | 7547 | 0.0336 | 0.218 |
| 1×630 | Circular compact conductor | 30.0 | 12.0 | 56.8 | 50 | 4.0 | 72.0 | 9401 | 8966 | 0.0283 | 0.237 |
| 1×800 | Circular compact conductor | 34.0 | 12.0 | 60.8 | 50 | 4.0 | 76.0 | 11210 | 10749 | 0.0221 | 0.247 |
| 1×800 | Segmented conductor | 35.0 | 12.0 | 63.1 | 50 | 4.0 | 78.3 | 11469 | 10993 | 0.0221 | 0.268 |
| 1×1000 | Segmented conductor | 39.0 | 12.0 | 67.1 | 50 | 4.5 | 83.3 | 13750 | 13182 | 0.0176 | 0.290 |
| 1×1200 | Segmented conductor | 42.6 | 12.0 | 70.7 | 50 | 5.0 | 87.9 | 15853 | 15190 | 0.0151 | 0.307 |
| 1×1400 | Segmented conductor | 45.2 | 12.0 | 73.3 | 50 | 5.0 | 90.5 | 17822 | 17137 | 0.0129 | 0.324 |
| 1×1600 | Segmented conductor | 48.5 | 12.0 | 76.6 | 50 | 5.0 | 93.8 | 19753 | 19042 | 0.0113 | 0.339 |
| 1×1800 | Segmented conductor | 50.8 | 12.0 | 78.9 | 50 | 4.5 | 95.1 | 21654 | 21001 | 0.0101 | 0.354 |
| 1×2000 | Segmented conductor | 54.0 | 12.0 | 82.1 | 50 | 5.0 | 99.3 | 23889 | 23134 | 0.0090 | 0.372 |
| 1×2200 | Segmented conductor | 57.4 | 12.0 | 85.5 | 50 | 5.0 | 102.7 | 25916 | 25134 | 0.0083 | 0.391 |
| 1×2500 | Segmented conductor | 61.2 | 12.0 | 89.3 | 50 | 5.0 | 106.5 | 28861 | 28049 | 0.0072 | 0.411 |
FAQ
The cable standard is IEC 60840 (can also be customized as needed), the conductor standard is IEC 60228.
Yes, because the cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight.
Conductor – Plain annealed class 2 circular compacted conductor or segment copper conductor or Aluminum Class 2 Conductor
Binder tape – Semi-conductive Tetoron tape
Conductor screen – Semi-conductive compound
Insulation – Cross linked polyethylene (XLPE)
Insulation screen – Semi-conductive compound
Watertight Bedding – Semi-conducting water swellable tape
Metal screen – Copper wire
Metal sheath(screen) – Weld corrugated aluminum sheath coated asphalt
Watertight Bedding – Semi-conducting water swellable tape
Radial direction watertight layer – Aluminum plastic composite tape
Outer sheath – High density polyethylene (HDPE) coated graphite
– Polyvinyl chloride compound (PVC) coated graphite
There are 36/66kV,64/110kV,76/132kV,87/150kV&127/220kV.We can do the voltage up to 500kV.
Why does this matter?
Even though system voltage and Um are the same, cables are not interchangeable. Earthing and fault duration dictate insulation requirements.
What are the consequences of incorrect selection?
Insulation failure, reduced cable life, partial discharge damage, catastrophic failure during faults.
